LTC6906

PRODUCTION

Micropower, 10kHz to 1MHz Resistor Set Oscillator in SOT-23

Analog Devices LTC6906 Product Info

10 February 2026 7

Features

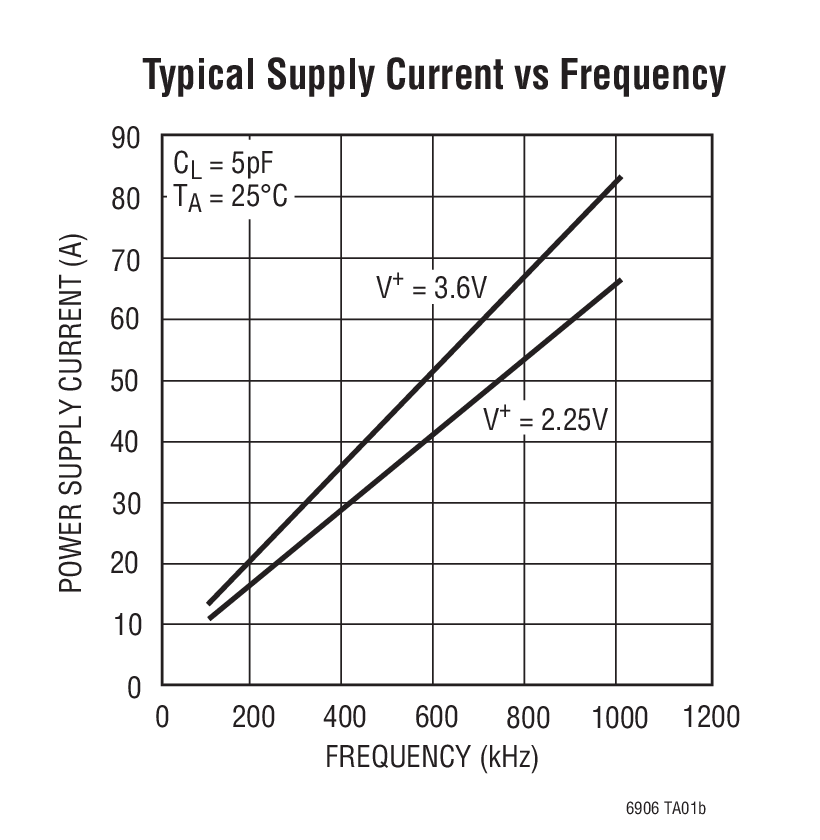

Supply Current: 12μA at 100kHz
<0.65% Frequency Accuracy (from 0°C to 70°C)
Frequency Range: 10kHz to 1MHz

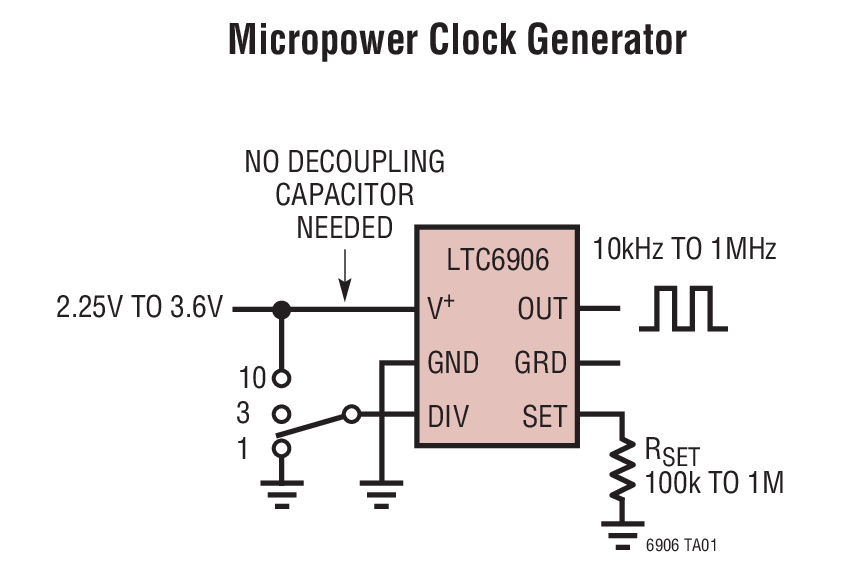

One Resistor Sets the Oscillator Frequency
Single Supply: 2.25V to 5.5V
–40°C to 125°C Operating Temperature Range

No Decoupling Capacitor Needed
Start-Up Time Under 200μs at 1MHz
First Cycle After Power-Up is Accurate
150Ω CMOS Output Driver
Low Profile (1mm) SOT-23 (ThinSOT™) Package

Part details & applications

The LTC6906 is a precision programmable oscillator that is versatile, compact and easy-to-use. Micropower operation benefits portable and battery-powered equipment. At 100kHz, the LTC6906 consumes 12µA on a 3.3V supply.

A single resistor programs the oscillator frequency over a 10:1 range with better than 0.5% initial accuracy. The output frequency can be divided by 1, 3 or 10 to span a 100:1 total frequency range, 10kHz to 1MHz.

No decoupling capacitor is needed in most cases, yielding an extremely compact solution occupying less than 20mm². Contact LTC Marketing for a version of the part with a shutdown feature or lower frequency operation.

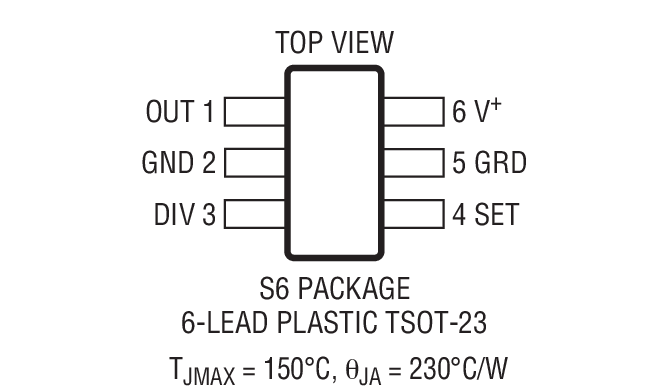

The LTC6906 is available in the 6-lead SOT-23 (ThinSOT) package.

APPLICATIONS

Low Cost Precision Programmable Oscillator
Rugged, Compact Micropower Replacement for Crystal and Ceramic Oscillators
High Shock and Vibration Environments
Portable and Battery-Powered Equipment
PDAs and Cellular Phones
