Analog Devices MAX33077E Product Info

• Integrated Protection Increases Robustness
• ±65V Fault-Tolerant Quad Receiver Inputs
• ±25kV ESD (Human Body Model)
• ±25V Common-Mode Range
• True Fail-Safe Receiver Prevents False Transition on Receiver Input Short or Open
• -40°C to +125°C Operating Temperature Range
• Increased Flexibility Simplifies Design
• Data Rate up to 20Mbps
• Allows up to 128 Receivers on the Bus
• Operates with +3.3V to +5V Supply Rail
• Industrial Standard Compatible for Easy Upgrades
• 16-Pin SOIC and QSOP Packages
• Cost-Effective Upgrade to Industry Standard MAX3093E/MAX3094E and MAX3095/MAX3096

The MAX33076E/MAX33078E are 20Mbps robust quad channel RS-485/RS-422 receivers with extended ±25V input common-mode operating range (CMR), ±65V fault tolerant inputs, and ±25kV ESD for harsh electrical environments. Both devices operate with a +3.3V or +5V supply rail.

These devices feature an extended ±25V CMR, which ensures that the MAX33076E/MAX33078E reliably receive data when the ground planes between two nodes have large differences or when interference may couple onto the bus from motors or other electrical noise sources. The ±65V fault-tolerant A and B inputs ensure the device is protected when data lines are shorted to external power supplies. The ±25kV ESD tolerance provides added protection on the receiver inputs from ESD strikes during production or in the field.

The MAX33076E/MAX33078E feature true fail-safe circuitry where the receiver output is set high when receiver inputs are open, shorted, or connected to a terminated transmission line with all drivers disabled.

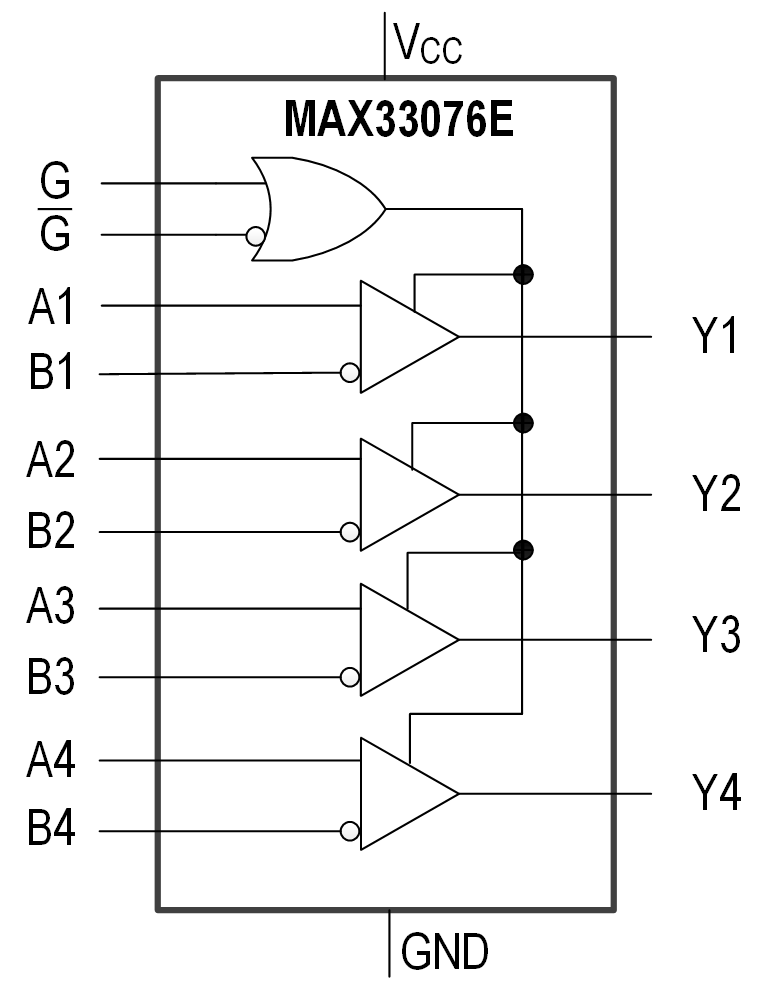

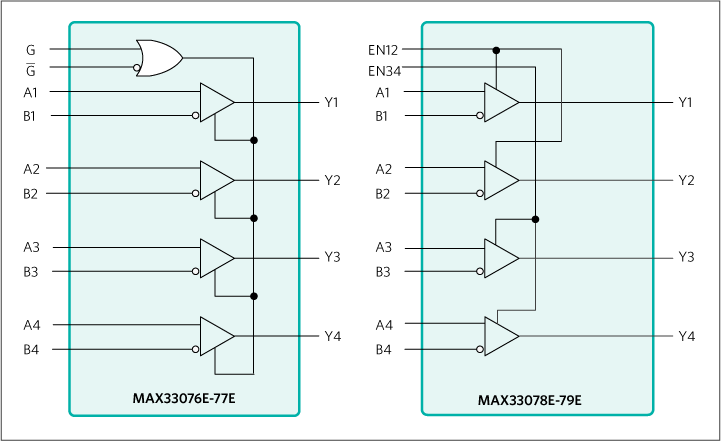

The receiver enable inputs (G and G) on the MAX33076E enable or disable all outputs. The MAX33076E is pin-compatible with the MAX3095/MAX3096 while offering improved performance and protection features.

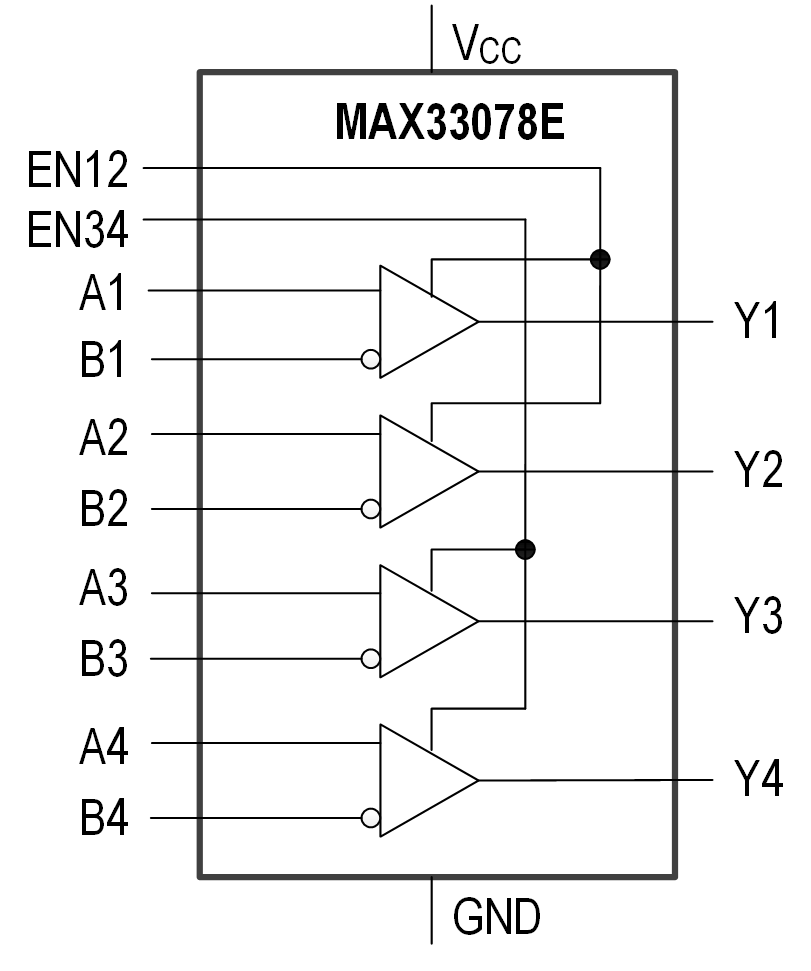

The EN12 and EN34 pins on the MAX33078E enable the Y1/Y2 and Y3/Y4 outputs, respectively. The MAX33078E is an upgrade to the MAX3093E/MAX3094E, offering improved performance and protection features.

The MAX33076E and MAX33078E are available in 16- pin SOIC and QSOP packages and are rated over the entire -40°C to +125°C operating temperature range.

Applications

• Motor Controllers
• Encoder Interfaces
• Servo Control Communication
