MAX3272

NOT RECOMMENDED FOR NEW DESIGNS

+3.3V, 2.5Gbps Low-Power Limiting Amplifiers

Analog Devices MAX3272 Product Info

10 February 2026 9

Features

Single +3.3V Power Supply

33mA Supply Current

5ps Deterministic Jitter

90ps Edge Speed

Output Squelch Function

Programmable Loss-of-Signal Function

CML Output Interface

20-Pin 4mm x 4mm QFN Package

Selectable Output Polarity

Part details & applications

The MAX3272/MAX3272A 2.5Gbps limiting amplifiers accept a wide range of input voltages and provide a constant-level output voltage with controlled edge speeds. Additional features include power detectors with programmable loss-of-signal (LOS) indication, an optional squelch function that mutes the data output signal when the input voltage falls below a programmable threshold, and an output polarity selector. These parts exhibit excellent jitter performance and have low power dissipation.

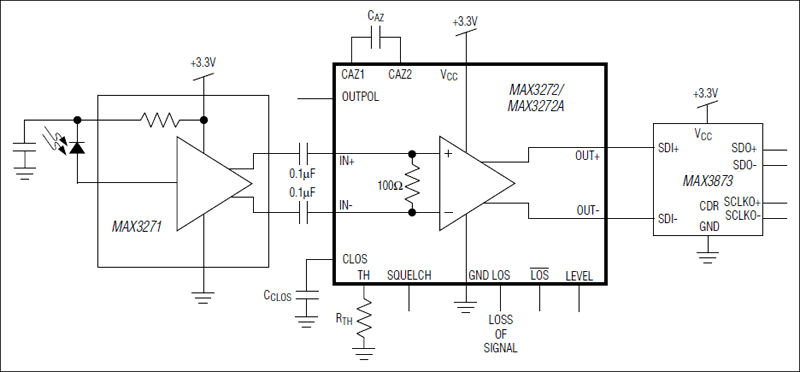

The MAX3272/MAX3272A feature current-mode logic (CML) data outputs that are tolerant of inductive connectors, and are available in a 4mm x 4mm QFN package or in die form (MAX3272 only). Along with the MAX3271, the MAX3272/MAX3272A are ideal for low-power, compact optical receivers.

Applications

2.5Gbps Optical Receivers
Fibre Channel Optical Receivers
Gigabit Ethernet Optical Receivers
SONET/SDH Receivers
System Interconnects
