Analog Devices MAX4895E Product Info

• ESD Protection on H1, V1, SDA1, SCL1, R, G, and B
  • ±15kV—Human Body Model
  • ±8kV—IEC 61000-4-2, Contact Discharge
• Low Quiescent Current, I_Q ≤ 5µA (max)
• Low 3pF (max) Capacitance (R, G, B Ports)
• DDC Level-Shifting Protection and Isolation
• Horizontal Sync, Vertical Sync Level Shifting/Buffering
• Input Compatible with V_L
• Output Full +5.0V TTL Compatible (per VESA)
• ±10mA Drive on Each H, V Terminal
• Space-Saving, Lead-Free, 16-Pin (3mm x 3mm) TQFN Package

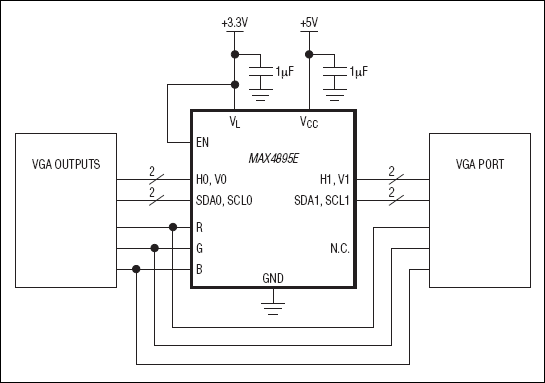

The MAX4895E integrates level-translating buffers and features R, G, B port protection for VGA signals.

The MAX4895E has H, V (horizontal, vertical) translating buffers that take low-level CMOS inputs from the graphics outputs to meet full +5.0V, TTL-compatible outputs. Each output can drive ±10mA and meet the VESA® specification. In addition, the device takes the +5.0V, direct digital control (DDC) signals and translates them to the lower level required by the graphics device. This level is set by the user by connecting V_L to the graphics output supply. The R, G, B terminals protect the graphics output pins against electrostatic discharge (ESD) events. All seven outputs have high-level ESD protection.

The MAX4895E is specified over the extended -40°C to +85°C temperature range, and is available in a 16-pin, 3mm x 3mm TQFN package.

Applications

• Desktops
• Graphics Cards
• Notebook Computers
• Servers
