MAX214

PRODUCTION

Programmable DTE/DCE, +5V RS-232 Transceiver

Analog Devices MAX214 Product Info

10 February 2026 6

Features

Eliminates Null Modem Cables
Programmable DTE or DCE Serial Port
1µF Charge-Pump Capacitors
116kbps Data Rate-Guaranteed
20µA Shutdown Mode
Receivers Active in Shutdown

Part details & applications

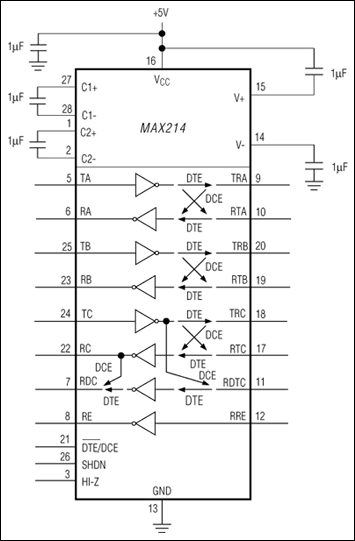

The MAX214 +5V RS-232 transceiver provides a complete, 8-line, software-configurable, DTE or DCE port RS-232 interface. Tx, Rx, RTS, CTS, DTR, DSR, DCD, and RI circuits can be configured as either Data Terminal Equipment (DTE) or Data Circuit-Terminating Equipment (DCE) using the DTE/DCE control pin. The MAX214 eliminates the need to swap cables when switching between DTE and DCE configurations.

Applications

AT-Compatible Desktop Computers
AT-Compatible Laptop Computers
Modems, Printers, and Other Peripherals
