Analog Devices MAX20416 Product Info

• Multiple Functions for Small Size
  • Dual Synchronous Buck Converters Up to 3A
    • Fixed Output Voltage from 0.8V to 3.8V
    • Resistor-Adjustable Output Voltage
  • 3.0V to 5.5V Operating Supply Voltage
  • 2.2MHz Operation
  • 93% ±3% Undervoltage Threshold
  • 107% ±3% Overvoltage Threshold
  • Individual EN Inputs and Active-Low RESET_ Outputs
• High Precision
  • ±1.5% Output-Voltage Accuracy
  • Good Load-Transient Performance for Buck Converters
• Robust for the Automotive Environment
  • Current-Mode, Forced-PWM, and Skip Operation
  • Overtemperature and Short-Circuit Protection
  • 4mm × 4mm 24-Pin TQFN
  • -40°C to +125°C Automotive Temperature Range

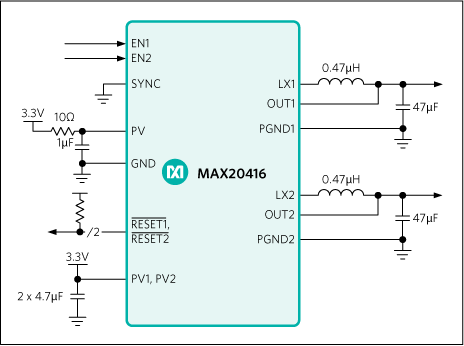

The MAX20416 is a high-efficiency, dual-output, low- voltage DC-DC converter. The synchronous step-down converters operate from a 3.0V to 5.5V input voltage range and provide a 0.8V to 3.8V output voltage range at up to 3A. The buck converters achieve ±1.5% output error over load, line, and temperature range.

The IC features a 2.2MHz fixed-frequency pulse-width modulation (PWM) mode for better noise immunity and load-transient response, and a pulse-frequency modulation mode (skip) for increased efficiency during light-load operation. The 2.2MHz frequency operation allows for use of all-ceramic capacitors, minimizing the external component footprint. Programmable spread-spectrum-frequency modulation minimizes radiated electromagnetic emissions. Integrated low R_DS(ON) switches improve efficiency at heavy loads and make the layout a much simpler task with respect to discrete solutions.

The IC is offered with factory-preset or resistor-adjustable output voltages. Additional features include soft-start ramping, overcurrent limiting, and overtemperature protection. The MAX20416 is available in a lead(Pb)-free, 24-pin TQFN package (see the Ordering Information/Selector Guide for available options).

Design Solution: How to Shrink Your ADAS ECUs: Wrap the Power Management Around the Signal Chain ›

Applications

• ADAS
• Infotainment
• SOC Power
