Analog Devices MAX1534 Product Info

• One Switching and Two Linear Regulators
• Switching Regulator
  • +4.5V to +24V Input Voltage Range
  • Over 95% Efficiency
  • Up to 500mA Output Current
  • Up to 200kHz Switching Frequency
  • Fixed 5V or Adjustable Output Voltage
  • Internal 0.5Ω PMOS Switch
  • 100% Maximum Duty Cycle for Low-Dropout Operation
• Two Low-Dropout Linear Regulators
  • Up to 160mA Output Current (Each)
  • 3.3V/Adj Output Voltage for OUT1
  • 1.8V/Adj Output Voltage for OUT2
• ±1.5% Accurate Output Voltage
• ±4% Accurate Shutdown for Low Battery Detection
• Thermal Shutdown Protection
• POK Output
• 1mW Typical Standby Power

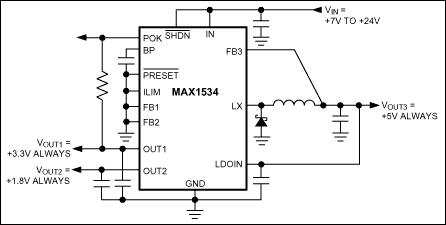

The MAX1534 is a high-efficiency, triple-output power supply for keep-alive (always on) voltage rails. The 500mA buck regulator with an internal current-limited 0.5Ω PMOS steps down the battery or wall adapter supply rail to a fixed 5V or an adjustable output voltage. Two integrated low-voltage linear regulators follow this output and provide two independent preset output voltages of 3.3V and 1.8V, or adjustable output voltages.

The buck regulator utilizes a peak current-limit, pulse-frequency modulation (PFM) architecture for highest light-load efficiency to conserve battery life. High switching frequencies (up to 200kHz) allow the use of tiny surface-mount inductors and output capacitors. Operation to 100% duty cycle minimizes dropout voltage (250mV at 500mA).

The low-dropout linear regulators use an internal P-channel metal-oxide (PMOS) pass transistor to minimize supply current and deliver up to 160mA each of continuous current.

The MAX1534 includes a power-OK (POK) signal that indicates all outputs are in regulation. The 4% accurate threshold of the active-low SHDN input permits its use as a low-battery detector.

The MAX1534 is available in a small 16-pin thin QFN (4mm x 4mm) package, occupying 33% less board space than discrete solutions.

Applications

• 2 to 4 Li+ Cell Battery-Powered Devices
• Handheld Devices
• Keep-Alive Supplies
• Notebook and Subnotebook Computers
• Standby Supplies
• Wake On LAN®
