MAX18000

RECOMMENDED FOR NEW DESIGNS

500mV to 5.5V Input nanoPower Boost Converter with Short-Circuit Protection

Analog Devices MAX18000 Product Info

10 February 2026 5

Features

0.5V to 5.5V Input Voltage (V_OUT > V_IN + 0.2V)
1.8V Minimum Start-Up Voltage
2.5V to 5.5V (In 100mV Steps) Output Voltage
3.6A Cycle-by-Cycle Inductor Current Limit
512nA I_Q Supply Current into the Output
True-Shutdown Mode
- 7nA Shutdown Current
- Output Disconnects from Input with no Forward or Reverse Current

Output Short-Circuit Protection
Thermal-Shutdown Protection
95% Peak Efficiency with 90% or Higher Efficiency for Load > 20μA

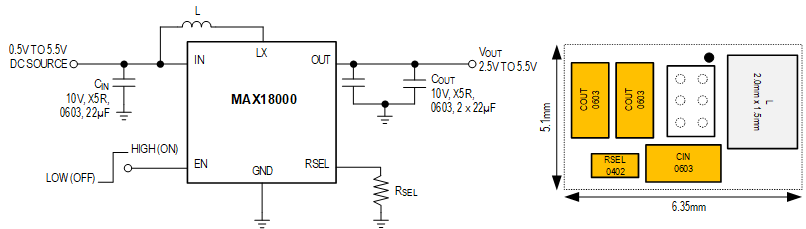

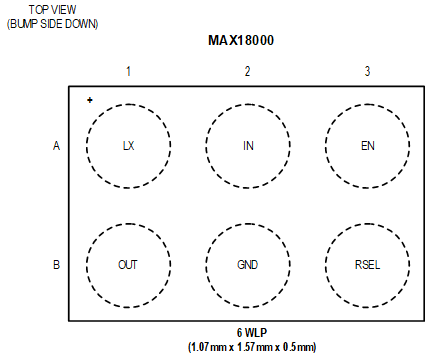

1.07mm x 1.57mm, 0.5mm Pitch 6-Bump WLP
-40°C to +125°C Operating Temperature Range

Part details & applications

The MAX18000 is a nanoPower boost converter with an input voltage range of 0.5V to 5.5V (V_OUT > V_IN + 0.2V) and a switching current limit of 3.6A. It features an ultralow quiescent current of 512nA which makes it ideal for battery-powered applications requiring a long standby time. The IC operates in nanoPower mode at low loads and transitions into skip and CCM modes of operation at higher load currents to ensure high efficiency over a wide current range.

The output voltage can be varied between 2.5V and 5.5V using a single R_SEL resistor.

The IC features a True Shutdown™ mode, which disconnects V_IN and V_OUT when the EN pin is pulled low. It also features short-circuit protection circuitry that limits the current to 700mA when V_OUT < 0.5V and automatically restarts the part when the fault is removed. The thermal-shutdown protection disables the part when the junction temperature crosses +165°C (typ).

The IC is available in 1.07mm x 1.57mm, 6-bump waferlevel package (WLP).

Applications

Wearable Applications
IoT Applications
Battery-Powered Applications
Portable Devices
Metering Applications
