Analog Devices MAX1470 Product Info

• Operates from a Single +3.0V to +3.6V Supply
• Built-In 53dB RF Image Rejection
• -115dBm Receive Sensitivity*
• 250µs Startup Time
• Low 5.5mA Operating Supply Current
• 1.25µA Low-Current Power-Down Mode for Efficient Power Cycling
• 250MHz to 500MHz Operating Band (Image Rejection Optimized at 315MHz)
• Integrated PLL with On-Board Voltage-Controlled Oscillator (VCO) and Loop Filter
• Selectable IF Bandwidth Through External Filter
• Complete Receive System from RF to Digital Data Out

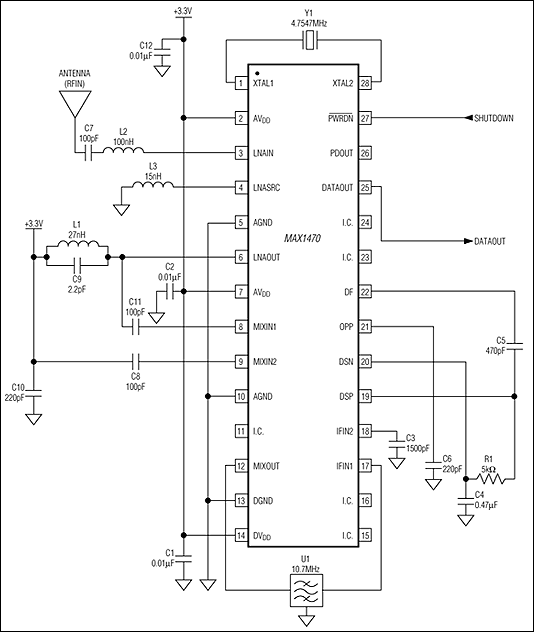

The MAX1470 is a fully integrated low-power CMOS superheterodyne receiver for use with amplitude-shift-keyed (ASK) data in the 315MHz band. With few required external components, and a low-current power-down mode, it is ideal for cost- and power-sensitive applications in consumer markets. The chip consists of a 315MHz low-noise amplifier (LNA), an image rejection mixer, a fully integrated 315MHz phase-lock-loop (PLL), a 10.7MHz IF limiting amplifier stage with received-signal-strength indicator (RSSI) and an ASK demodulator, and analog baseband data-recovery circuitry.

The MAX1470 is available in a 28-pin TSSOP package.

FAQs: MAX1470

Applications

• Garage Door Openers
• Medical Systems
• Remote Controls
• Remote Keyless Entry (RKE)
• Security Systems
• Toys
• Video Game Controllers
• Wireless Computer Peripherals
• Wireless Sensors
