Analog Devices LTM8057 Product Info

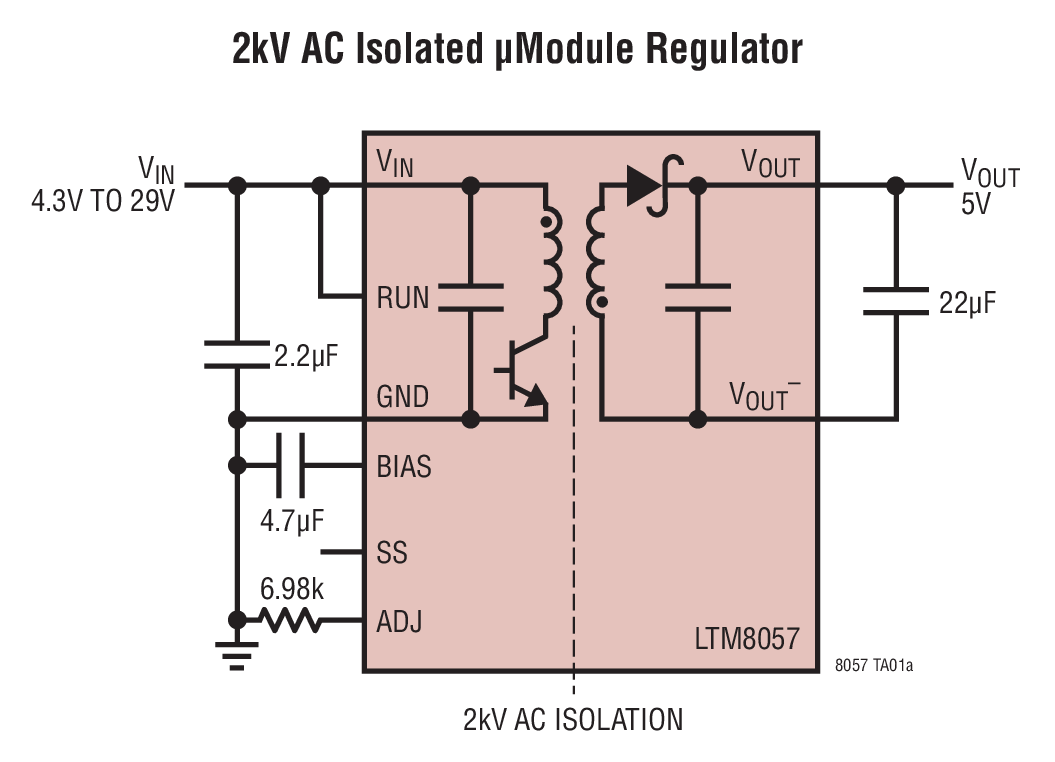

• 2kV AC Isolated μModule Converter (Tested at 3kVDC)
• UL60950 Recognized File 464570
• Wide Input Voltage Range: 3.1V to 31V

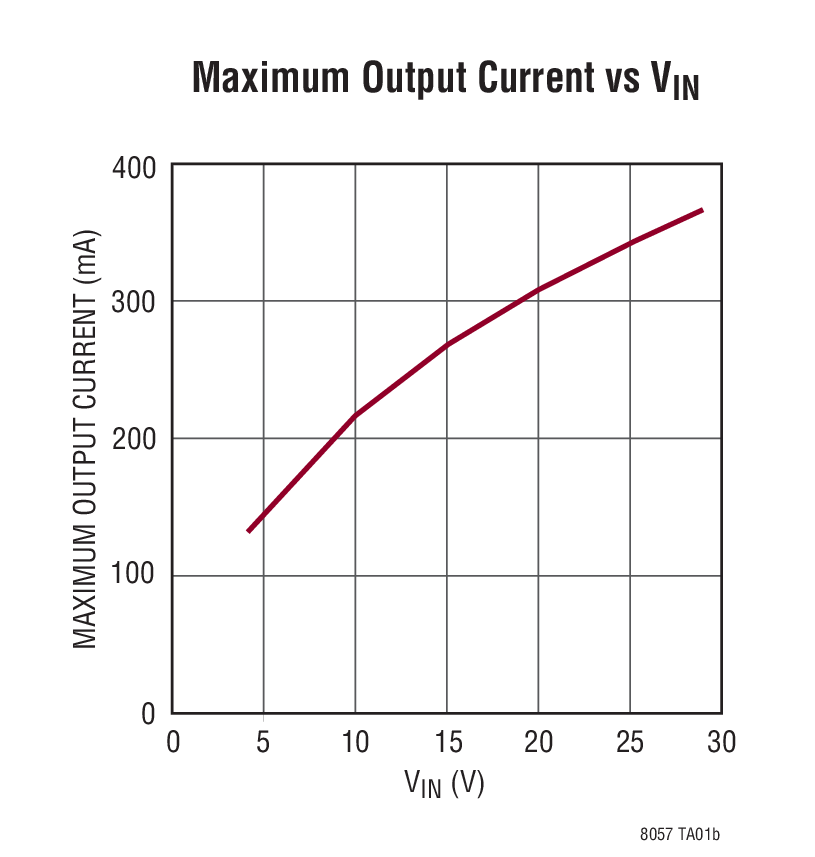

• Up to 440mA Output Current (V_IN = 24V, V_OUT1 = 2.5V) Output Adjustable from 2.5V to 12V
• Current Mode Control
• Programmable Soft-Start
• User Configurable Undervoltage Lockout

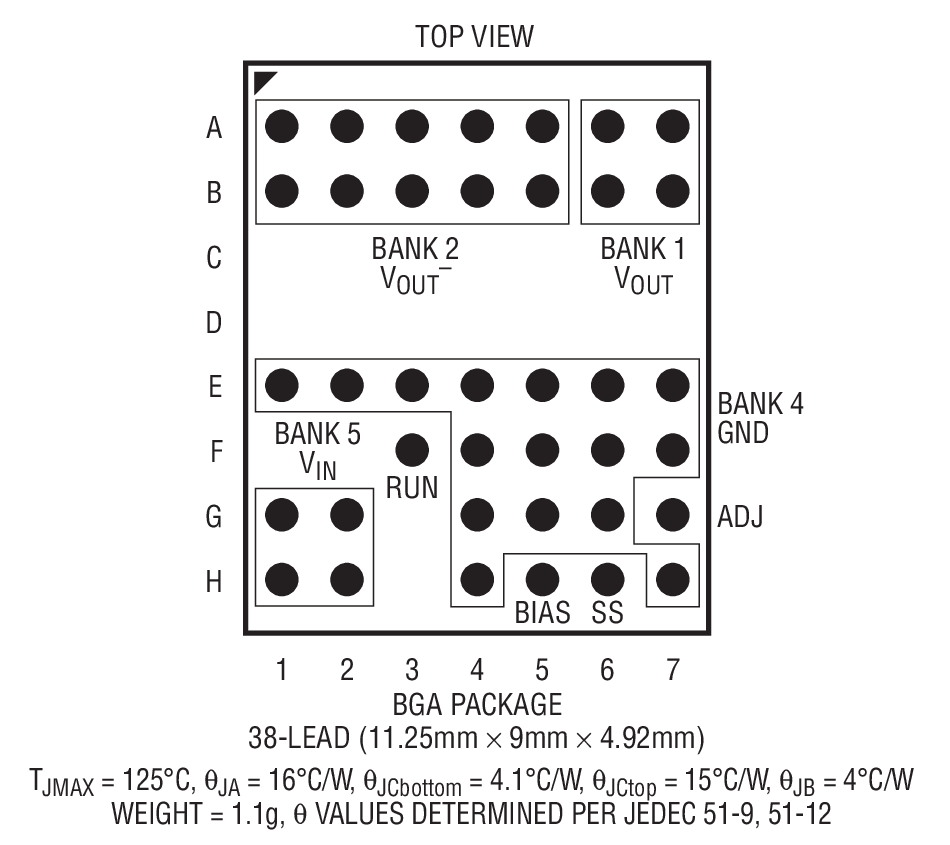

• Low Profile (9mm × 11.25mm × 4.92mm) BGA Package

The LTM8057 is a 2kV AC isolated flyback μModule^® (power module) DC/DC converter. Included in the package are the switching controller, power switches, transformer, and all support components. Operating over an input voltage range of 3.1V to 31V, the LTM8057 supports an output voltage range of 2.5V to 12V, set by a single resistor. Only output and input capacitors are needed to finish the design. Other components may be used to control the soft-start control and biasing.

The LTM8057 is packaged in a thermally enhanced, compact (9mm × 11.25mm × 4.92mm) overmolded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8057 is available with SnPb or RoHS compliant terminal finish.

Applications

• Industrial Sensors
• Industrial Switches
• Test and Measurement Equipment
