LTM4682

RECOMMENDED FOR NEW DESIGNS

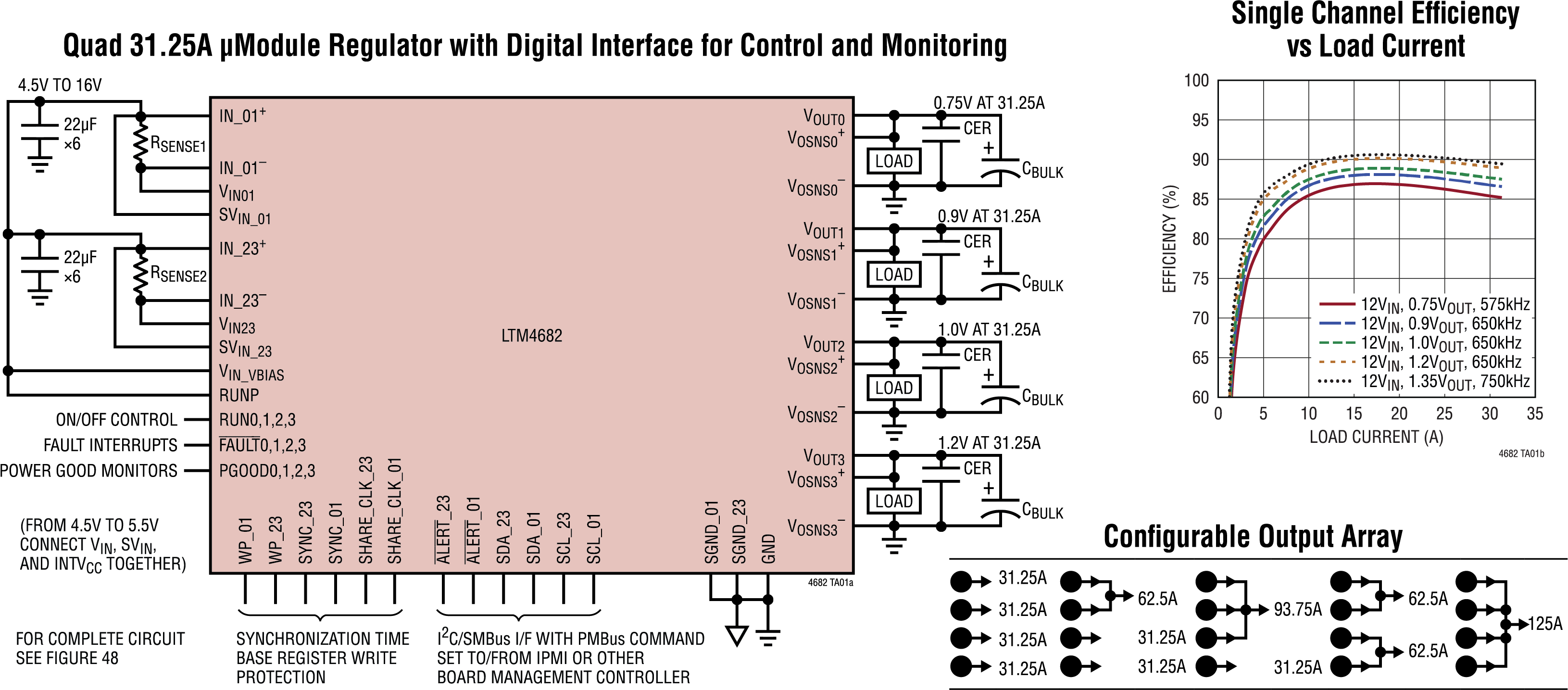

Low Profile Quad 31.25A or Single 125A μModule Regulator with Digital Power System Management

Analog Devices LTM4682 Product Info

10 February 2026 4

Features

Quad Digitally Adjustable Analog Loops with Digital Interface for Control and Monitoring
Wide Input Voltage Range: 4.5V to 16V
Output Voltage Range: 0.7V to 1.35V
±0.5% DC Output Accuracy at 0.75V
±4.5% Current Readback Accuracy: 0°C to 125°C
Optimized for Low Output Voltage Ranges
400kHz PMBus-Compliant I²C Serial Interface
Supports Telemetry Polling Rates Up to 125Hz
Integrated 16-Bit ΔΣ ADC
Parallel and Current Share Multiple Modules
15mm × 22mm × 5.71mm BGA Package

Readable Data

Input and Output Voltages, Currents, and Temperatures
Running Peak Values, Uptime, Faults and Warnings
Onboard EEPROM Fault Log Record

Writable Data and Configurable Parameters

Output Voltage, Voltage Sequencing and Margining
Digital Soft-Start/Stop Ramp, Program Analog Loop
OV/UV/OT, UVLO, Frequency and Phasing

Part details & applications

The LTM^®4682 is a quad 31.25A or single 125A step-down power μModule^® (power micromodule) DC/DC regulator featuring remote configurability and telemetry monitoring of power management parameters over PMBus. The LTM4682 is comprised of digitally programmable analog control loops, and is optimized for higher bandwidth and transient response.

The LTM4682’s 2-wire serial interface allows outputs to be margined, tuned, and ramped up and down at programmable slew rates with sequencing delay times. True input current sense, output currents, output voltages, output power, temperatures, uptime, and peak values are readable. Custom configuration of the EEPROM contents is not required. At start-up, output voltages, switching frequency, and channel phase angle assignments can be set by pin-strapping resistors. The LTpowerPlay^® graphical user interface (GUI), the DC1613A USB-to-PMBus converter, and evaluation kits are available.

The LTM4682 is offered in a 15mm × 22mm × 5.71mm BGA package available with an SnPb or a RoHS-compliant terminal finish.

APPLICATIONS

Multi-Rail Processor Power, Configurable Core Power
