LTM4654

RECOMMENDED FOR NEW DESIGNS

55V, 300W Source/Sink Hybrid Step-Down Non-Isolated μModule Bus Converter

Analog Devices LTM4654 Product Info

10 February 2026 5

Features

Input voltage range: 20V to 55V (57V abs. max.)
Wide output voltage range: 4.5V to 18V (V_OUT < V_IN/2);

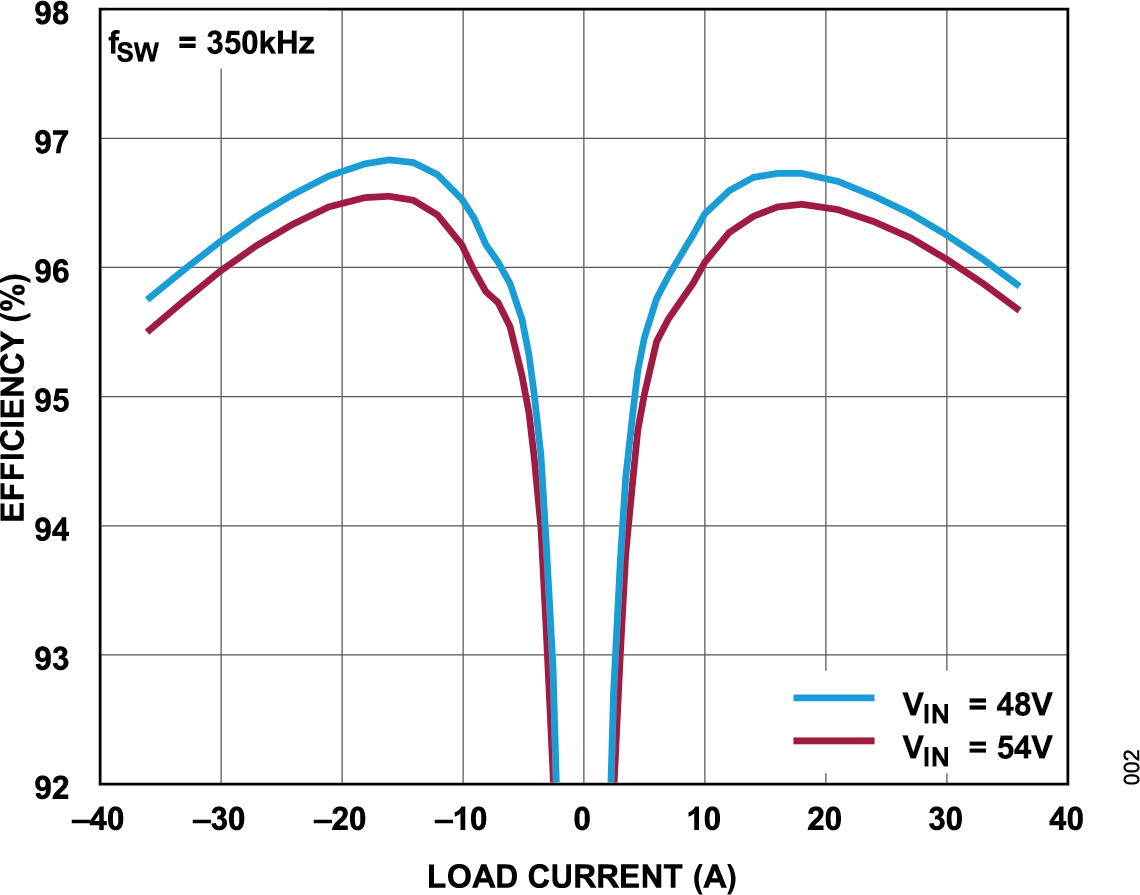

96.7% efficiency (9V at ±15A output, 48V_IN)
±3% maximum total DC output error
Up to 300W output power (source/sink)
Scalable for higher power applications
Fixed-frequency current mode control
Phase-lockable external synchronization from 200kHz to 1MHz;
Low startup inrush current with voltage-balancing of C_FLY and C_MID before the DC-to-DC switching action

Output voltage tracking with soft start
Short-circuit protection with adjustable retry-timer
Overcurrent and overtemperature protection
Onboard diode temperature monitor
Optional external reference input
Power good and FAULT output indicators

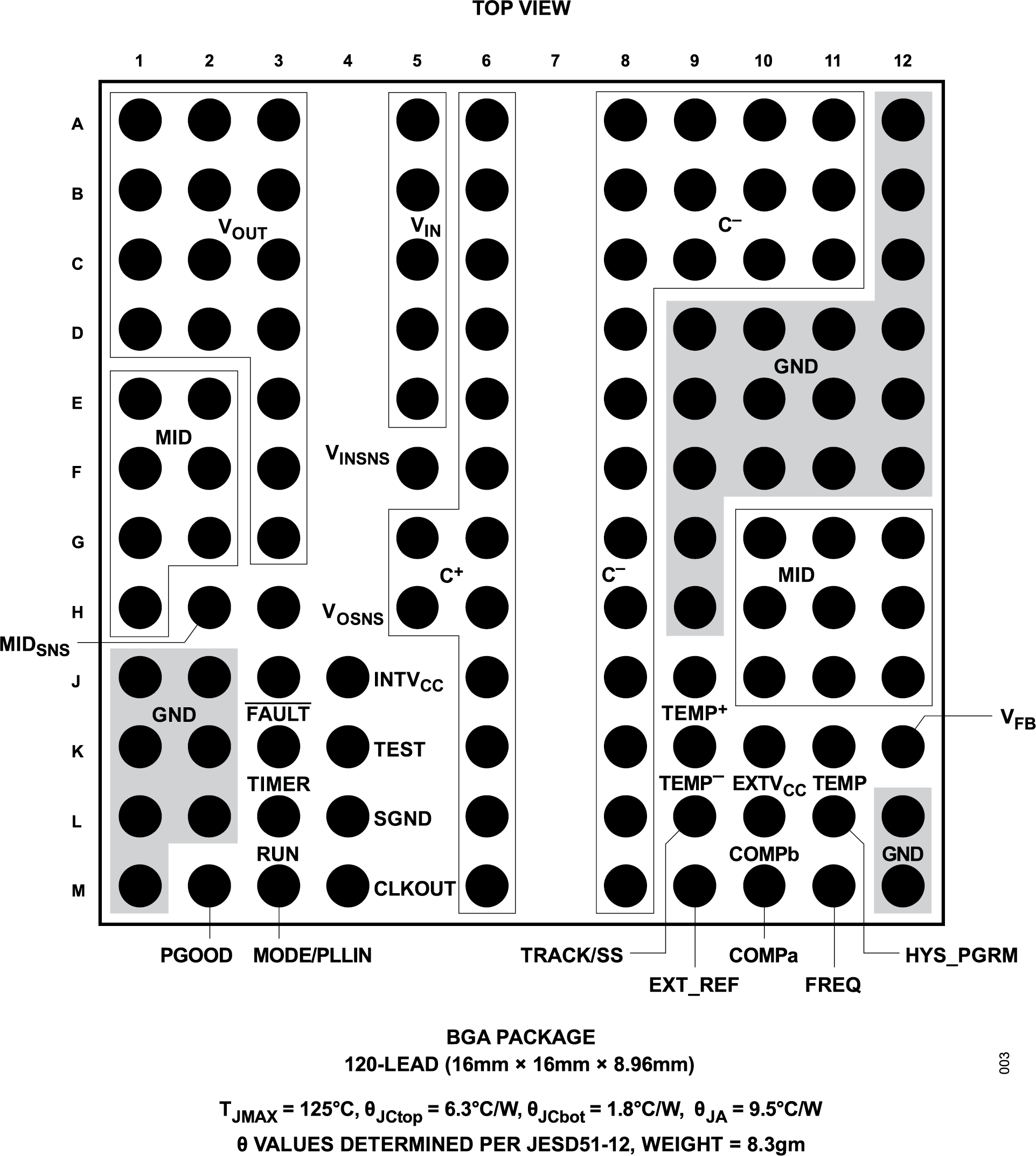

120-Lead, 16mm × 16mm × 8.96mm, BGA package

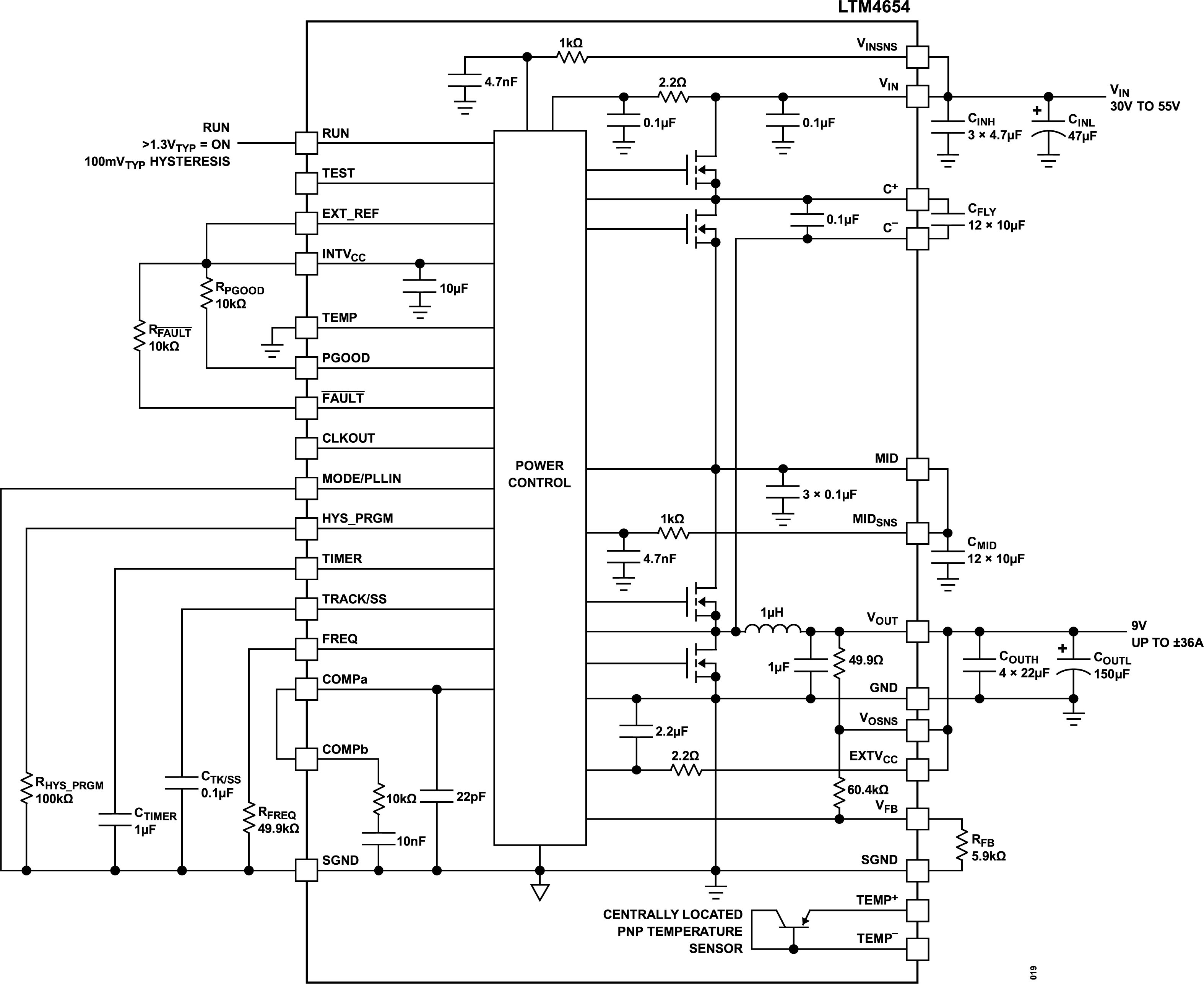

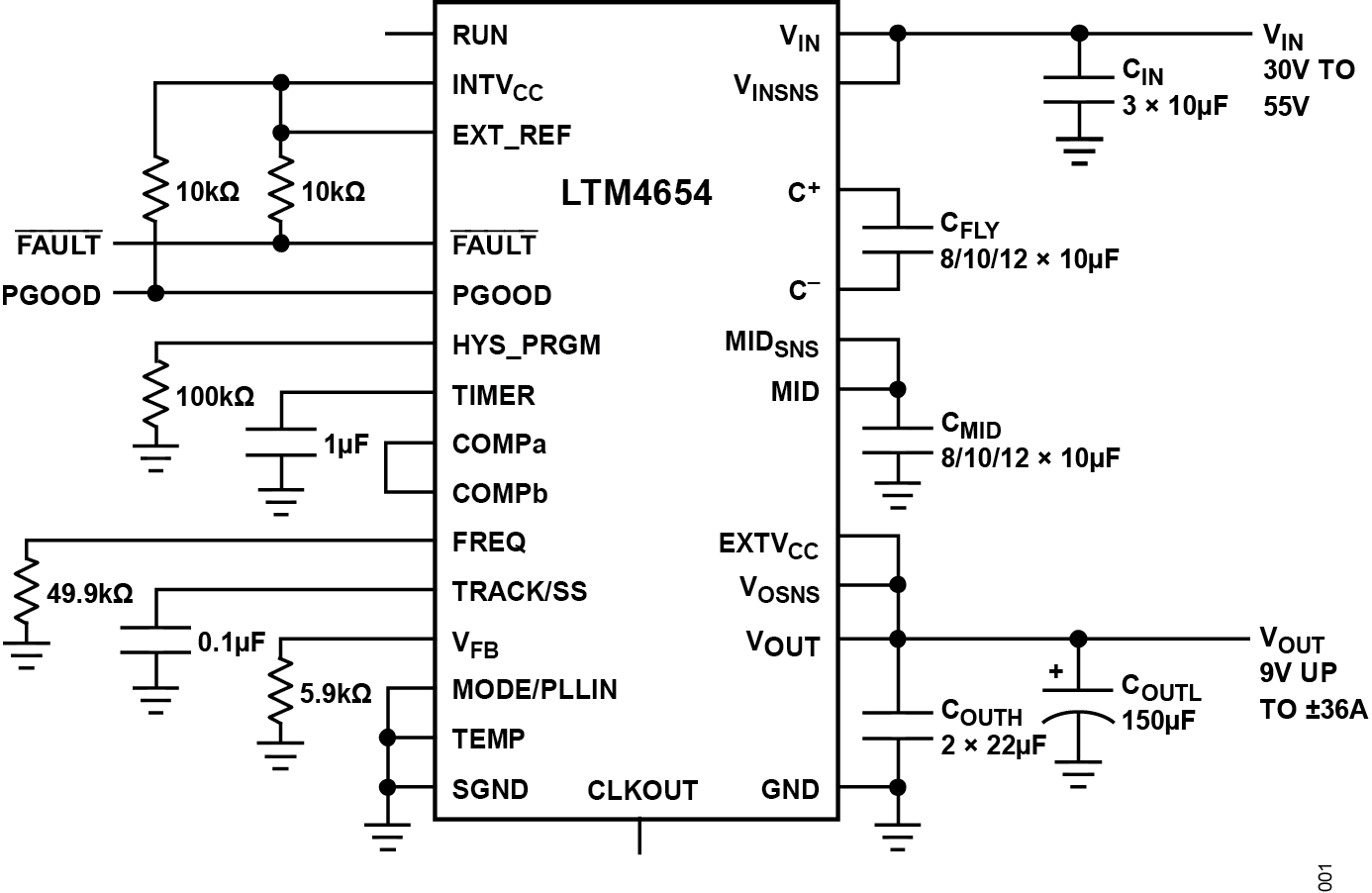

Part details & applications

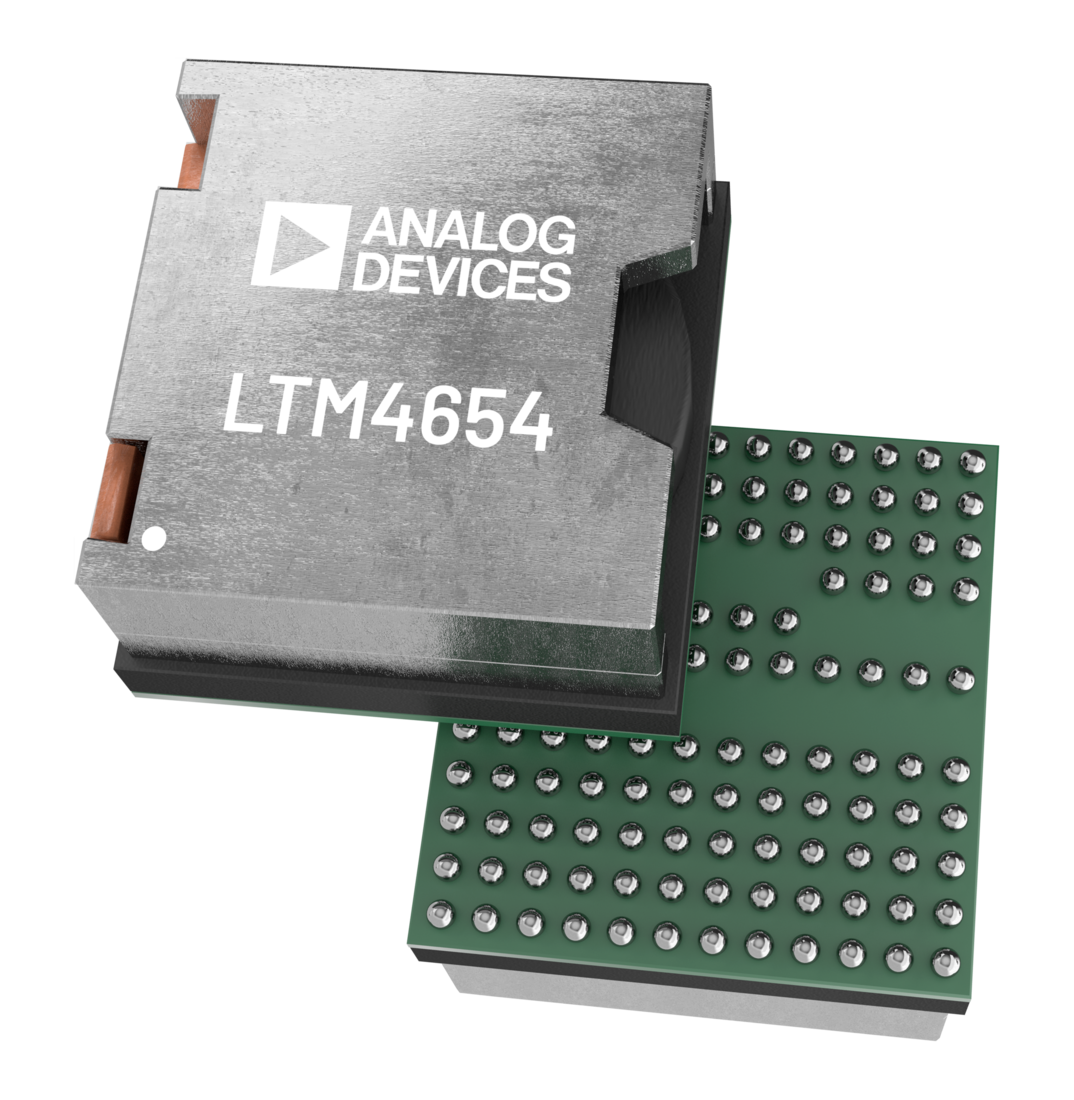

The LTM4654 is a complete 300W output source/sink switching mode hybrid-topology step-down DC-to-DC power μModule^® (micromodule) bus converter. The LTM4654’s exposed power inductor resides on the top of the package, providing an intrinsic path for the heat to dissipate up-and-out of the power module—away from the printed circuit board (PCB). The package includes the switching controller IC, the power MOSFETs, and the supporting components. Only flying (charge-pump) capacitors, bulk input and output bypass capacitors, and a few passive components for configurations are needed.

The LTM4654 features bidirectional operation, frequency synchronization, Burst Mode^® operation, output voltage soft start, and tracking. An onboard temperature diode is available for temperature monitoring. The LTM4654 is designed for scalability. In higher power applications, multiple LTM4654 power modules can be paralleled.

The LTM4654 protects against short-circuit, overcurrent (OC), and overtemperature (OT) faults. The LTM4654 is offered in a BGA package with a RoHS-compliant terminal finish.

APPLICATIONS

Non-isolated intermediate bus power architectures
Telecom, networking, test, and measurement equipment
Industrial applications
