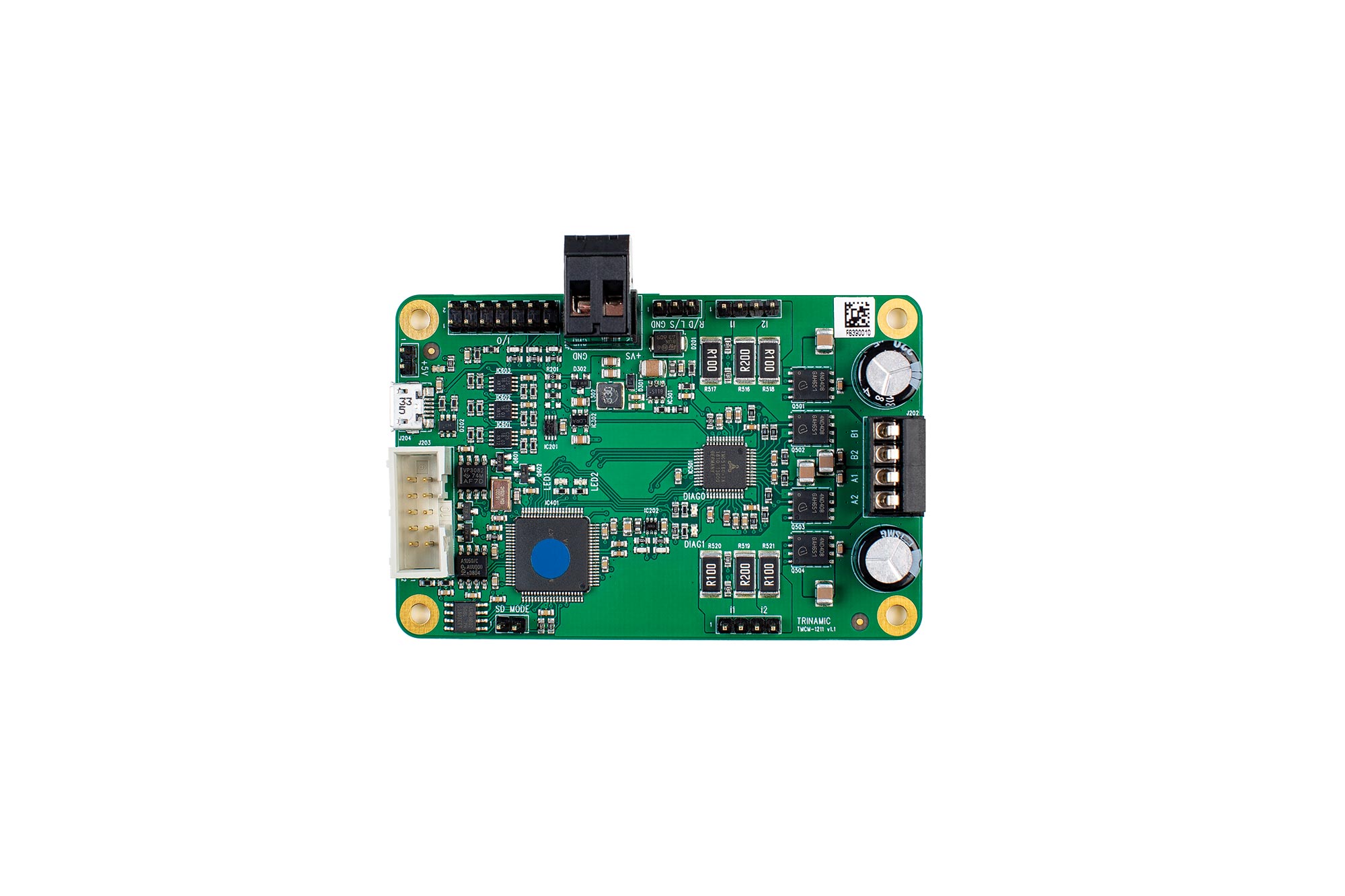

TMCM-1211

PRODUCTION

Stepper motor controller/driver module 10 to 30V, 5.7A, 256 µSteps, SixPoint ramp controller with USB, S/D, and RS485 Interface, StallGuard, CoolStep, StealthChop

Analog Devices TMCM-1211 Product Info

10 February 2026 7

Features

Single axis controller/driver for 2-phase
Bipolar stepper motor
+10 to 30V DC supply voltage

Up to 5.7A RMS motor current
RS485 & USB interface
Multi-purpose inputs and outputs

Part details & applications

The TMCM-1211 is a single axis motor controller/driver board for 2-phase bipolar stepper motors. It features the ADI Trinamic motion controller/motor driver TMC5160 in combination with an ARM Cortex-M4^™ (MK20DX128VLK7) processor. The module is intended to be a fully functional development platform.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.

More about the TMCL-IDE

APPLICATIONS:

Laboratory Automation
Manufacturing
Robotics
Factory Automation
Test & Measurement
Technology evaluation
First experiences with stepper motors
Hobby application
