Analog Devices MAX14871 Product Info

• Drive More Power and Reduce Footprint
  • Up to 2.8A Peak Motor-Current Package
  • Flexible 4.5V–36V Supply Enables Longer Runtime
• Low Power Consumption Runs Cooler and Longer
  • 334mΩ (typ) Total Bridge On-Resistance
  • 1mA (typ) Supply Current at 30kHz/24V
  • 10µA (max) Standby Current at 12V
• Simplified Designs Reduces Time to Market
  • Charge-Pump-Less Architecture
  • Current Regulation Only Requires a Sense Resistor
  • Current-Sense Input Simplifies PCB Layout
  • Internal/External V_REF for Current Regulation
  • Fast/Slow/25% Ripple Current Regulation Modes
• Integrated Protection Provides Robust Driving Solutions
  • Short-Circuit-Protected Drivers
  • Thermal Shutdown Undervoltage Lockout
  • Diagnostic Active-Low FAULT Output
  • -40°C to +85°C Temperature Range

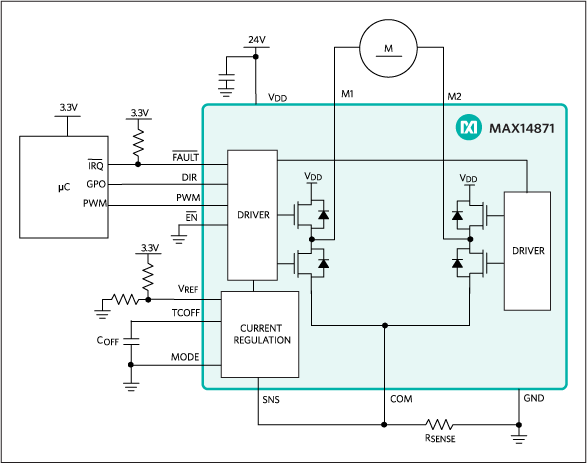

The MAX14871 DC motor driver provides a low-power and simple solution for driving and controlling brushed motors with voltages between 4.5V and 36V. Very low driver on resistance reduces power during dissipation.

The MAX14871 features a charge-pump-less design for reduced external components and low supply current. Integrated current regulation allows user-defined peak startup motor currents and requires minimal external components.

The MAX14871 includes 3 modes of current regulation: fast decay, slow decay, and 25% current ripple modes. Current regulation based on 25% ripple simplifies the design and enables regulation independent of motor characteristics. A separate voltage sense input (SNS) reduces current-sensing errors due to parasitic trace resistance.

The MAX14871 features shoot-through protection and internal free-wheeling diodes that absorb inductive motor currents. Driver outputs are short-circuit-protected from shorts to ground, to the supply, and between M1 and M2. An active-low FAULT output signals thermal overload and overcurrents during fault conditions.

The MAX14871 is available in a 16-pin TSSOP-EP package and operates over the -40°C to +85°C temperature range.

Applications

• Industrial Automation
• Printers and Scanners
• Vending and Gaming Machines
