LTC6373

RECOMMENDED FOR NEW DESIGNS

36V Fully-Differential Programmable-Gain Instrumentation Amplifier with 25pA Input Bias Current

Analog Devices LTC6373 Product Info

10 February 2026 3

Features

Pin-Programmable Gains:
G = 0.25, 0.5, 1, 2, 4, 8, 16V/V + Shutdown
Fully Differential Outputs
Gain Error: 0.015% (Max)
Gain Error Drift: 1ppm/°C (Max)
CMRR: 103dB (Min), G = 16
Input Bias Current: 25pA (Max)
Input Offset Voltage: 92μV (Max), G = 16
Input Offset Voltage Drift: 1.7μV/°C (Max), G = 16

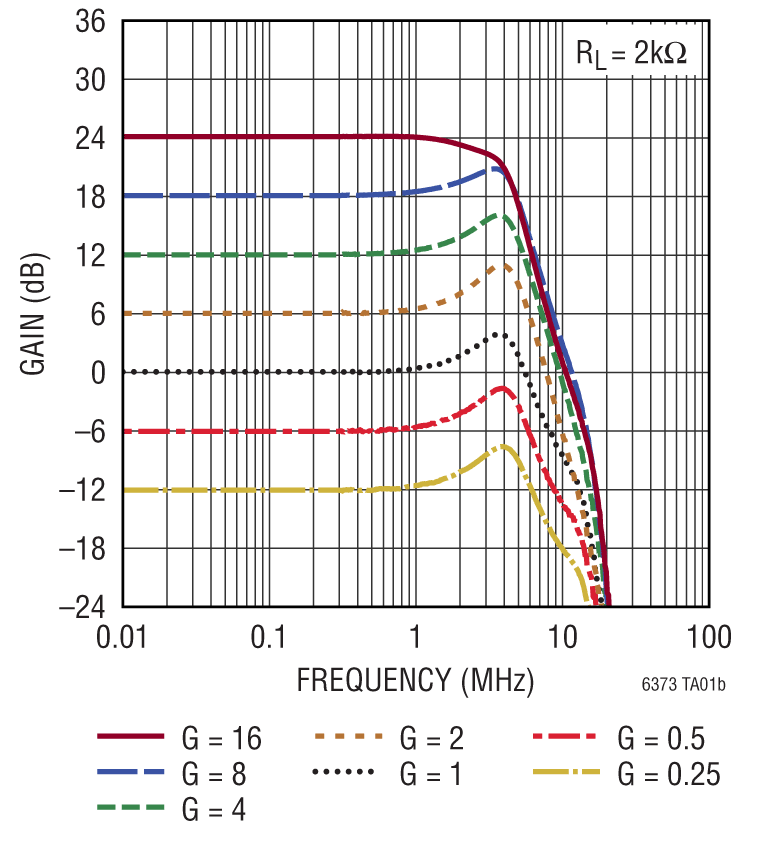

–3dB Bandwidth: 4MHz, G = 16
Input Noise Density: 8nV/√Hz, G = 16
Slew Rate: 12V/μs, G = 16
Adjustable Output Common Mode Voltage
Quiescent Supply Current: 4.4mA
Supply Voltage Range: ±4.5V to ±18V
–40°C to +105°C Specified Temperature Range

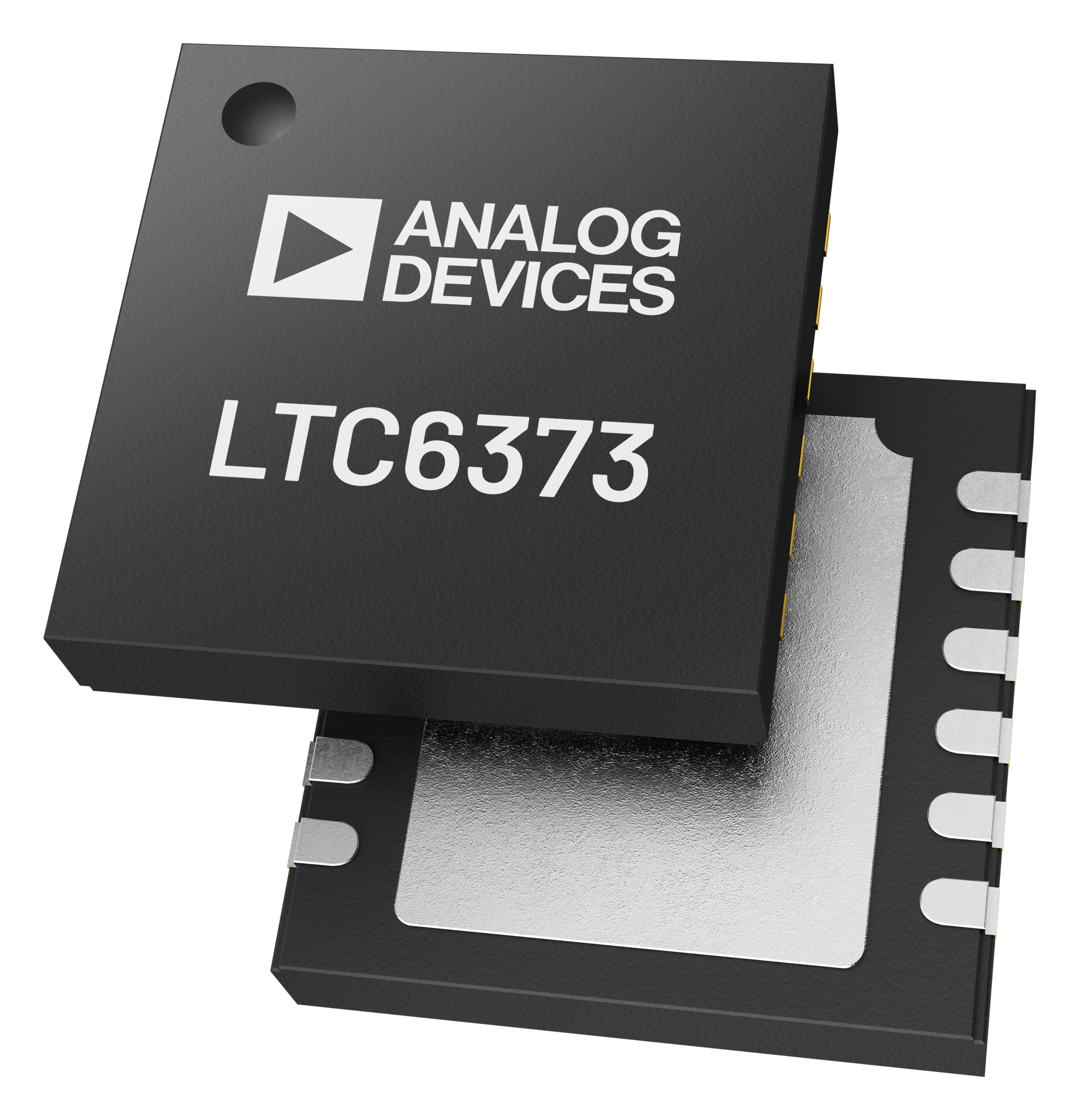

Small 12-Lead 4mm × 4mm DFN (LFCSP) Package

Part details & applications

The LTC6373 is a precision instrumentation amplifier with fully differential outputs which includes a closely-matched internal resistor network to achieve excellent CMRR, offset voltage, gain error, gain drift, and gain nonlinearity. The user can easily program the gain to one of seven available settings through a 3-bit parallel interface (A2 to A0). The 8th state puts the part in shutdown which reduces the current consumption to 220 μA. Unlike a conventional voltage feedback amplifier, the LTC6373 maintains nearly the same bandwidth across all its gain settings.

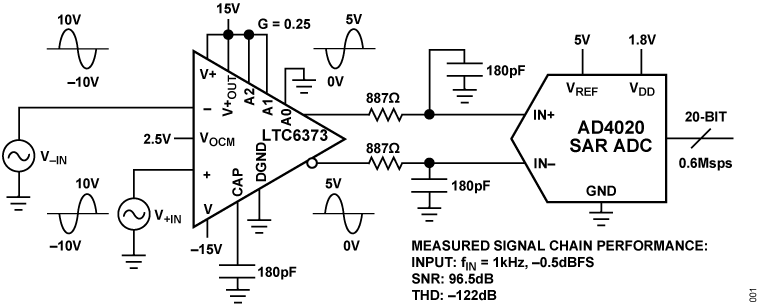

The LTC6373 features fully differential outputs to drive high performance, differential-input ADCs. The output common mode voltage is independently adjustable via the V_OCM pin. The combination of high impedance inputs, DC precision, low noise, low distortion, and high-speed differential ADC drive makes the LTC6373 an ideal candidate for optimizing data acquisition systems.

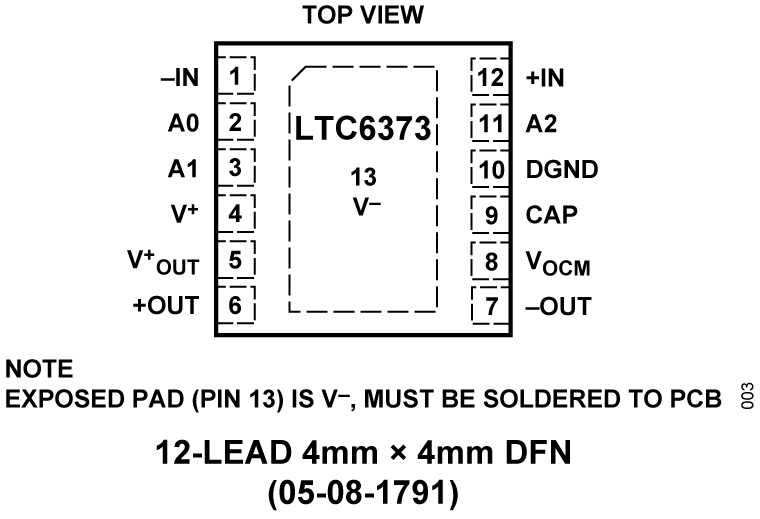

The LTC6373 is available in a 12-lead 4 mm × 4 mm DFN (LFCSP) package and is fully specified over the −40°C to +105°C temperature range.

Applications

Data Acquisition Systems
Biomedical Instrumentation
Test and Measurement Equipment
Differential ADC Drivers
Single-Ended-to-Differential Conversion
Multiplexed Applications
