Analog Devices AD6679 Product Info

• Parallel LVDS (DDR) outputs
• In-band SFDR = 82 dBFS at 340 MHz (500 MSPS)
• In-band SNR = 67.8 dBFS at 340 MHz (500 MSPS)
• 1.1 W total power per channel at 500 MSPS (default settings)
• Noise density = −153 dBFS/Hz at 500 MSPS
• 1.25 V, 2.50 V, and 3.3 V dc supply operation
• Flexible input range: 1.46 V p-p to 2.06 V p-p (2.06 V p-p nominal)
• 95 dB channel isolation/crosstalk
• Amplitude detect bits for efficient automatic gain control (AGC) implementation
• Noise shaping requantizer (NSR) option for main receiver function
• See data sheet for additional features

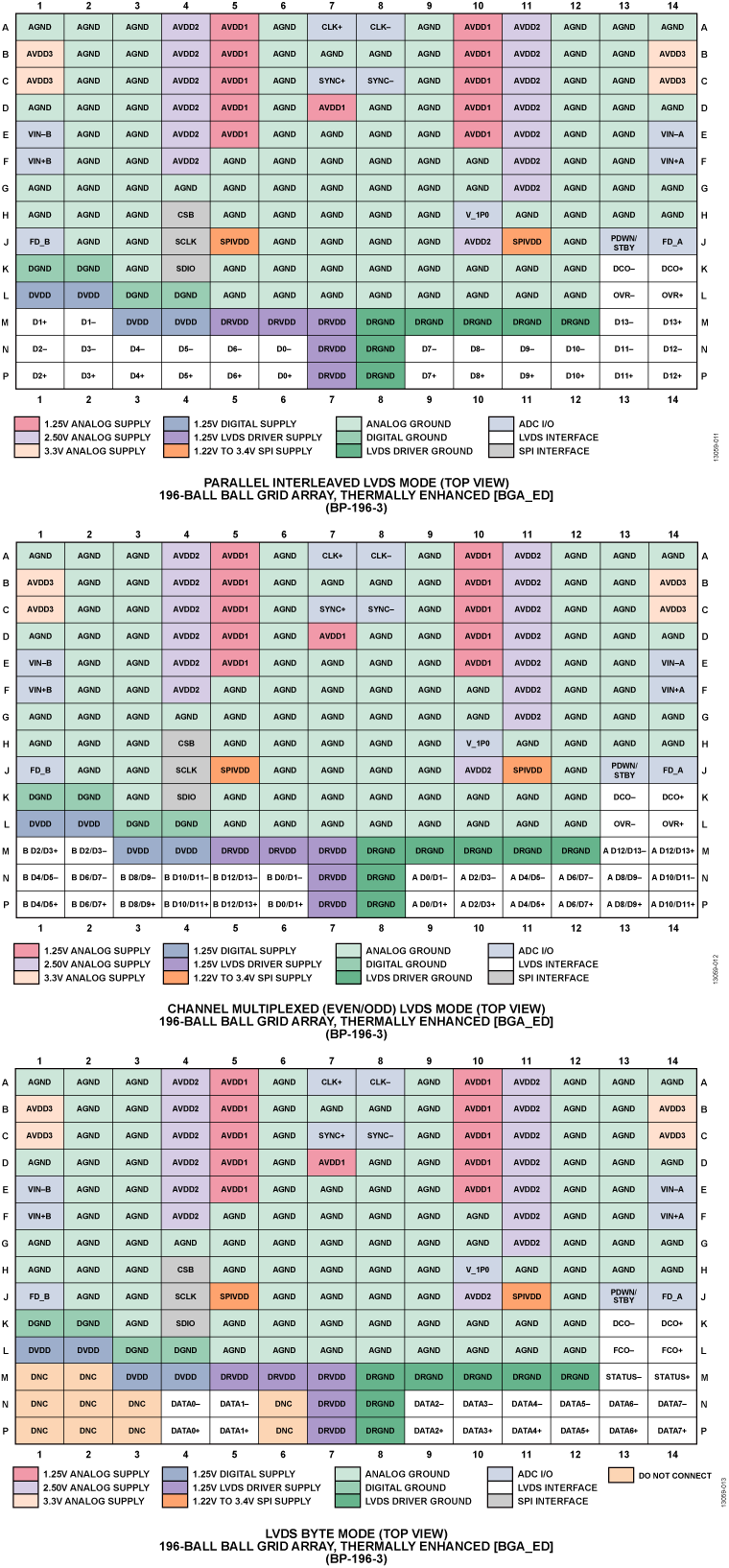

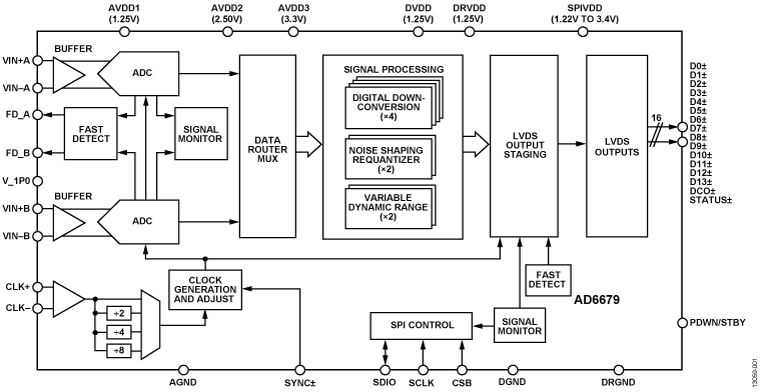

The AD6679 is a 135 MHz bandwidth mixed-signal intermediate frequency (IF) receiver. It consists of two, 14-bit, 500 MSPS analog-to-digital converters (ADCs) and various digital signal processing blocks consisting of four wideband DDCs, an NSR, and VDR monitoring. It has an on-chip buffer and a sample-and-hold circuit designed for low power, small size, and ease of use. This product is designed to support communications applications capable of sampling wide bandwidth analog signals of up to 2 GHz. The AD6679 is optimized for wide input bandwidth, high sampling rates, excellent linearity, and low power in a small package.

The dual ADC cores feature a multistage, differential pipelined architecture with integrated output error correction logic. Each ADC features wide bandwidth inputs supporting a variety of user-selectable input ranges. An integrated voltage reference eases design considerations.

Applications

• Diversity multiband, multimode digital receivers
  3G/4G, TD-SCDMA, W-CDMA, GSM, LTE, LTE-A
• DOCSIS 3.0 CMTS upstream receive paths
• HFC digital reverse path receivers
