LTC3809-1

PRODUCTION

No RSENSE™, Low Input Voltage, Synchronous DC/DC Controller with Output Tracking

Analog Devices LTC3809-1 Product Info

10 February 2026 5

Features

Programmable Output Voltage Tracking
No Current Sense Resistor Required
Constant Frequency Current Mode Operation for Excellent Line and Load Transient Response
Wide V_IN Range: 2.75V to 9.8V
Wide V_OUT Range: 0.6V to V_IN
0.6V ±1.5% Reference
Low Dropout Operation: 100% Duty Cycle
Selectable Burst Mode^®/Pulse-Skipping/Forced Continuous Operation

Auxiliary Winding Regulation
Internal Soft-Start Circuitry
Selectable Maximum Peak Current Sense Threshold
Output Overvoltage Protection
Micropower Shutdown: I_Q = 9µA
Tiny Thermally Enhanced Leadless (3mm × 3mm) DFN or 10-lead MSOP Packages

Part details & applications

The LTC3809-1 is a synchronous step-down switching regulator controller that drives external complementary power MOSFETs using few external components. The constant frequency current mode architecture with MOSFET V_DS sensing eliminates the need for a current sense resistor and improves efficiency.

Optional Burst Mode operation provides high efficiency operation at light loads. 100% duty cycle provides low dropout operation, extending operating time in battery-powered systems. Burst Mode is inhibited when the MODE pin is pulled low to reduce noise and RF interference.

The LTC3809-1 allows either coincident or ratiometric output voltage tracking. Switching frequency is fixed at 550kHz. Fault protection is provided by an overvoltage comparator and a short-circuit current limit comparator.

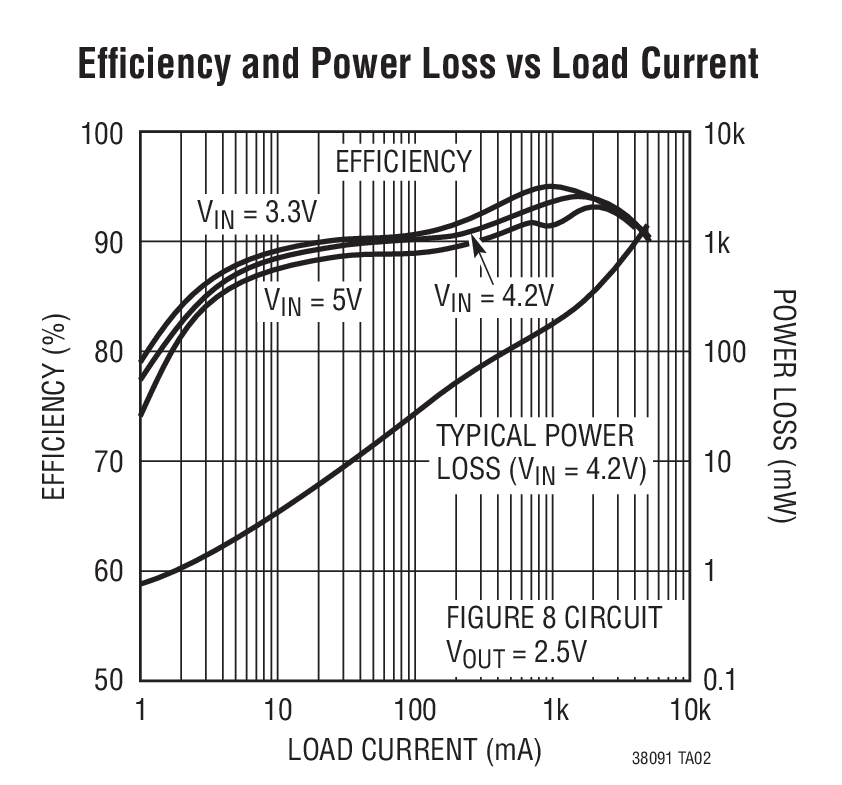

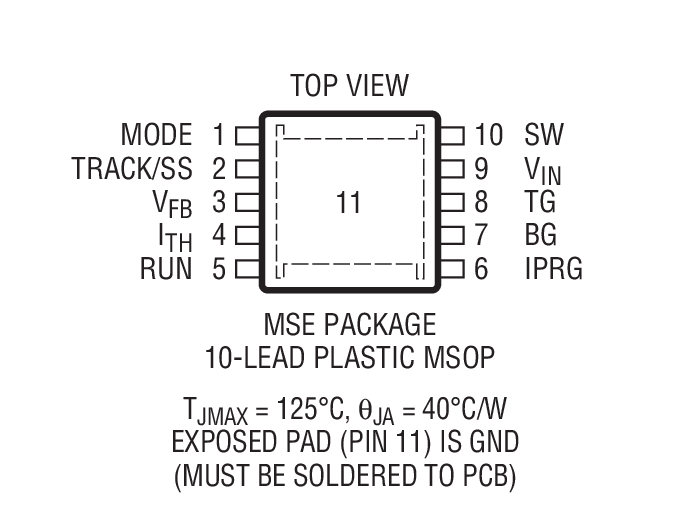

The LTC3809-1 is available in tiny footprint thermally enhanced DFN and 10-lead MSOP packages.

	Features	Package
LTC3809	PLL, Selectable Spread Spectrum, Power Good	3x3 DFN-10, MS-10E
LTC3809-1	Tracking	Subscribe to Welllinkchips ! Your Name * Email Subscribe Popular Posts ● Analog Devices MAX38903B Product Info ● Analog Devices MAX77972 Product Info ● Analog Devices MAX1757 Product Info ● Analog Devices MAX77960 Product Info ● Analog Devices LTC4089-3 Product Info ● Analog Devices MAX1873 Product Info ● Analog Devices MAX753 Product Info ● Analog Devices ADES1755 Product Info ● Analog Devices LTC4057-4.2 Product Info ● Analog Devices MAX14521E Product Info Featured Parts More > LTC6803HG-4#3ZZTRPBF Analog Devices Inc. Submit a request Submit a request Our salesman will contact you by email after submitting the message! * Part Number: * Quantity: * E-mail: Target price: Name: Company name: Please fill the item with * SUBMITTED SUCCESSFULLY！ Our Salesman will respond within 24 hours. Please pay attention to your mailbox. Thank you for your advice. IRS2092STRPBF Infineon Technologies * Qty: Add RFQ List RFQ Directly DON'T MISS OUT Shipping For Free Submit the inquiry in this window, you can get a chance to free shipping. 1.Submit your parts requirements and fill in your email address. 2.Our sales staff gets in touch with you and communicate the details of orders. OK,let’s see NO,keep going In order to provide you with the best website experience, we use cookies. For more information about how we use cookies and manage your preferences, please refer to our privacy policy. By using our website, you agree to use cookies. CONTACT US [email protected] Company address WELL LINK CHIPS GROUP CO.,LIMITED FLAT/RM 1802 BEVERLY HOUSE 93-107 LOCKHART ROAD WANCHAI HK FOLLOW US © 2022 WELL LINK CHIPS GROUP CO., LIMITED All Rights Reserved. Privacy Policy \| Terms and Conditions Send Enquiry SEND e-MAIL Office hour from 9am to 6pm , Monday through Friday, UTC/GMT +8
