LTC3407-3

PRODUCTION

Dual Synchronous, 1.8V/0.8A and 3.3V/0.8A 2.25MHz Step-Down DC/DC Regulator

Analog Devices LTC3407-3 Product Info

10 February 2026 4

Features

Very Low Quiescent Current: Only 40µA
1.8V at 800mA/3.3V at 800mA

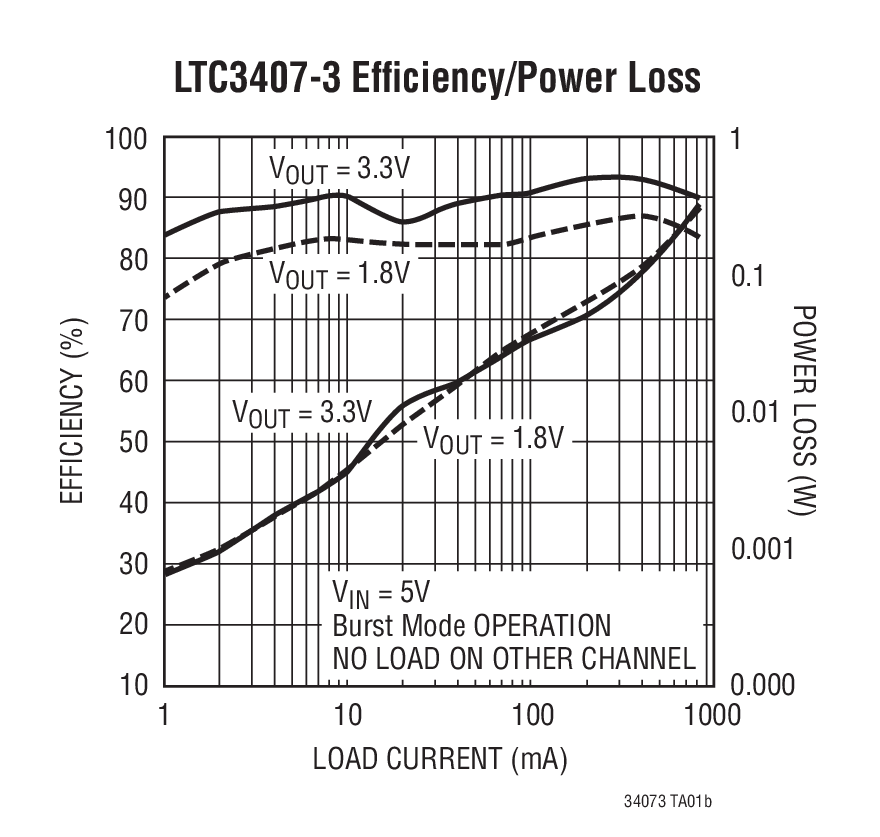

High Efficiency: Up to 95%
2.25MHz Constant Frequency Operation
High Switch Current: 1.2A on Each Channel
No Schottky Diodes Required
Low R_DS(ON) Internal Switches: 0.35Ω
V_IN: 3.3V to 5.5V

Current Mode Operation for Excellent Line and Load Transient Response
Short-Circuit Protected
Low Dropout Operation: 100% Duty Cycle
Ultralow Shutdown Current: I_Q< 1µA
Power-On Reset Output
Externally Synchronizable Oscillator

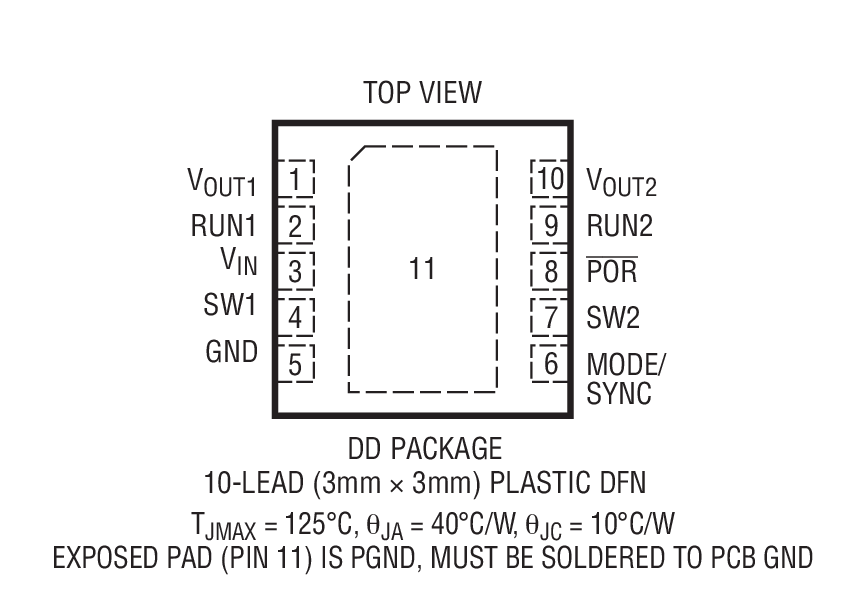

Small Thermally Enhanced 3mm × 3mm DFN Package

Part details & applications

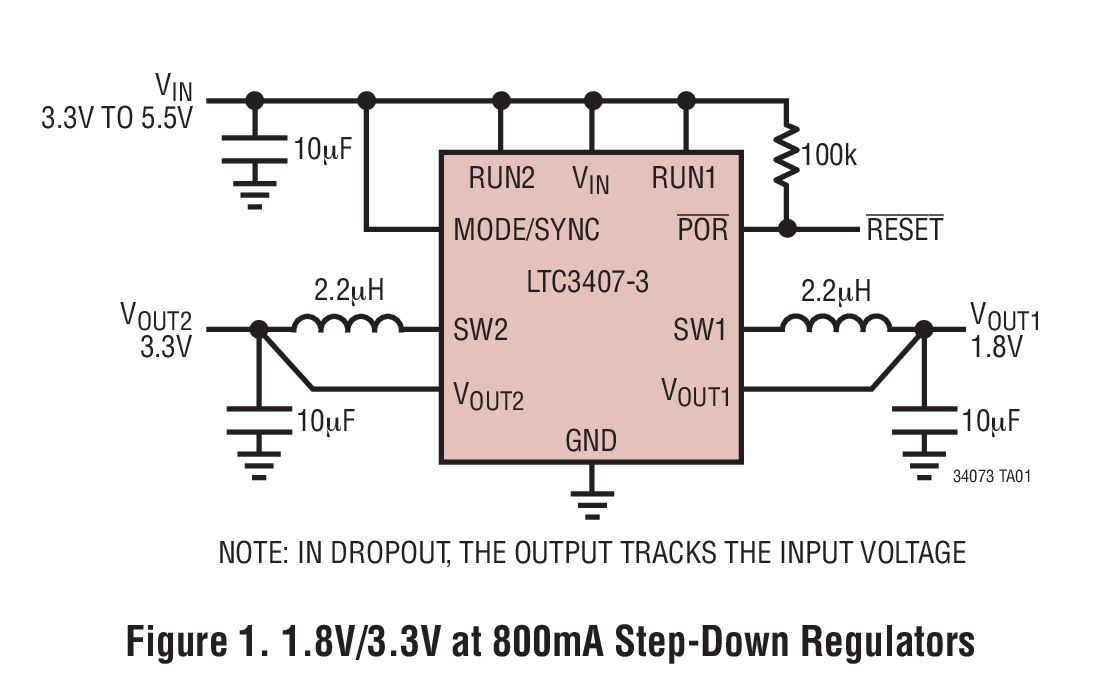

The LTC3407-3 is a dual, constant frequency, synchronous step down DC/DC converter. Intended for low power applications, it operates from 3.3V to 5.5V input voltage range and has a constant 2.25MHz switching frequency, allowing the use of tiny, low cost capacitors and inductors with a profile ≤1.0mm. Internal synchronous 0.35Ω, 1.2A power switches provide high efficiency without the need for external Schottky diodes.

A user selectable mode input is provided to allow the user to trade-off noise ripple for low power efficiency. Burst Mode^® operation provides high efficiency at light loads, while Pulse Skip Mode provides low noise ripple at light loads.

To further maximize battery life, the P-channel MOSFETs are turned on continuously in dropout (100% duty cycle), and both channels draw a total quiescent current of only 40µA. In shutdown, the device draws <1µA.

	Iout	Fsw	Features
LTC3407	2x 600mA	1.5MHz
