Analog Devices AD9717 Product Info

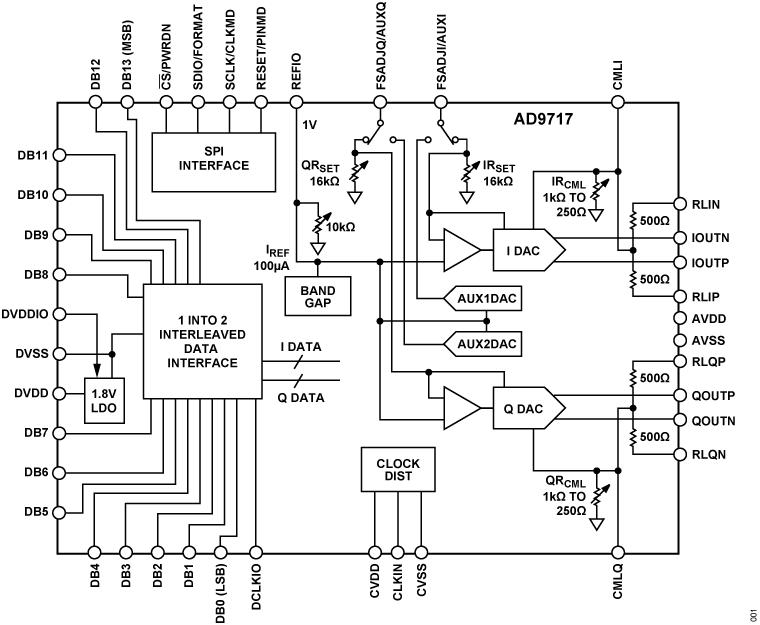

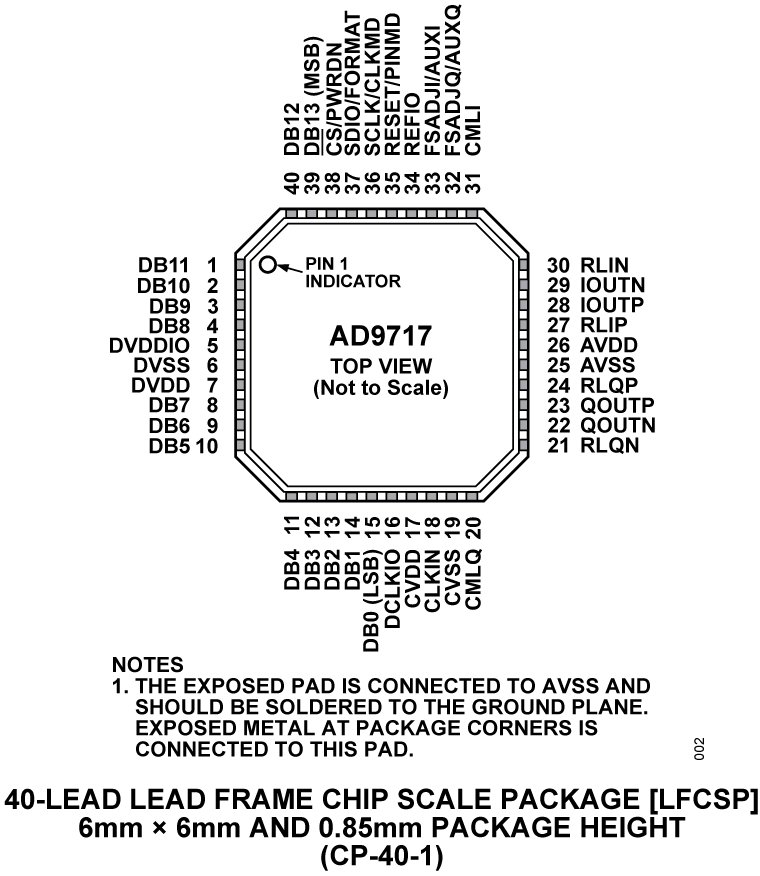

The AD9714 / AD9715 / AD9716 / AD9717 are pin-compatible, dual, 8-/10-/12-/14-bit, low power digital-to-analog converters (DACs) that provide a sample rate of 125 MSPS. These TxDAC^® converters are optimized for the transmit signal path of communication systems. All the devices share the same interface, package, and pinout, providing an upward or downward component selection path based on performance, resolution, and cost.

The AD9714 / AD9715 / AD9716 / AD9717 offer exceptional ac and dc performance and support update rates up to 125 MSPS.

The flexible power supply operating range of 1.8 V to 3.3 V and low power dissipation of the AD9714 / AD9715 / AD9716 / AD9717 make them well-suited for portable and low power applications.

PRODUCT HIGHLIGHTS

1. Low Power.
   DACs operate on a single 1.8 V to 3.3 V supply; total power consumption reduces to 35 mW at 125 MSPS with a 1.8 V supply. Sleep and power-down modes are provided for low power idle periods.
2. LVCMOS Clock Input.
   High speed, single-ended LVCMOS clock input supports a 125 MSPS conversion rate.
3. Easy Interfacing to Other Components.
   Adjustable output common mode from 0 V to 1.2 V allows easy interfacing to other components that accept common- mode levels greater than 0 V.

APPLICATIONS

• Wireless infrastructures
• Picocell, femtocell base stations
• Medical instrumentation
• Ultrasound transducer excitation
• Portable instrumentation
• Signal generators, arbitrary waveform generators
