Analog Devices LTC1655 Product Info

• 16-Bit Monotonicity Over Temperature
• Deglitched Rail-to-Rail Voltage Output

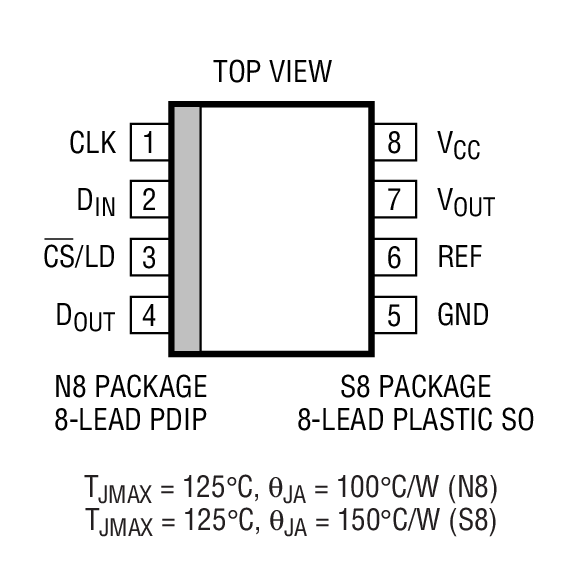

• SO-8 Package
• I_CC(TYP): 600µA
• Internal Reference:
  • 2.048V (LTC1655)
  • 1.25V (LTC1655L)

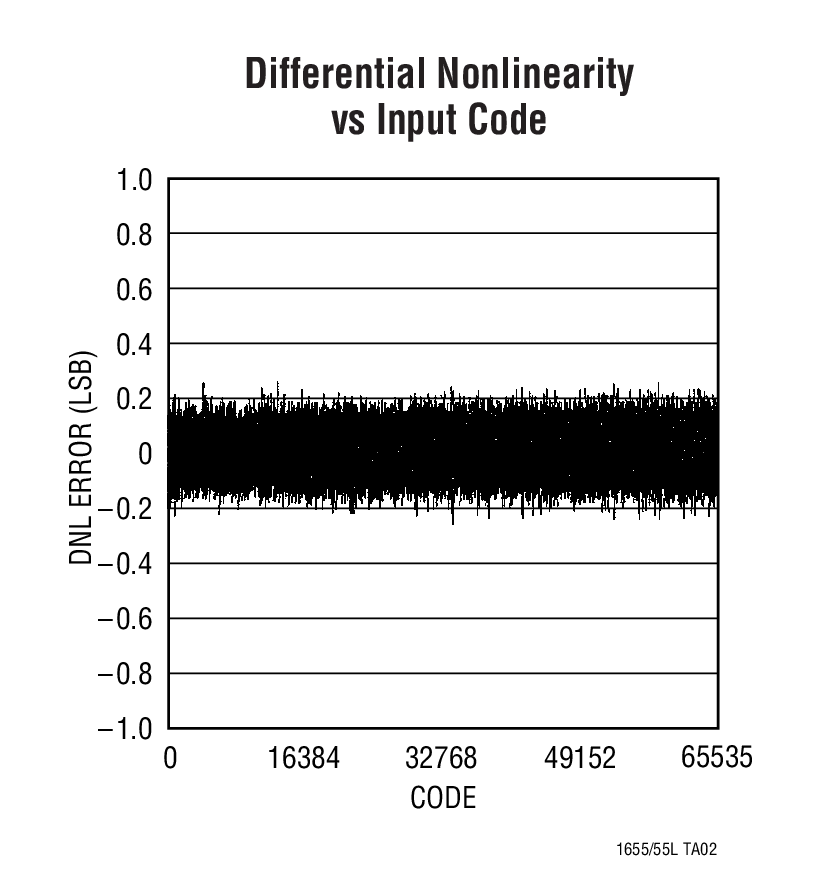

• Maximum DNL Error: ±1LSB
• Settling Time: 20µS to ±1LSB
• 750kHz Max Update Rate
• Power-On Reset to Zero Volt
• 3-Wire Cascadable Serial Interface
• Low Cost
• Pin Compatible Upgrade for LTC1451 12-Bit DAC Family

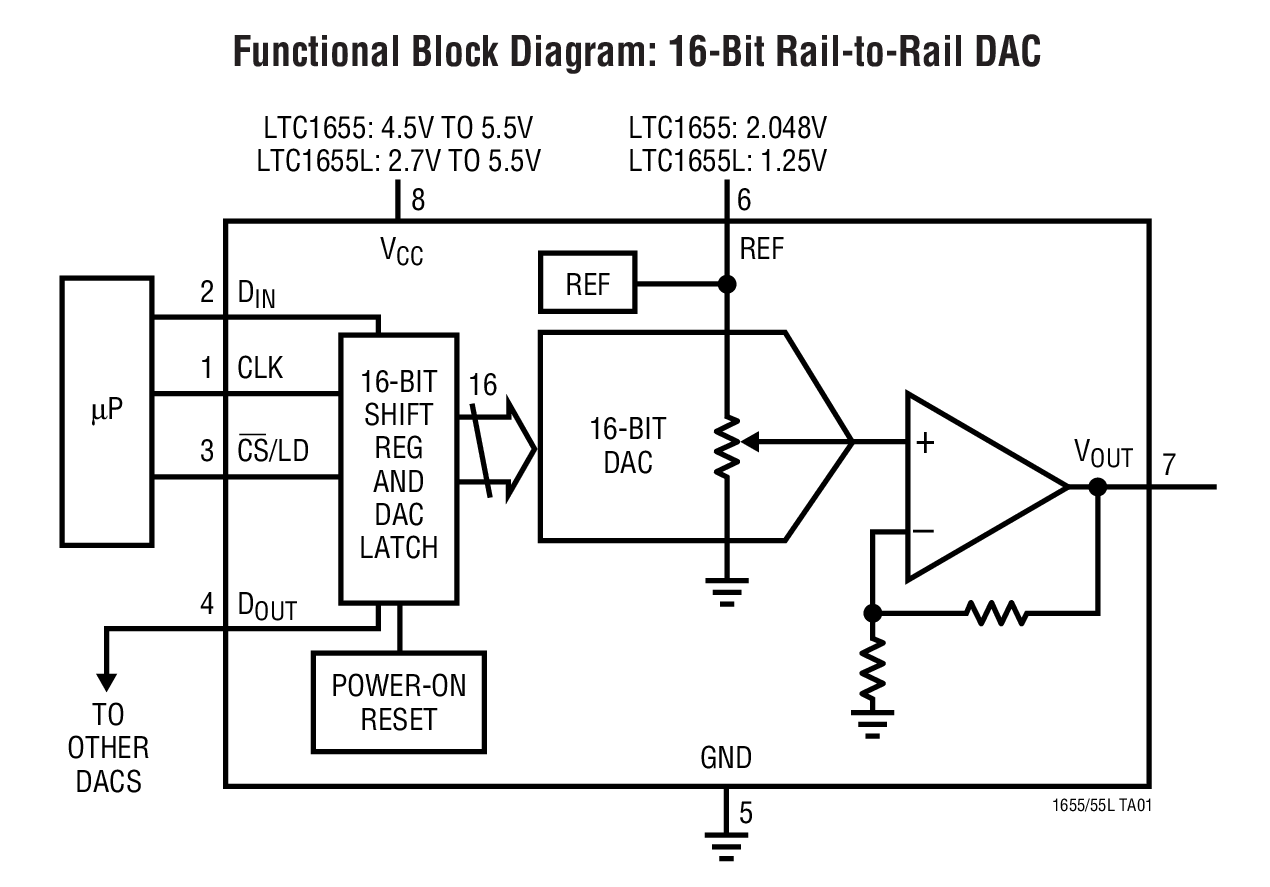

The LTC1655/LTC1655L are rail-to-rail voltage output, 16-bit digital-to-analog converters in an SO-8 package. They include an output buffer and a reference. The 3-wire serial interface is compatible with SPI/QSPI and MICROWIRE™ protocols. The CLK input has a Schmitt trigger that allows direct optocoupler interface.

The LTC1655 has an on-board 2.048V reference that can be overdriven to a higher voltage. The output swings from 0V to 4.096V when using the internal reference. The typical power dissipation is 3.0mW on a single 5V supply.

The LTC1655L has an on-board 1.25V reference that can be overdriven to a higher voltage. The output swings from 0V to 2.5V when using the internal reference. The typical power dissipation is 1.8mW on a single 3V supply.

The LTC1655/LTC1655L are pin compatible with the 12-bit V_OUT DAC family, allowing an easy upgrade path. They are the only buffered 16-bit DACs in an SO-8 package and they include an on-board reference for standalone performance.

Applications

• Digital Calibration
• Industrial Process Control
• Automatic Test Equipment
• Cellular Telephones
