LTC2846

PRODUCTION

3.3V Software-Selectable Multiprotocol Transceiver with Termination

Analog Devices LTC2846 Product Info

10 February 2026 6

Features

Software-Selectable Transceiver Supports: RS232, RS449, EIA530, EIA530-A, V.35, V.36, X.21
Operates from Single 3.3V Supply
TUV Rheinland of North America Inc. Certified NET1, NET2 and TBR2 Compliant, Report No.: TBR2/050101/02, TBR2/051501/02

1.2MHz Boost Switching Regulator for 3.3V to 5V Conversion
On-Chip Cable Termination
Complete DTE or DCE Port with LTC2844 or LTC2845
Small Footprint

Part details & applications

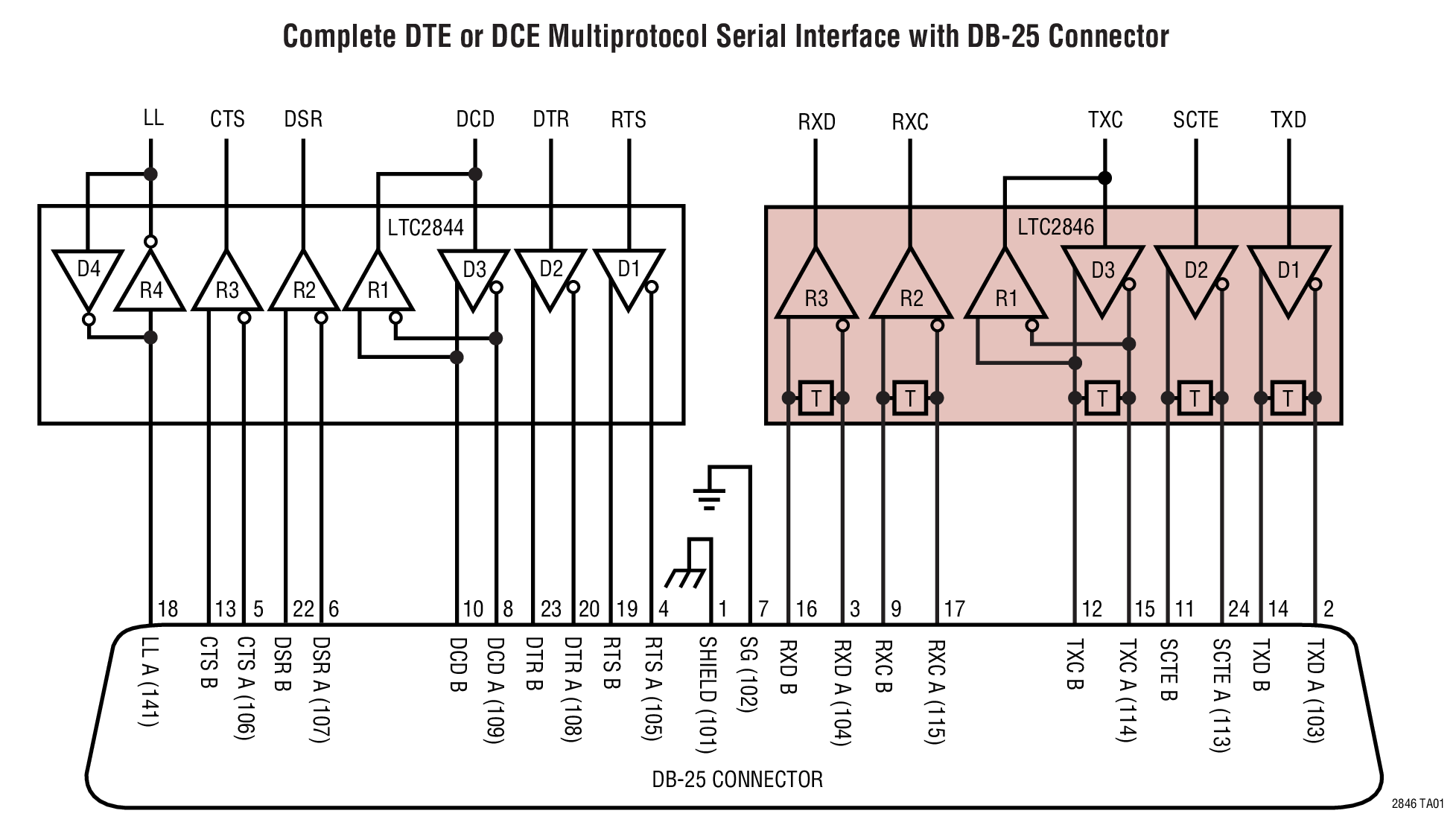

The LTC2846 is a 3-driver/3-receiver multiprotocol transceiver with on-chip cable termination. When combined with the LTC2844 or LTC2845, this chip set forms a complete software-selectable DTE or DCE interface port that supports the RS232, RS449, EIA530, EIA530-A, V.35, V.36 and X.21 protocols. All necessary cable termination is provided inside the LTC2846. The LTC2846 has a boost regulator that takes in a 3.3V input and switches at 1.2MHz, allowing the use of tiny, low cost capacitors and inductors 2mm or less in height.

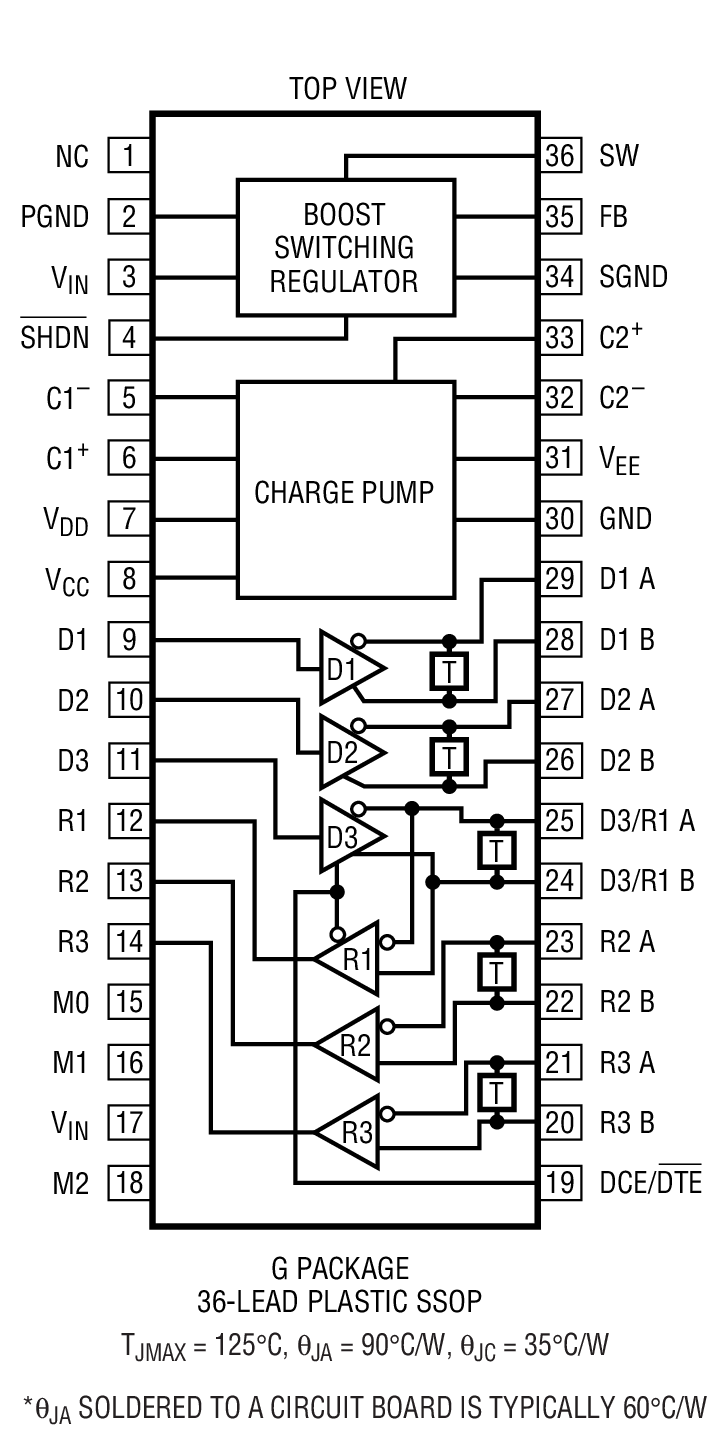

The 5V output drives an internal charge pump that requires only five space-saving surface mounted capacitors. The LTC2846 is available in a 36-lead SSOP surface mount package.

Applications

Data Networking
CSU and DSU
Data Routers
