Analog Devices LTC2373-16 Product Info

• 1Msps Throughput Rate
• 16-Bit Resolution with No Missing Codes
• 8-Channel Multiplexer with Selectable Input Range
  • Fully Differential (±4.096V)
  • Pseudo-Differential Unipolar (0V to 4.096V)
  • Pseudo-Differential Bipolar (±2.048V)

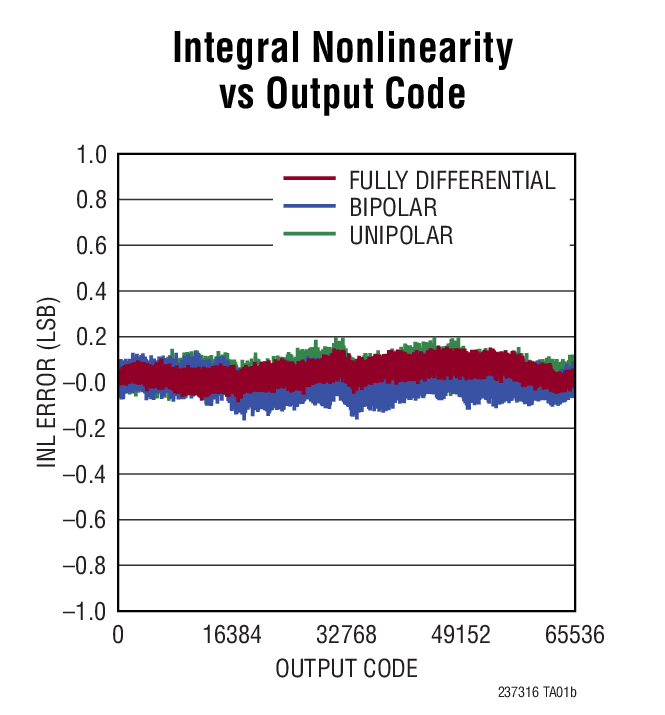

• INL: ±1LSB (Maximum)
• SNR: 96dB (Fully Differential)/93.4dB (Pseudo-Differential) (Typical) at f_IN = 1kHz
• THD: –110dB (Typical) at f_IN = 1kHz
• Programmable Sequencer
• Selectable Digital Gain Compression
• Single 5V Supply with 1.8V to 5V I/O Voltages
• SPI-Compatible Serial I/O
• Onboard 2.048V Reference and Reference Buffer
• No Pipeline Delay, No Cycle Latency
• Power Dissipation 40mW (Typical)
• Guaranteed Operation to 125°C

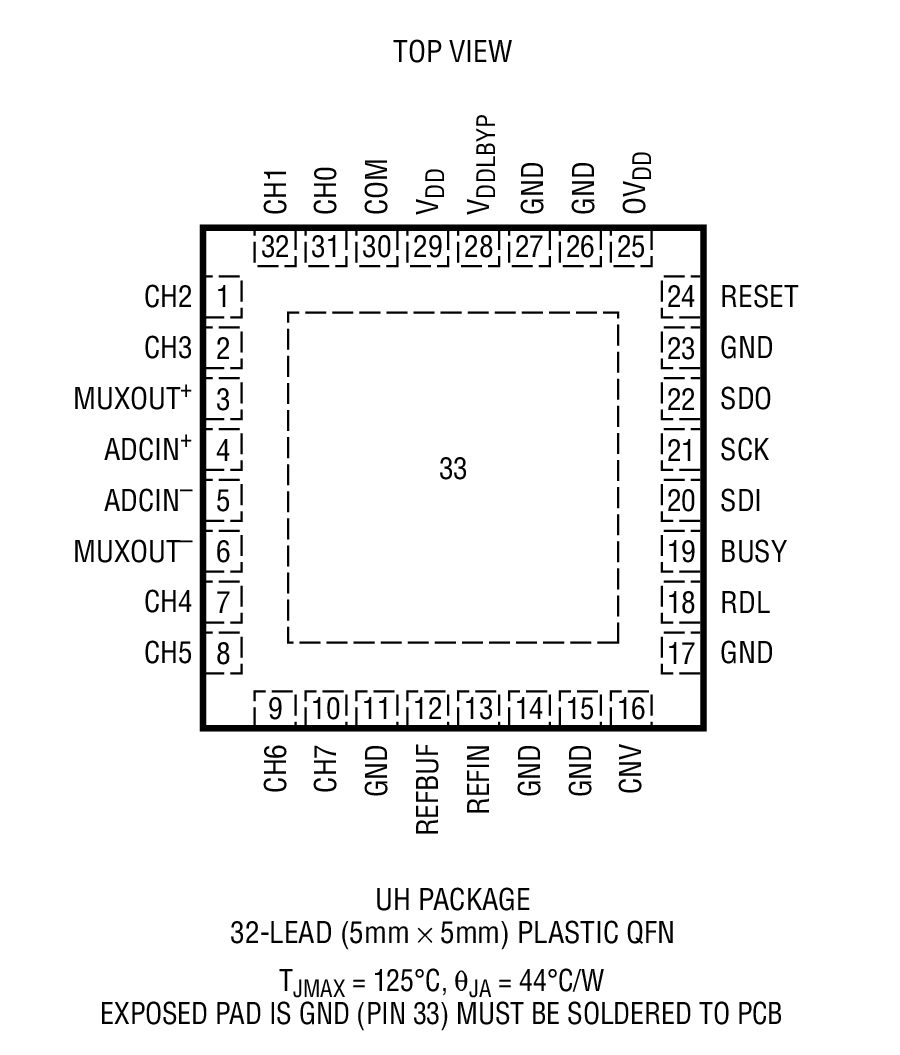

• 32-Lead 5mm × 5mm QFN Package

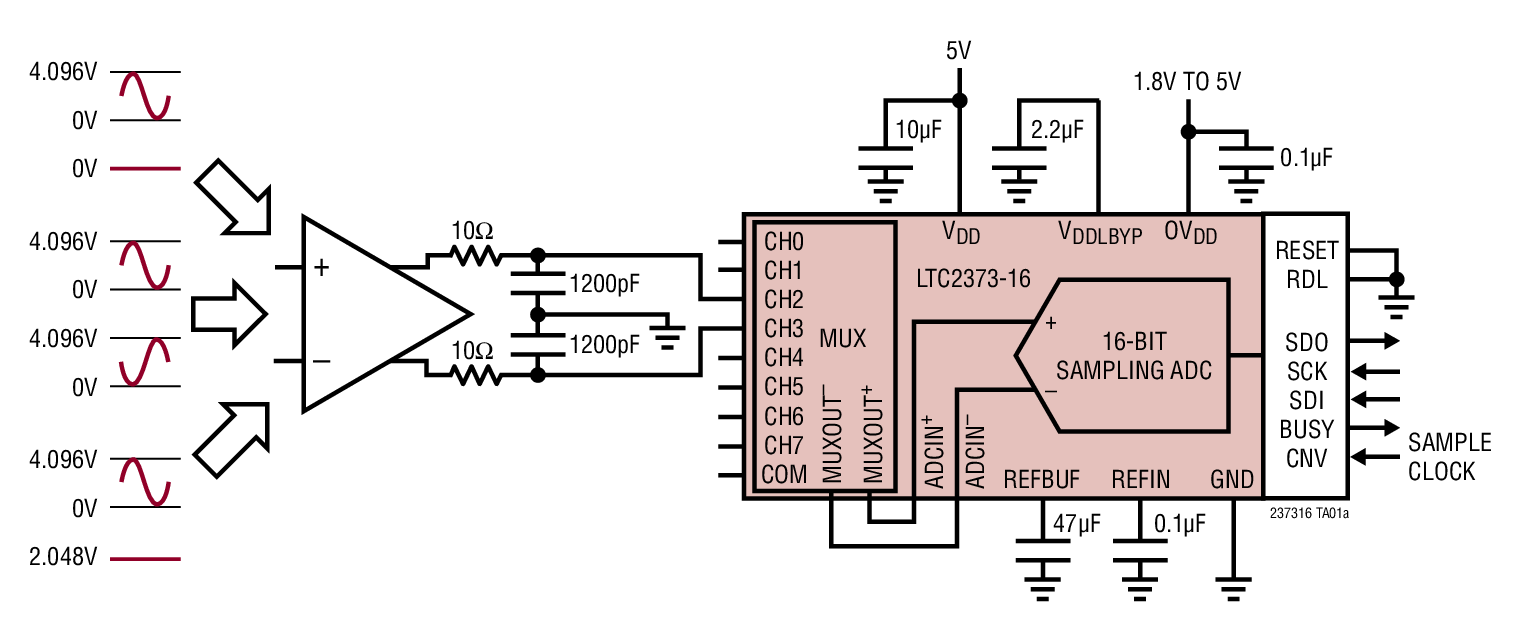

The LTC2373-16 is a low noise, high speed, 8-channel 16-bit successive approximation register (SAR) ADC. Operating from a single 5V supply, the LTC2373-16 has a highly configurable, low crosstalk 8-channel input multiplexer, supporting fully differential, pseudo-differential unipolar and pseudo-differential bipolar analog input ranges. The LTC2373-16 achieves ±1LSB INL (maximum) in all input ranges, no missing codes at 16-bits and 96dB (fully differential)/ 93.4dB (pseudo-differential) SNR (typical).

The LTC2373-16 has an onboard low drift (20ppm/°C max) 2.048V temperature-compensated reference and a singleshot capable reference buffer. The LTC2373-16 also has a high speed SPI-compatible serial interface that supports 1.8V, 2.5V, 3.3V and 5V logic through which a sequencer with a depth of 16 may be programmed. An internal oscillator sets the conversion time, easing external timing considerations. The LTC2373-16 dissipates only 40mW and automatically naps between conversions, leading to reduced power dissipation that scales with the sampling rate. A sleep mode is also provided to reduce the power consumption of the LTC2373-16 to 300μW for further power savings during inactive periods.

Applications

• Programmable Logic Controllers
• Industrial Process Control
• High Speed Data Acquisition
• Portable or Compact Instrumentation
• ATE
