Analog Devices LT5558 Product Info

• Direct Conversion from Baseband to RF
• High OIP3: + 22.4dBm at 900MHz
• Low Output Noise Floor at 20MHz Offset:
  • No RF: –158dBm/Hz
  • P_OUT = 4dBm: –152.7dBm/Hz
• Low Carrier Leakage: –43.7dBm at 900MHz
• High Image Rejection: –49dBc at 900MHz

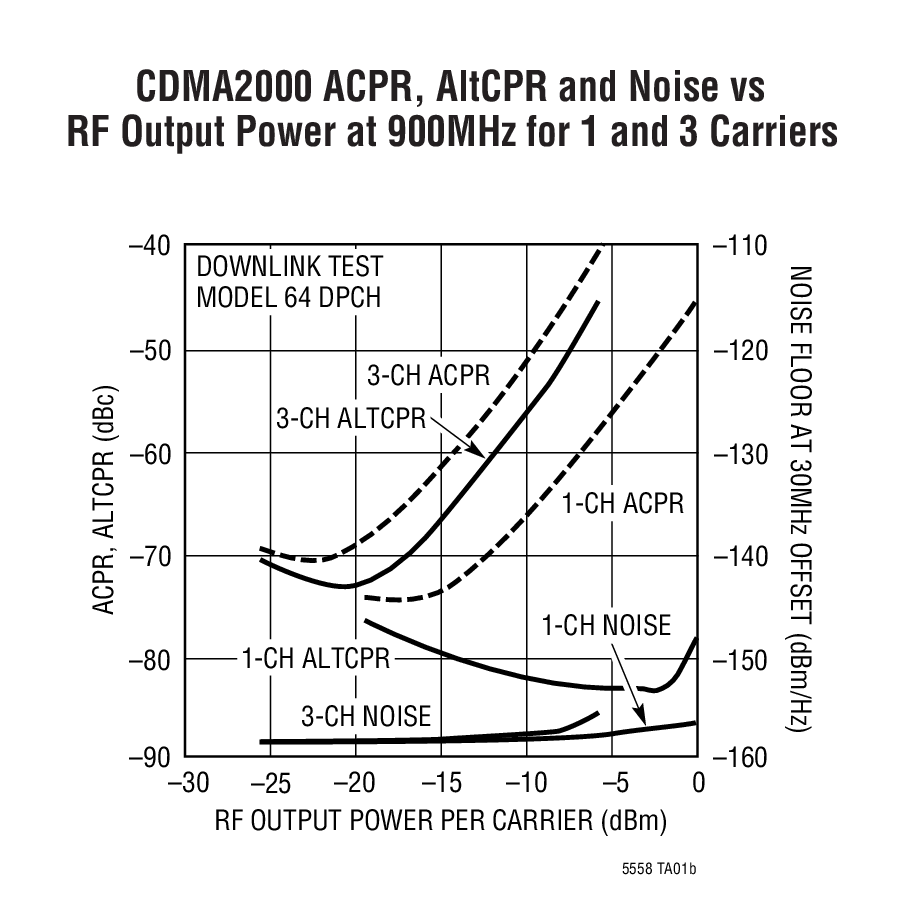

• 3 Channel CDMA2000 ACPR: –70.4dBc at 900MHz
• Integrated LO Buffer and LO Quadrature Phase Generator
• 50Ω AC-Coupled Single-ended LO and RF Ports
• High Impedance Interface to Baseband Inputs with 2.1V Common Mode Voltage

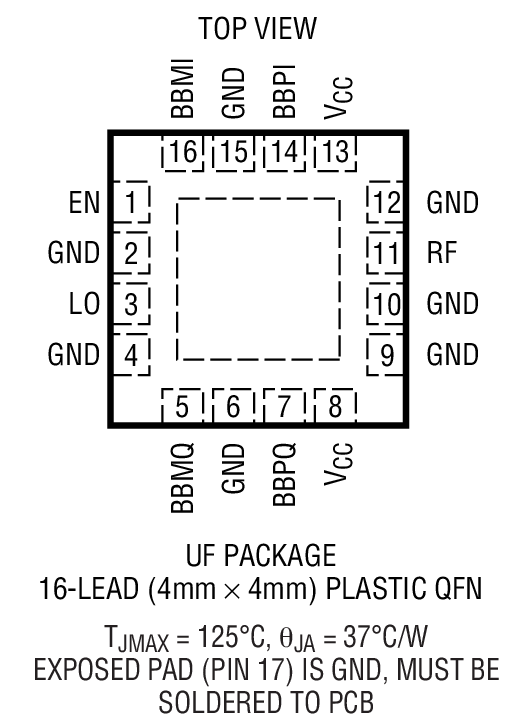

• 16-Lead QFN 4mm × 4mm Package

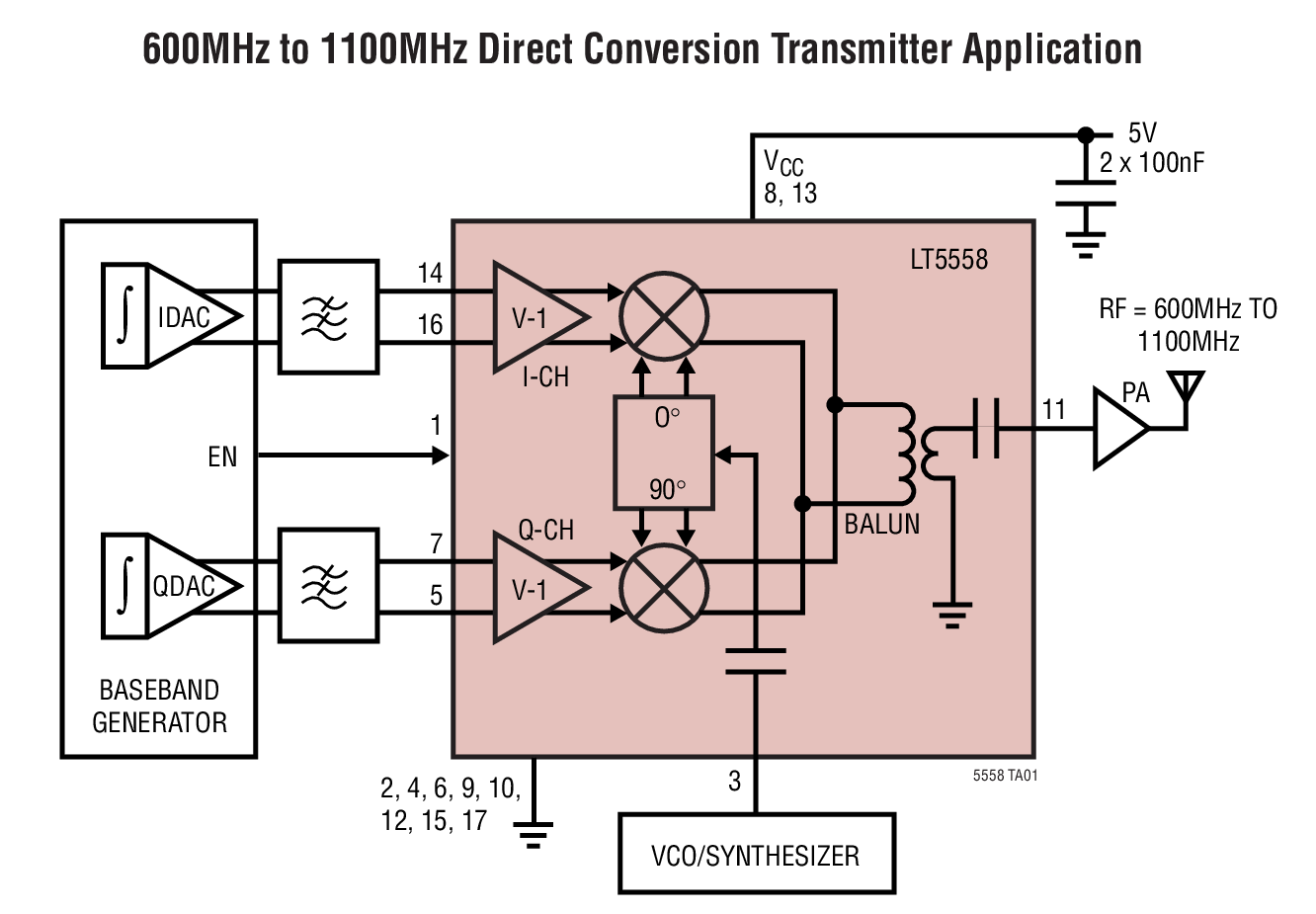

The LT5558 is a direct I/Q modulator designed for high performance wireless applications, including wireless infrastructure. It allows direct modulation of an RF signal using differential baseband I and Q signals. It supports GSM, EDGE, CDMA, CDMA2000, and other systems. It may also be confi gured as an image reject upconverting mixer, by applying 90° phase-shifted signals to the I and Q inputs. The high impedance I/Q baseband inputs consist of voltage-to-current converters that in turn drive doublebalanced mixers. The outputs of these mixers are summed and applied to an on-chip RF transformer, which converts the differential mixer signals to a 50Ω single-ended output. The balanced I and Q baseband input ports are intended for DC coupling from a source with a common-mode voltage level of about 2.1V. The LO path consists of an LO buffer with single-ended input, and precision quadrature generators which produce the LO drive for the mixers. The supply voltage range is 4.5V to 5.25V.
