Analog Devices LTC2255 Product Info

• Sample Rate: 125Msps/105Msps
• Single 3V Supply (2.85V to 3.4V)
• Low Power: 395mW/320mW

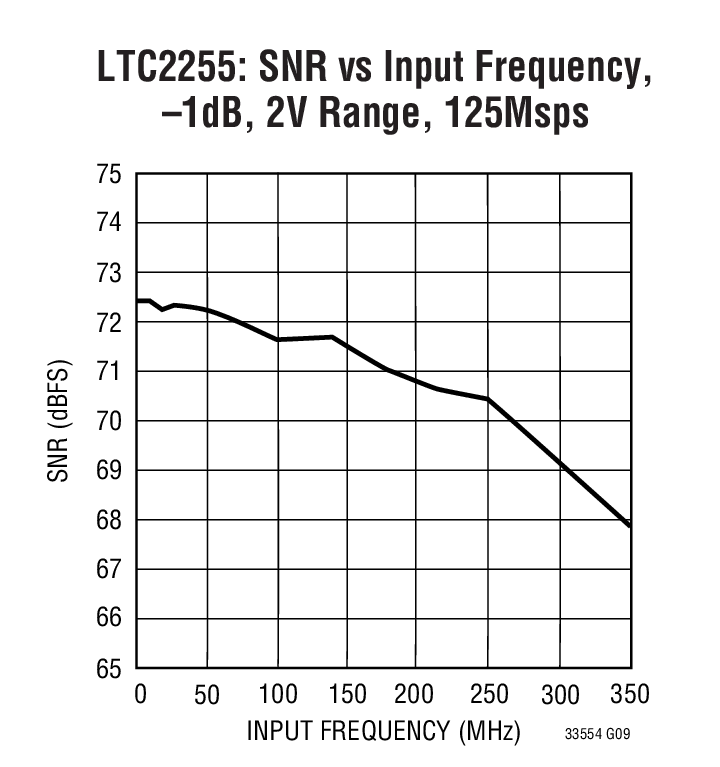

• 72.4dB SNR
• 88dB SFDR
• No Missing Codes
• Flexible Input: 1V_P-P to 2V_P-P Range
• 640MHz Full Power Bandwidth S/H
• Clock Duty Cycle Stabilizer
• Shutdown and Nap Modes
• Pin Compatible Family

  • 125Msps: LTC2253 (12-Bit), LTC2255 (14-Bit)
  • 105Msps: LTC2252 (12-Bit), LTC2254 (14-Bit)
  • 80Msps: LTC2229 (12-Bit), LTC2249 (14-Bit)
  • 65Msps: LTC2228 (12-Bit), LTC2248 (14-Bit)
  • 40Msps: LTC2227 (12-Bit), LTC2247 (14-Bit)
  • 25Msps: LTC2226 (12-Bit), LTC2246 (14-Bit)
  • 10Msps: LTC2225 (12-Bit), LTC2245 (14-Bit)

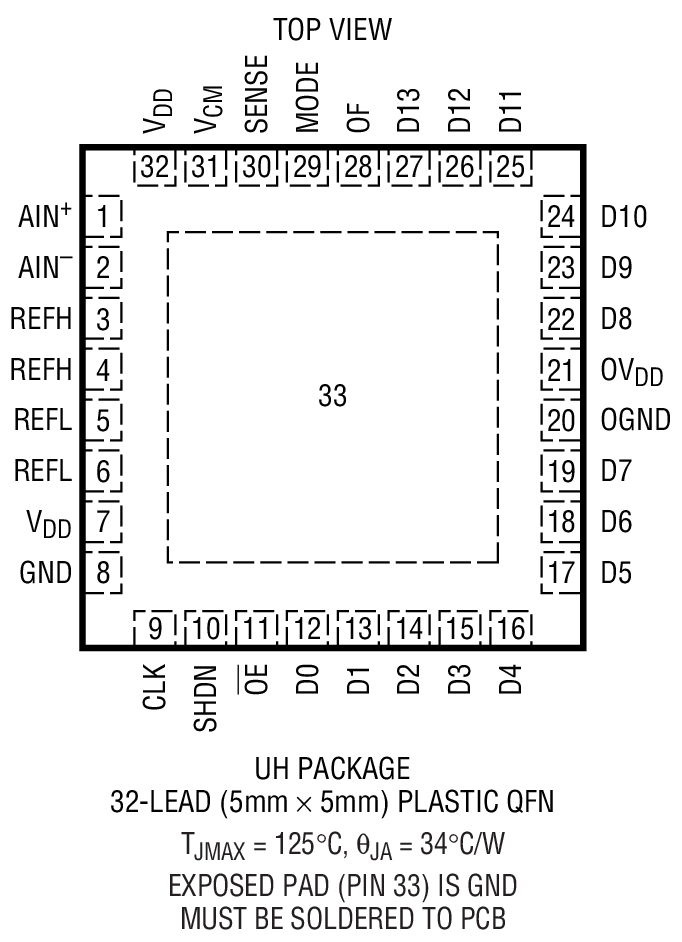

• 32-Pin (5mm × 5mm) QFN Package

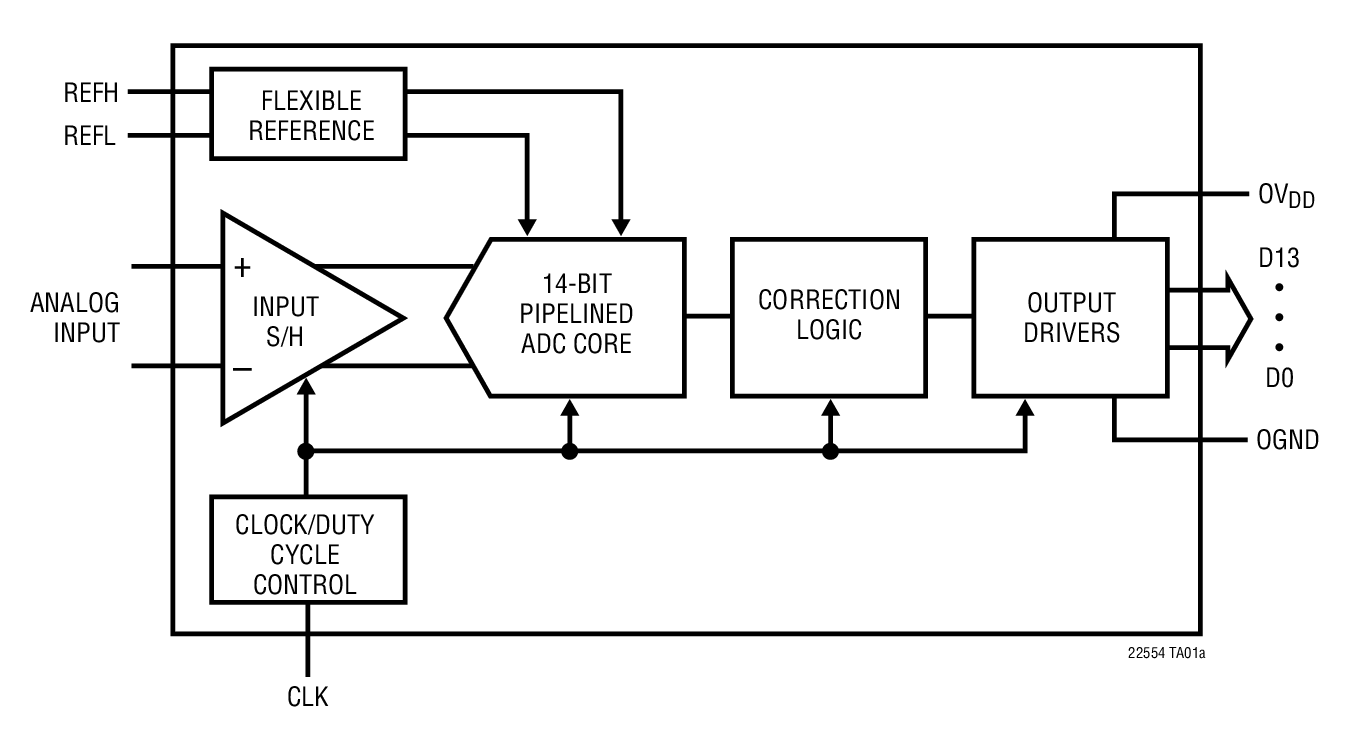

The LTC2255/LTC2254 are 14-bit 125Msps/105Msps, low power 3V A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2255/LTC2254 are perfect for demanding imaging and communications applications with AC performance that includes 72.3dB SNR and 85dB SFDR for signals at the Nyquist frequency.

DC specs include ±1LSB INL (typ), ±0.5LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 1.3 LSB_RMS.

A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.3V logic.

A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.

Applications

• Wireless and Wired Broadband Communication
• Imaging Systems
• Ultrasound
• Spectral Analysis
• Portable Instrumentation
