LTP8800-1A

RECOMMENDED FOR NEW DESIGNS

150A DC/DC μModule Regulator with PMBus Interface

Analog Devices LTP8800-1A Product Info

10 February 2026 5

Features

High Efficiency at High Frequency

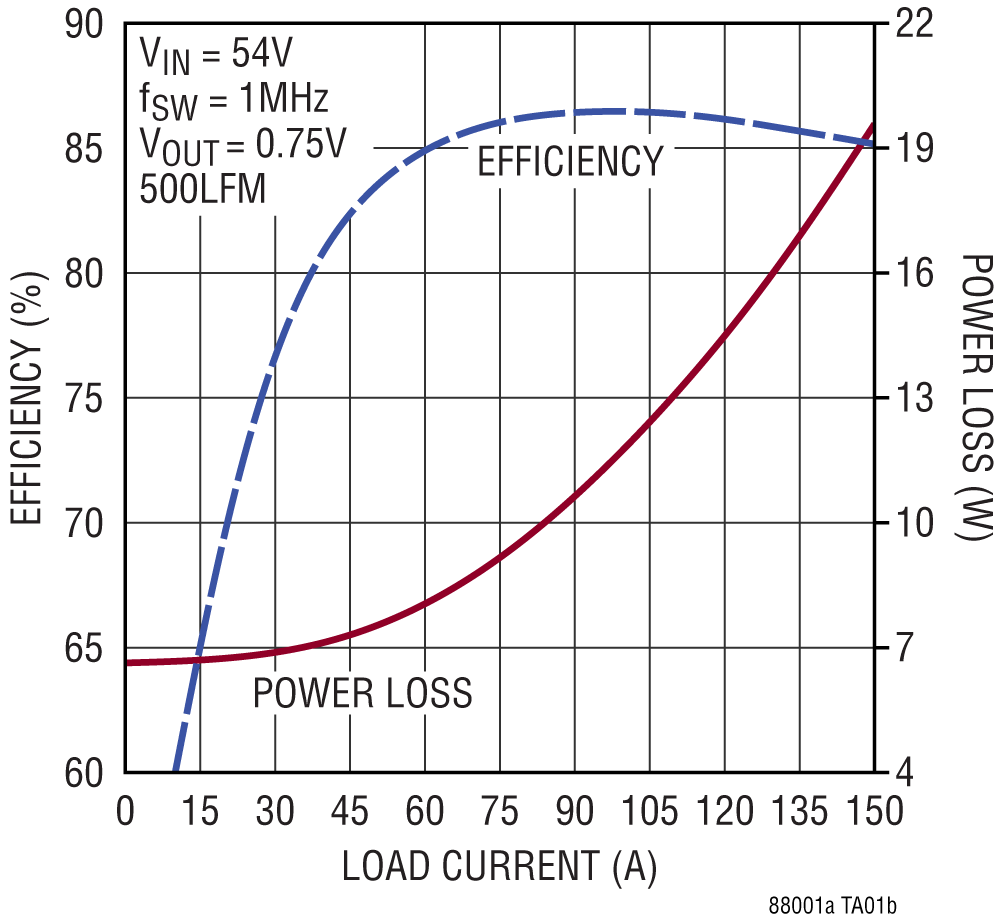

- Up to 87.0% Efficiency at 1 MHz, 54 V_IN to 0.8 V_OUT
PMBus-Compliant I²C Serial Interface
- Monitor Voltage, Current, Temperature and Faults
- Internal EEPROM Fault Log Record
- Digitally Programmable Control Loop
- Program Voltage, Current Limits, Soft-Start/Soft-Stop, Frequency, Synchronization and Phasing, Power-Good, Warnings and Faults

Wide Input Voltage Range: 45 V to 65 V
Output Voltage Range: 0.5 V to 1.1 V
Optimized for 45 V to 65 V_IN to 0.8 V_OUT
±0.5% Maximum DC Output Error with Differential Remote Voltage Sense
±3% Current Readback Accuracy
Parallel and Current Share Multiple μModule^® ICs

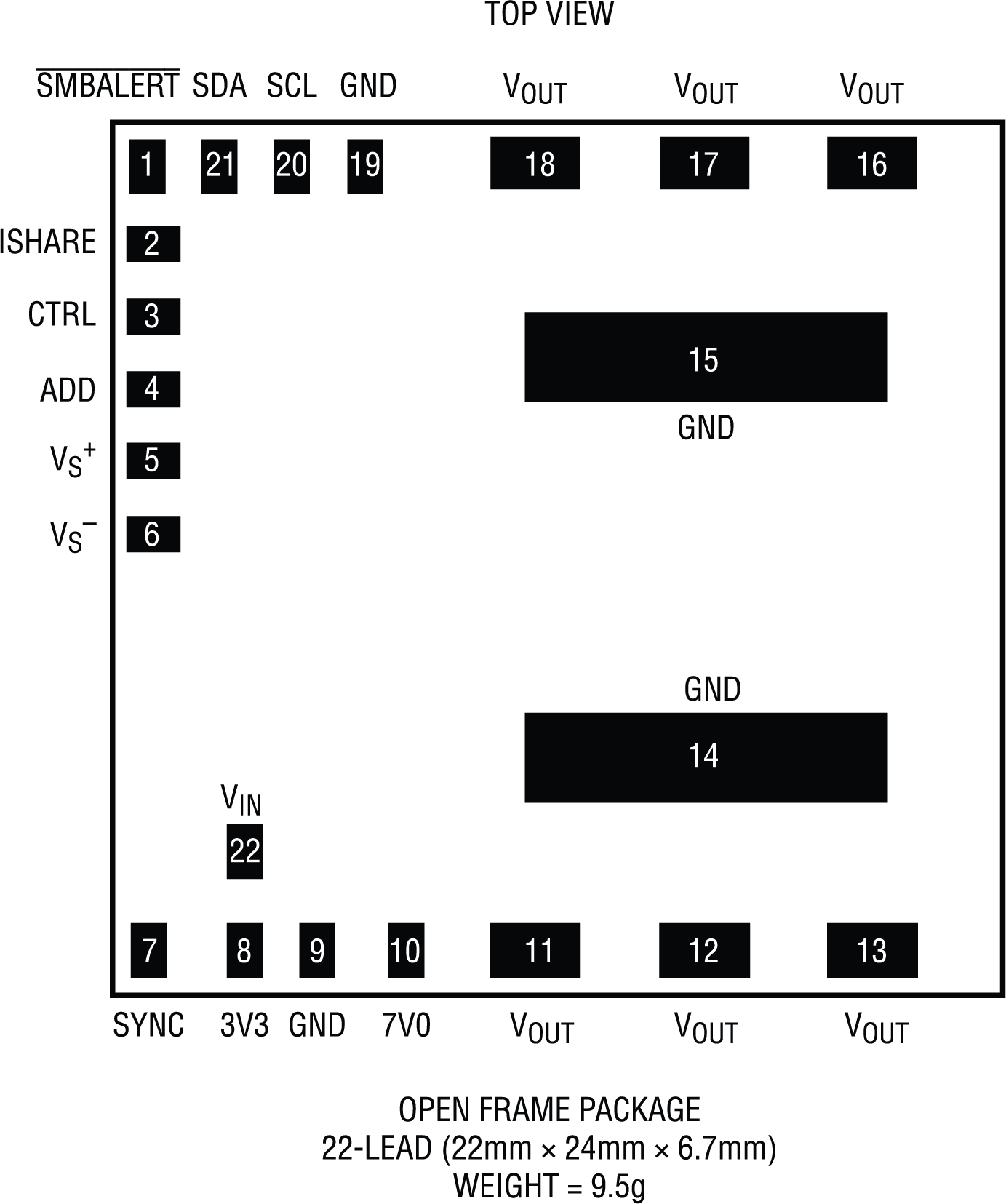

22 mm × 24 mm × 6.7 mm Surface Mount Package

Part details & applications

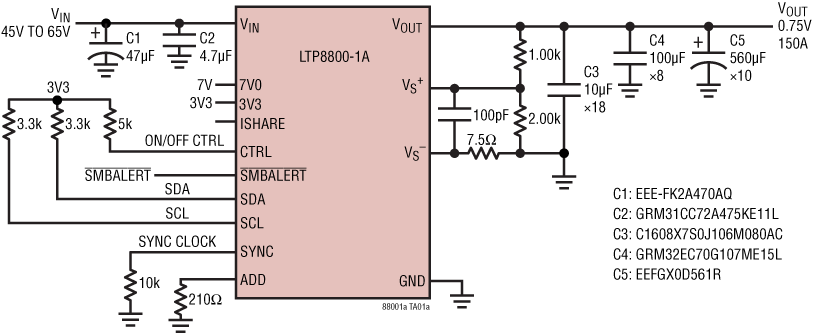

The LTP8800-1A is a 150A step-down μModule regulator that provides microprocessor core voltage from 54V power distribution architecture. It features remote configurability and telemetry monitoring of power management parameters over PMBus—an open standard I²C-based digital interface protocol. The LTP8800-1A is comprised of a programmable digital control system with precision mixed-signal circuitry, EEPROM, power MOSFETs, planar transformer, inductors, and supporting components. Its high level of integration minimizes component count and design time and maximizes flexibility and power density. The LTP8800-1A preserves high efficiency at high conversion ratios by utilizing a resonant switching architecture that eliminates high voltage switching losses.

The LTP8800-1A is available in a 22mm × 24mm × 6.7mm surface-mounted open frame package.

Applications

High Current Distributed Power Systems
Servers, Network, and Storage Equipment
Intelligent Energy Efficient Power Regulation
