LTC1867

PRODUCTION

16-Bit, 8-Channel 200ksps ADCs

Analog Devices LTC1867 Product Info

10 February 2026 9

Features

AEC-Q100 Qualified for Automotive Applications
Sample Rate: 200ksps
16-Bit No Missing Codes and ±2LSB Max INL
8-Channel Multiplexer with:
- Single-Ended or Differential Inputs and
- Unipolar or Bipolar Conversion Modes
SPI/MICROWIRE Serial I/O
Signal-to-Noise Ratio: 89dB

Single 5V Operation
On-Chip or External Reference
Low Power: 1.3mA at 200ksps, 0.76mA at 100ksps
Sleep Mode
Automatic Nap Mode Between Conversions

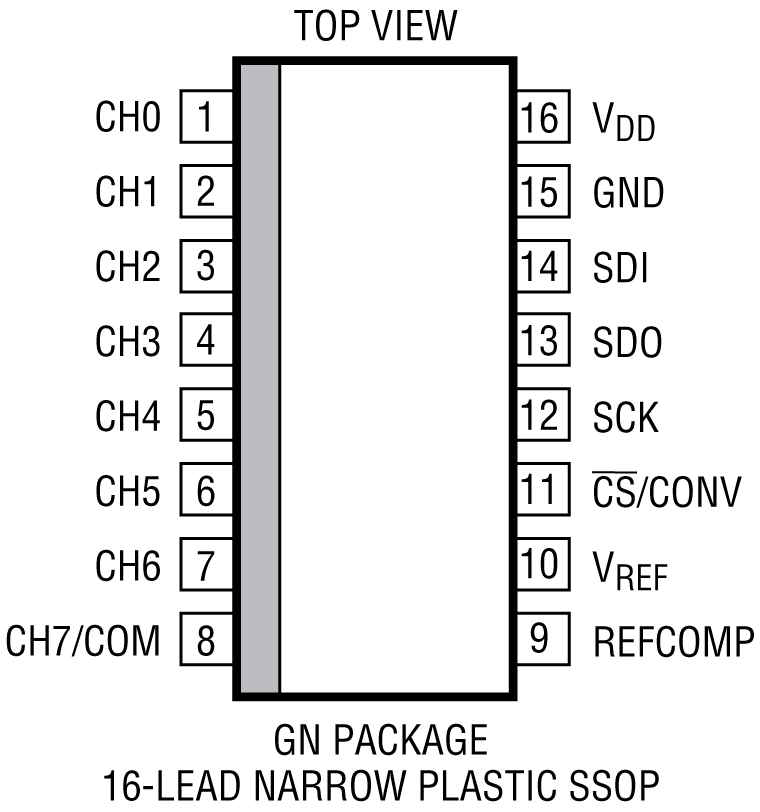

16-Pin Narrow SSOP Package

Part details & applications

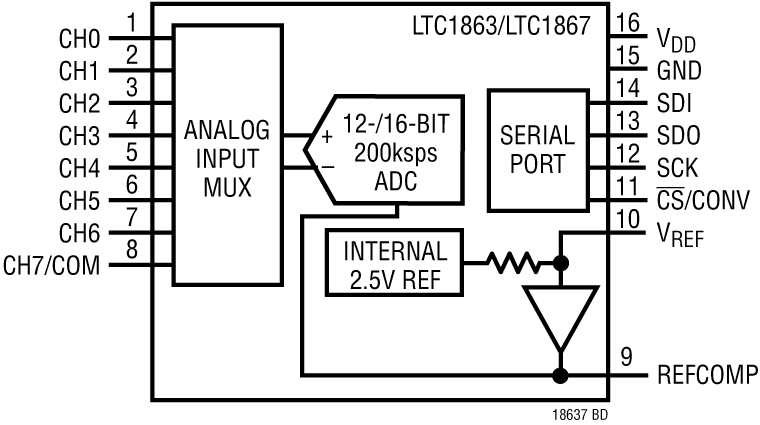

The LTC1863/LTC1867 are pin-compatible, 8-channel 12-/16-bit A/D converters with serial I/O, and an internal reference. The ADCs typically draw only 1.3mA from a single 5V supply.

The 8-channel input multiplexer can be configured for either single-ended or differential inputs and unipolar or bipolar conversions (or combinations thereof). The automatic nap and sleep modes benefit power sensitive applications.

The LTC1867’s DC performance is outstanding with a ±2LSB INL specification and no missing codes over temperature. The signal-to-noise ratio (SNR) for the LTC1867 is typically 89dB, with the internal reference.

Housed in a compact, narrow 16-pin SSOP package, the LTC1863/LTC1867 can be used in space-sensitive as well as low-power applications.

Applications

Industrial Process Control
High Speed Data Acquisition
Battery Operated Systems
Multiplexed Data Acquisition Systems
Imaging Systems
