Analog Devices LT8315 Product Info

• Wide Input Voltage Range: 18V to 560V
• 630V/300mA Integrated Power Switch
• No Opto-Isolator Required for Regulation
• Quasi-Resonant Boundary Mode Operation
• Constant-Current and Constant-Voltage Regulation
• Low-Ripple Light Load Burst Mode^® Operation
• Low Quiescent Current: 70μA
• Programmable Current Limit and Soft-Start
• TSSOP Package with High Voltage Spacing

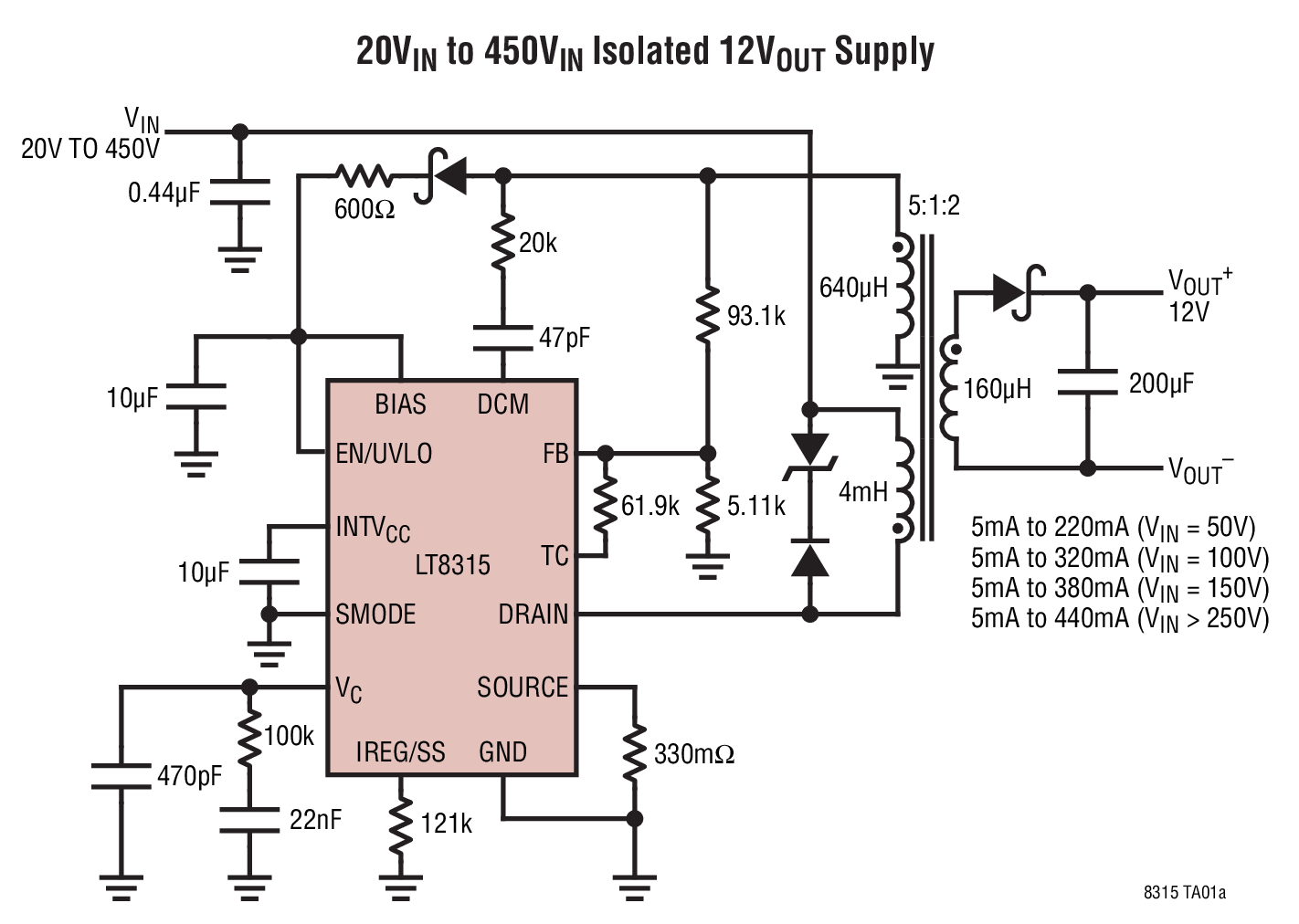

The LT8315 is a high voltage flyback converter with integrated 630V/300mA switch. No opto-isolator is needed for regulation. The device samples the output voltage from the isolated flyback waveform appearing across a third winding on the transformer. Quasi-resonant boundary mode operation improves load regulation, reduces transformer size, and maintains high efficiency.

At start-up, the LT8315 charges its INTV_CC capacitor via a current source attached to the DRAIN pin. During normal operation, the current source turns off and the device draws its power from a third winding on the transformer.

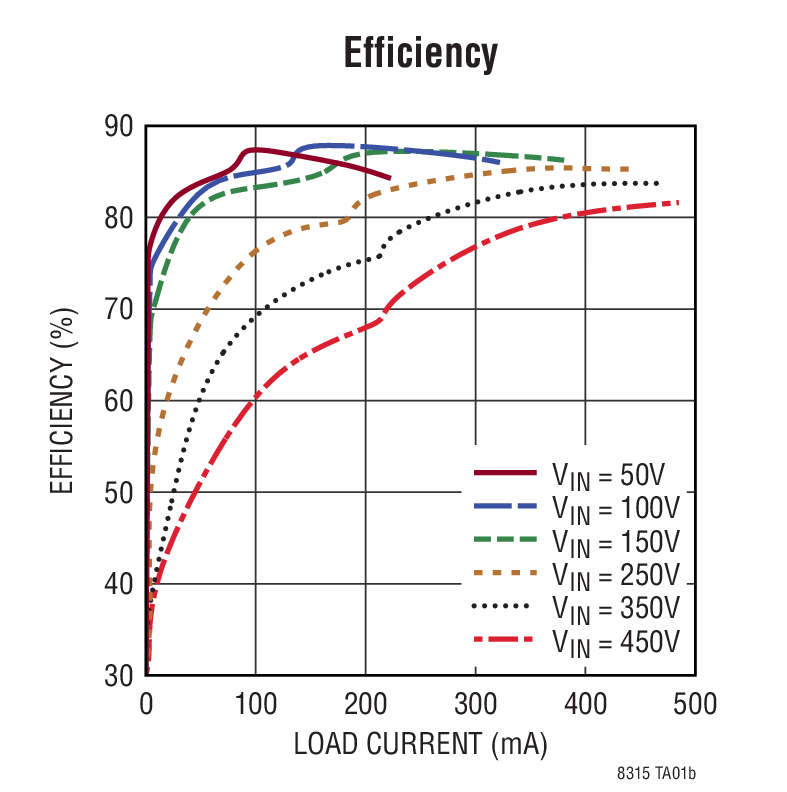

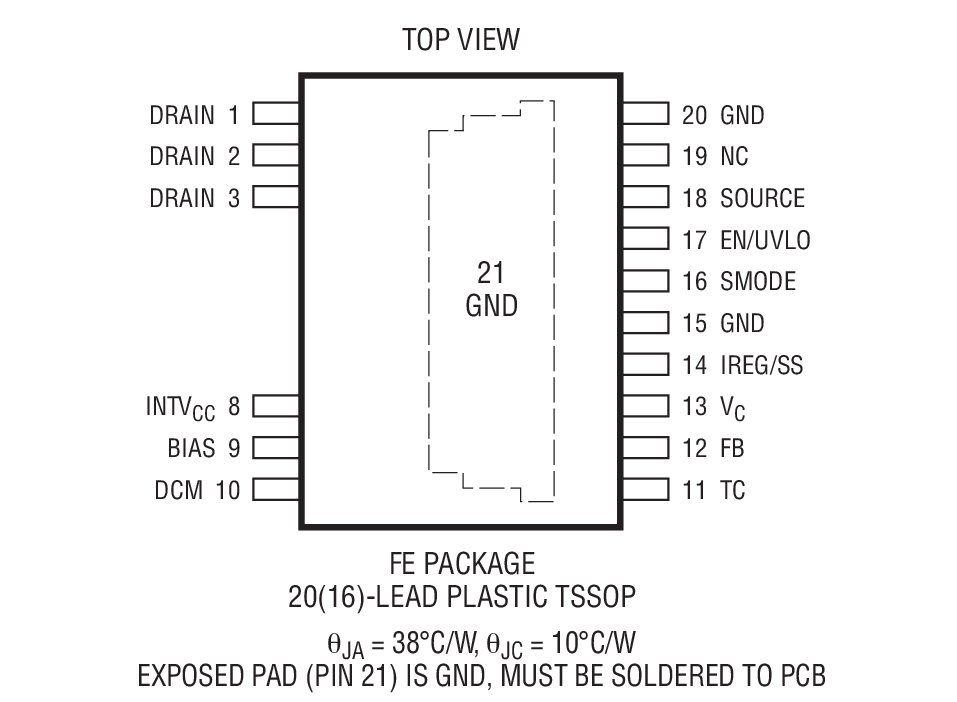

The LT8315 operates from a wide range of input supply voltages and can deliver up to 15W of power. It is available in a thermally enhanced 20-pin TSSOP package with four pins removed for high-voltage spacing.

Applications

• Isolated Telecom, Automotive, Industrial, Medical Power Supplies
• Isolated Off Line Housekeeping Power Supplies
• Electric Vehicles and Battery Stacks
