4-Channel, I2C, Ultralow Power 12-Bit ADC in 20-Lead LFCSP/TSSOP

Analog Devices AD7091R-5 Product Info

10 February 2026 6

Features

  • I2C-compatible serial interface supports standard and fast modes
  • Ultralow power: 90 μW typical at 3 V in fast mode
  • Specified for VDD of 2.7 V to 5.25 V
  • On-chip accurate 2.5 V reference, 5 ppm/°C typical drift
  • 4 single-ended analog input channels
  • ALERT function
  • BUSY function
  • Autocycle mode
  • Wide input bandwidth
    • 68 dB signal-to-noise ratio (SNR) typical at input frequency of 1 kHz
  • Flexible power/throughput rate management
  • No pipeline delays
  • Power-down mode
    • 550 nA typical at VDD = 5.25 V
    • 435 nA typical at VDD = 3 V

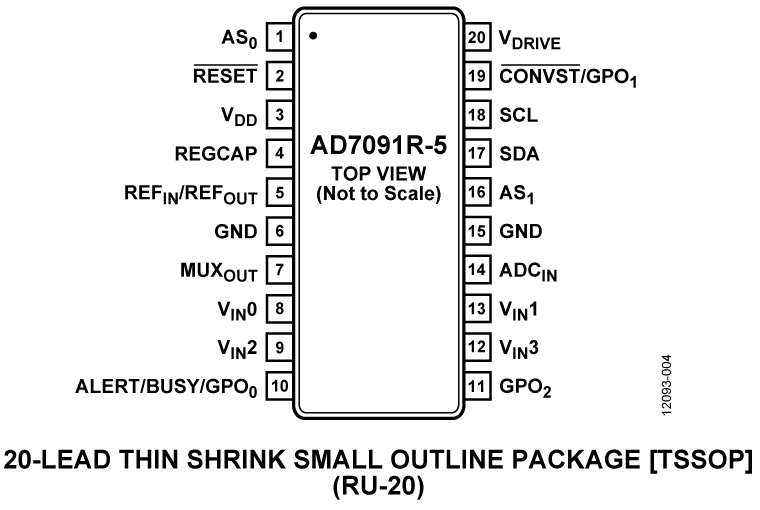

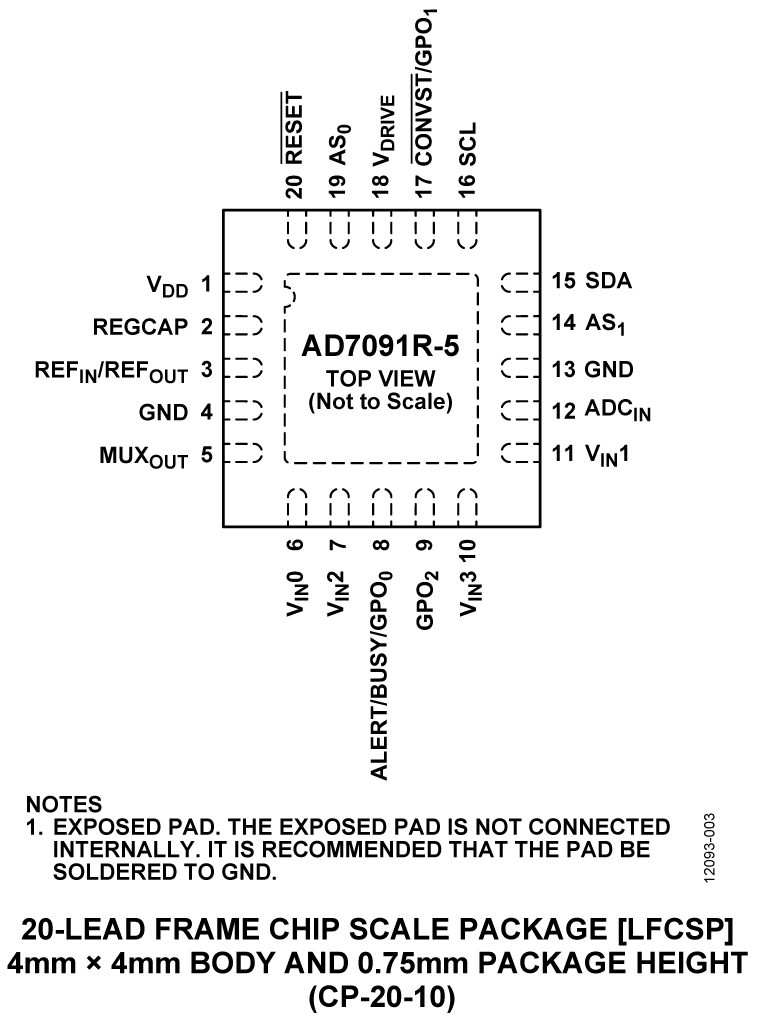

  • 20-lead LFCSP and TSSOP packages
  • Temperature range: −40°C to +125°C

Part details & applications

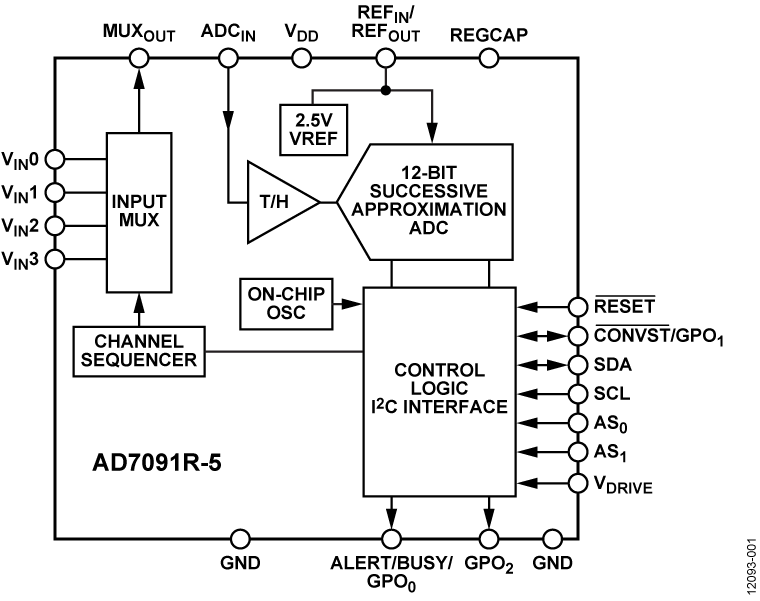

The AD7091R-5 is a 12-bit, multichannel, ultralow power, successive approximation analog-to-digital converter (ADC). The AD7091R-5 operates from a single 2.7 V to 5.25 V power supply and typically consumes only 24 µA at a 3 V supply in fast mode.

The AD7091R-5 provides a 2-wire serial interface compatible with I2C interfaces. The conversion process can be controlled by a sample mode via the CONVST pin, an autocycle mode selected through software control, or a command mode in which conversions occur across I2C write operations.

The device contains a wide bandwidth track-and-hold amplifier that can handle input frequencies up to 1.5 MHz. The AD7091R-5 also features an on-chip conversion clock, an on-chip accurate 2.5 V reference, and a programmable out-of-bounds user alert function.

The AD7091R-5 offers four single-ended analog input channels with a channel sequencer that allows a preprogrammed selection of channels to be converted sequentially.

The AD7091R-5 uses advanced design techniques to achieve ultralow power dissipation without compromising performance. It also features flexible power management options. An on-chip configuration register allows the user to set up different operating conditions. These include power management, alert functionality, busy indication, channel sequencing, and general-purpose output pins. The MUXOUT and ADCIN pins allow signal conditioning of the multiplexer output before acquisition by the ADC.

Applications

  • Battery powered systems
    • Personal digital assistants
    • Medical instruments
    • Mobile communications
  • Instrumentation and control systems
  • Data acquisition systems
  • Optical sensors
  • Diagnostic/monitoring fu
