Analog Devices MAX152 Product Info

• Single +3.0V to +3.6V Supply
• 1.8µs Conversion Time
• Power-Up in 900ns
• Internal Track/Hold
• 400ksps Throughput
• Low Power:
  • 1.5mA (Operating Mode)
  • 1µA (Power-Down Mode)
• 300kHz Full-Power Bandwidth
• 20-Pin DIP, SO and SSOP Packages
• No External Clock Required
• Unipolar/Bipolar Inputs
• Ratiometric Reference Inputs
• 2.7V Version Available -Contact Factory

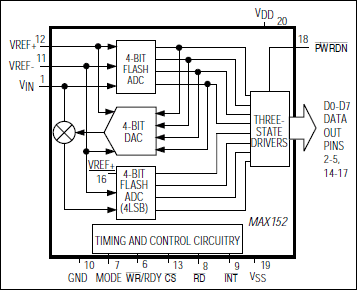

The MAX152 high-speed, microprocessor (µP)-compatible, 8-bit analog-to-digital converter (ADC) uses a half-flash technique to achieve a 1.8µs conversion time, and digitizes at a rate of 400k samples per second (ksps). It operates with single +3V or dual ±3V supplies and accepts either unipolar or bipolar inputs.

A POWERDOWN-bar pin reduces current consumption to a typical value of 1µA. The part returns from power-down and acquires an input signal in less than 900ns, providing large reductions in supply current in applications with burst-mode input signals.

The MAX152 is DC and dynamically tested. Its µP interface appears as a memory location or input/output port that requires no external interface logic. The data outputs use latched, three-state buffered circuitry for direct connection to a µP data bus or system input port. The ADC's input/reference arrangement enables ratiometric operation. A fully-assembled evaluation kit provides a proven PC board layout to speed prototyping and design.

Applications

• Audio Systems
• Battery-Powered Applications
• Burst Mode® Data Acquisition
• Digital Signal Processing (DSP)
• High-Speed Servo Loops
• Portable Radios
• Telecommunications
