LT3001

RECOMMENDED FOR NEW DESIGNS

36V 4W No-Opto Isolated Flyback Converter

Analog Devices LT3001 Product Info

10 February 2026 5

Features

4V to 36V Input Voltage Range
1.2A, 65V Internal DMOS Power Switch
Low Quiescent Current
Boundary Mode Operation at Heavy Load
Low-Ripple Burst Mode^® Operation at Light Load
Minimum Load <0.5% (Typ) of Full Output
V_OUT Set with a Single External Resistor

No Transformer Third Winding or Opto-Isolator Required for Regulation
Accurate EN/UVLO Threshold and Hysteresis
Internal Compensation and Soft-Start
Output Short-Circuit Protection

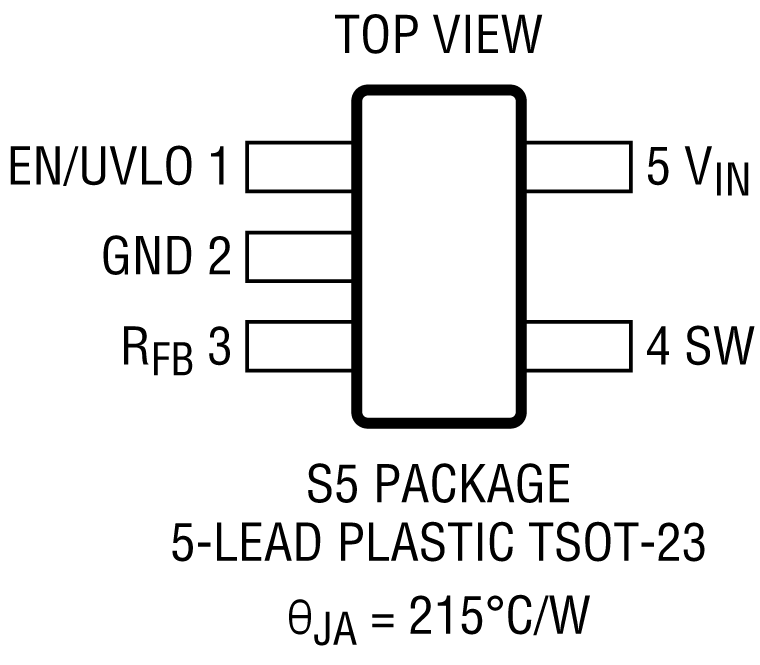

5-Lead TSOT-23 Package

Part details & applications

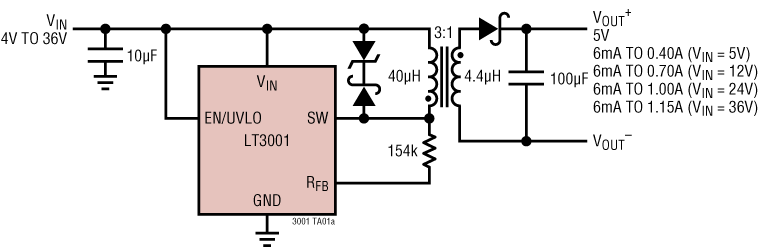

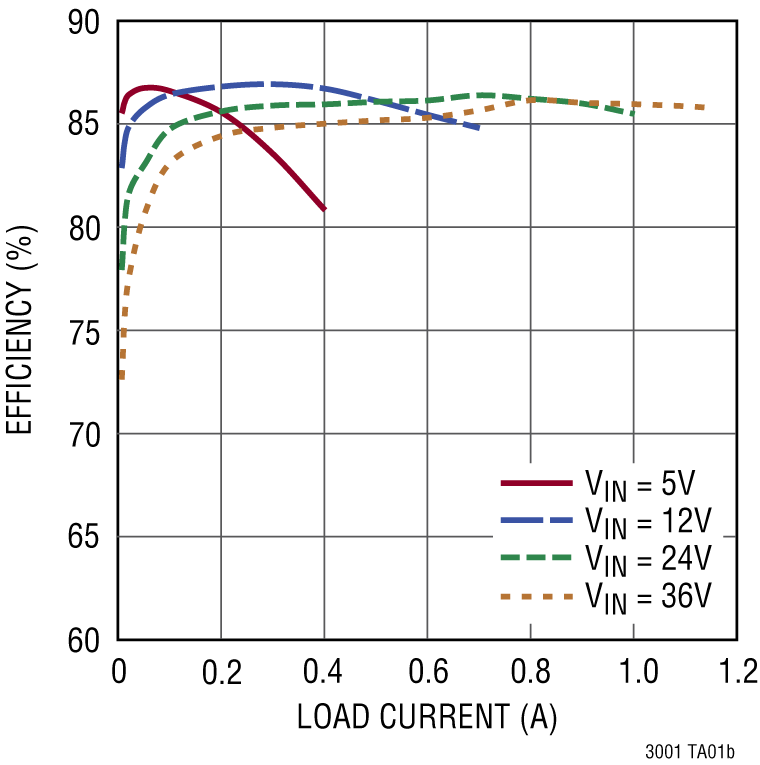

The LT3001 is a micropower isolated flyback converter. By sampling the isolated output voltage directly from the primary-side flyback waveform, the part requires no third winding or opto-isolator for regulation. The output voltage is programmed with a single external resistor. Internal compensation and soft-start further reduce external component count. Boundary mode operation provides a small magnetic solution with excellent load regulation. Low ripple Burst Mode operation maintains high efficiency at light load while minimizing the output voltage ripple. A 1.2A, 65V DMOS power switch is integrated along with all high voltage circuitry and control logic into a 5-lead ThinSOT^™ package.

The LT3001 operates from an input voltage range of 4V to 36V and can deliver up to 4W of isolated output power. The high level of integration and the use of boundary and low ripple burst modes result in a simple to use, low component count, and high efficiency application solution for isolated power delivery.

Applications

Isolated Telecom, Automotive, Industrial, Medical Power Supplies
Isolated Auxiliary/Housekeeping Power Supplies
