HMC729

RECOMMENDED FOR NEW DESIGNS

26 GHz, T Flip-Flop w/Reset

Analog Devices HMC729 Product Info

10 February 2026 5

Features

Supports Clock Frequencies up to 26 GHz
Differential & Singe-Ended Operation
Fast Rise and Fall Times: 18/17 ps
Low Power Consumption: 270 mW typ.

Propagation Delay: 95 ps
Single Supply: -3.3V

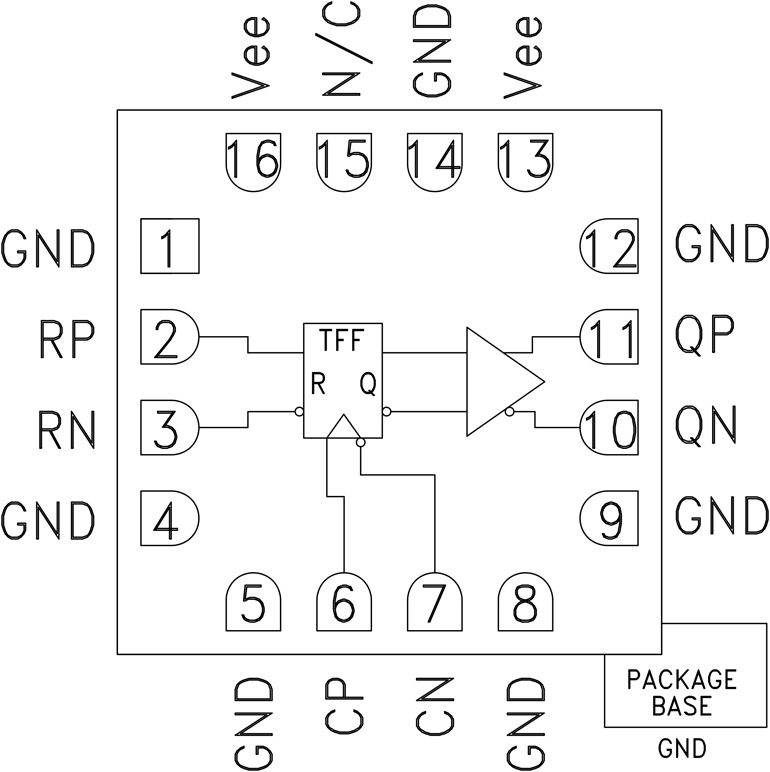

16 Lead Ceramic 3×3mm SMT Package: 9mm²

Part details & applications

The HMC729LC3C is a T Flip-Flop w/Reset designed to support clock frequencies as high as 26 GHz. During normal operation, with the reset pin not asserted, the output toggles from its prior state on the positive edge of the clock. This results in a divide-by-two function of the clock input. Asserting the reset pin forces the Q output low regardless of the clock edge state (asynchronous reset assertion). Reversing the clock inputs allows for negative-edge triggered applications.

All input signals to the HMC729LC3C are terminated with 50 to ground on-chip, and may be either AC or DC coupled. Outputs can be connected directly to a 50 terminated system, while DC blocking capacitors may be used if the terminating system is 50 to a non-ground DC voltage. The HMC729LC3C operates from a single -3.3V DC supply and is available in a ceramic RoHS compliant 3x3 mm SMT package.

APPLICATIONS

Serial Data Transmission up to 26 Gbps
High Speed Frequency Divider (up to 26 GHz)
Broadband Test & Measurement
RF ATE Applications
