HMC7056AG

LAST TIME BUY

Ka-Band Block Upconverter with HPA

Analog Devices HMC7056AG Product Info

10 February 2026 7

Features

Compact Design
Dual L Band Inputs
Dual up conversion to ensure no phase inversion
WR28 Output with Isolator
PA Enable

Digital Gain control
Thermal Monitoring and Gain Compensation
Size: 5.72” x 4.51” x 1.63”
Weight: 2.11 lbs
Designed for Military Environments

Part details & applications

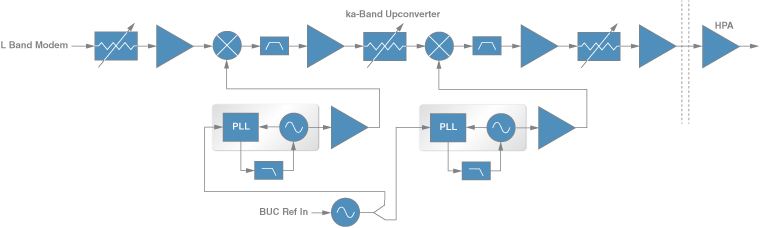

The HMC7056A is a fully integrated Ka-Band Block Upconverter with HPA. The unit is designed for single carrier use in satellite communications. It covers both Commercial and Military bands and is designed to meet military environmental conditions.

Applications

Satellite communications
Commercial
Military
