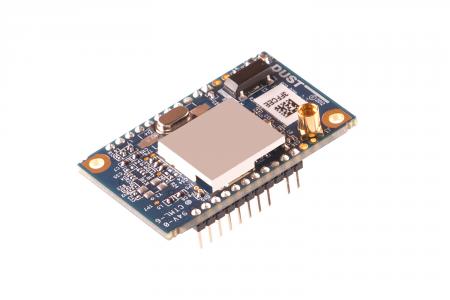

SmartMesh WirelessHART wireless sensor networks are self managing, low power networks built from wireless nodes called motes. The LTP5900-WHM is the 22-pin SmartMesh WirelessHART mote product in the Eterna® family of IEEE 802.15.4 printed circuit board assembly solutions, featuring a highly-integrated, low power radio design by Analog Devices as well as an ARM Cortex-M3 32-bit microprocessor running Analog Devices' embedded SmartMesh WirelessHART networking software.
The LTP5900-WHM provides a forward compatible solution for customers using Analog Devices' M2510 PCB module. Also available are the LTP5901-WHM module with chip antenna and the LTP5902-WHM module with MMCX antenna connector.
With Analog Devices' time-synchronized WirelessHART networks, all motes in the network may route, source or terminate data, while providing many years of battery powered operation. The SmartMesh WirelessHART software provided with the LTP5900-WHM is fully tested and validated, and is readily configured via a software Application Programming Interface (API).
Network Features
| Features | Benefit |
| Time Synchronized Channel Hopping Communications | >99.999% netw
