Analog Devices DS8024 Product Info

• Analog Interface and Level Shifting for IC Card Communication
• ±8kV (min) ESD (IEC) Protection on Card Interfaces
• Internal IC Card Supply-Voltage Generation:
  • 5.0V ±5%, 80mA (max)
  • 3.0V ±8%, 65mA (max)
• Automatic Card Activation and Deactivation Controlled by Dedicated Internal Sequencer
• I/O Lines from Host Directly Level Shifted for Smart Card Communication
• Flexible Card Clock Generation, Supporting External Crystal Frequency Divided by 1, 2, 4, or 8
• High-Current, Short-Circuit and High-Temperature Protection

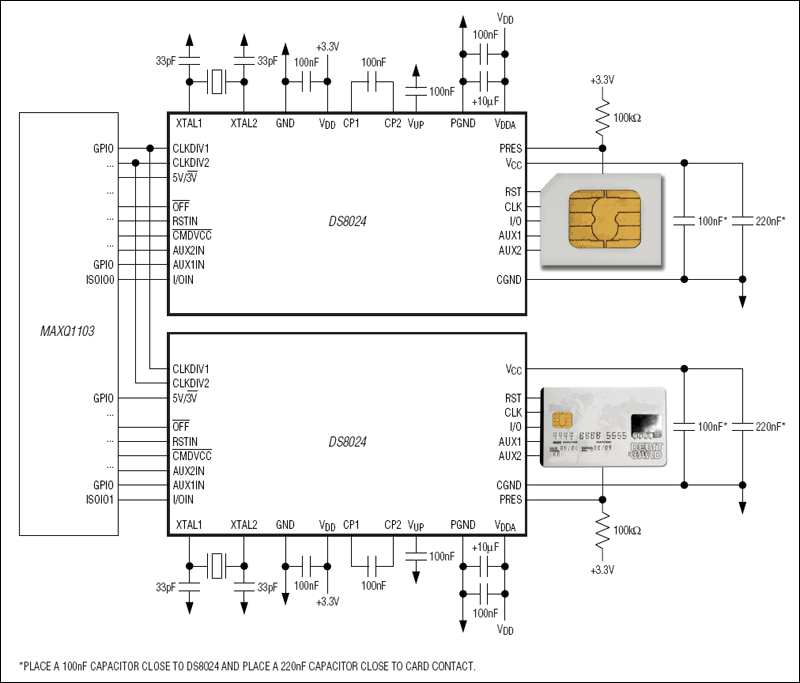

The DS8024 smart card interface IC is a low-cost, analog front-end for a smart card reader, designed for all ISO 7816, EMV^®, and GSM11-11 applications. The DS8024 is a pin-for-pin drop-in replacement for the NXP TDA8024 and is offered in 28-pin TSSOP and SO packages.

Applications requiring support for 1.8V smart cards or requiring low power should consider the DS8113, which achieves lower active- and stop-mode power with minimal changes to application hardware and software.

Applications

• Access Control
• Automated Teller Machines
• Banking Applications
• Debit/Credit Payment Terminals
• Pay/Premium Television
• PIN Pads
• POS Terminals
• Set-Top Box Conditional Access
• Telecommunications
