Analog Devices MAX1605 Product Info

• Adjustable Output Voltage up to 30V
• 20mA at 20V from a Single Li+ Battery
• 88% Efficiency
• Up to 500kHz Switching Frequency
• Selectable Inductor Current Limit (125mA, 250mA, or 500mA)
• 18µA Operating Supply Current
• 0.1µA Shutdown Current
• Avaiable in Two Small Packages
  • 6-Pin TDFN
  • 6-Pin SOT23

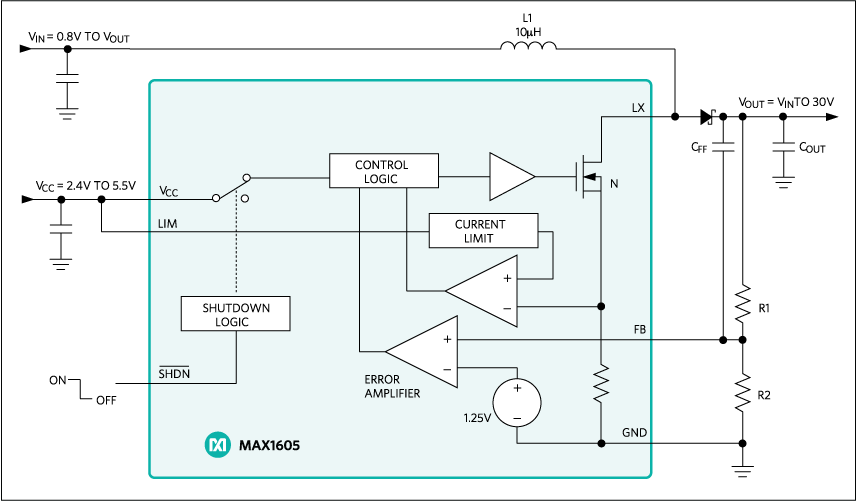

The MAX1605 boost converter contains a 0.5A internal switch in a tiny 6-pin SOT23 package. The IC operates from a +2.4V to +5.5V supply voltage, but can boost battery voltages as low as 0.8V up to 30V at the output.

The MAX1605 uses a unique control scheme providing the highest efficiency over a wide range of load conditions. An internal 0.5A MOSFET reduces external component count, and a high switching frequency (up to 500kHz) allows for tiny surface-mount components. The current limit can be set to 500mA, 250mA, or 125mA, allowing the user to reduce the output ripple and component size in low-current applications.

Additional features include a low quiescent supply current and a shutdown mode to save power. The MAX1605 is ideal for small LCD panels with low current requirements, but can also be used in other applications. A MAX1605EVKIT evaluation kit (EV kit) is available to help speed up design time.

Applications

• Cell Phones/Cordless Phones
• Handy Terminals
• LCD Bias Generators
• Organizers
• Palmtop Computers
• PDAs and Other Handheld Devices
