Analog Devices MAX866 Product Info

• 0.8V to 6.0V Input Supply Voltage
• 0.9V Guaranteed Start-Up Supply Voltage
• > 80% Efficiency Over Wide Load Range
• 100µA No-Load Battery Current (V_OUT = 3.3V)
• 1µA Shutdown Mode
• Up to 250kHz Switching Frequency
• ±1.5% Reference Tolerance
• Low-Battery Detector (LBI/LBO)
• Available in Ultra-Small 8-Pin µMAX® Package (1.11mm high)
• Circuit Fits in 0.2in²

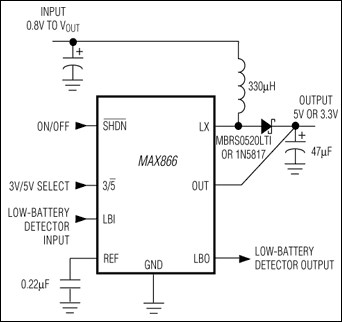

The MAX866 and MAX867 are ultra-small, high-efficiency, CMOS, step-up, DC-DC switching regulators for 1-cell battery-powered systems. The MAX866 accepts a positive input voltage between 0.8V and V_OUT and converts it to a higher, pin-selectable output voltage of 3.3V or 5V. The MAX867 adjustable version accepts 0.8V to 6.0V input voltages and generates a higher adjustable output voltage in the 2.7V to 6.0V range. Typical efficiencies are greater than 80%. Typical no-load supply current is 100µA (1µA in shutdown).

The MAX866/MAX867 combine ultra-low quiescent supply current and high efficiency to give maximum battery life. Its high switching frequency permits the use of small, low-cost inductors and capacitors. Additionally, internal peak-current limiting protects the IC.

Applications

• 1-Cell Battery-Operated Equipment
• Backup Supplies
• Detectors
• Pagers
• Remote Controls
