The ADV7127 is a high speed, DAC on a single monolithic chip. It consists of a 10-bit, video DAC with an on-board voltage reference, complementary outputs, a standard TTL input interface, and high impedance analog output current sources.

The ADV7127 has a 10-bit wide input port. A single 5 V or 3.3 V power supply and clock are all that are required to make the device functional.

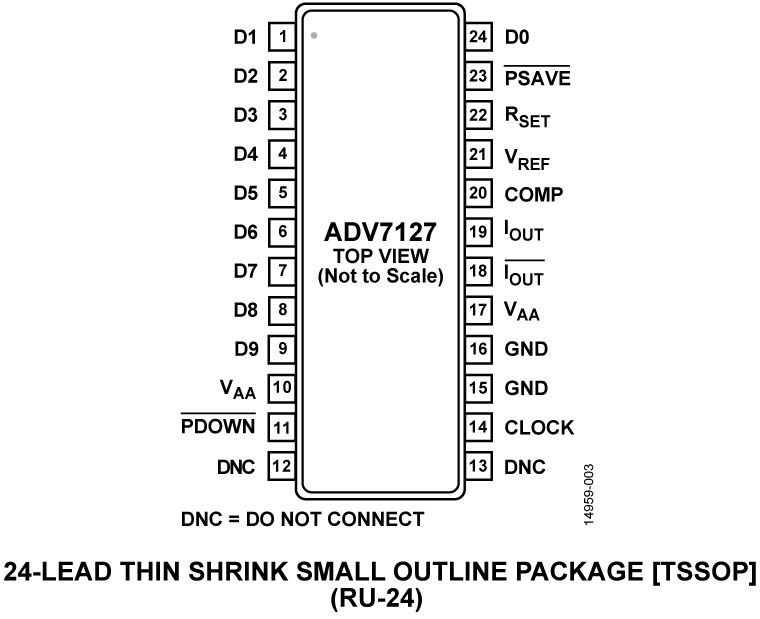

The ADV7127 is fabricated in a complementary metal-oxide semiconductor (CMOS) process. Its monolithic CMOS construction ensures greater functionality with low power dissipation. The ADV7127 is available in a 24-lead TSSOP package which includes a power-down mode and an on-board voltage reference circuit.

PPRODUCT HIGHLIGHTS

1. 240 MSPS throughput.
2. Guaranteed monotonic to 10 bits.
3. Compatible with a wide variety of high resolution color graphics systems including RS-343A and RS-170.

APPLICATIONS

• Digital video systems (1600 × 1200 at 100 Hz)
• High resolution color graphics
• Digital radio modulation
• Image processing
• Instrumentation
• Video signal reconstruction
• Direct digital synthesis (DDS)
• Wireless local area networks (LANs)
