ADUM6010

PRODUCTION

Integrated DC-to-DC Converter

Analog Devices ADUM6010 Product Info

10 February 2026 5

Features

isoPower integrated, isolated dc-to-dc converter
Regulated 3.15 V to 5.25 V output
Up to 150 mW output power

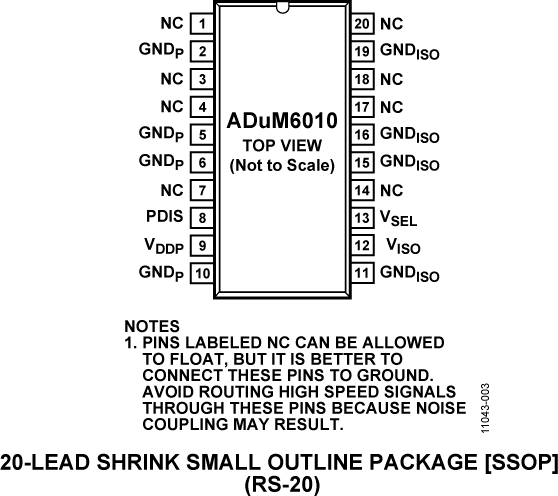

20-lead SSOP package with 5.3 mm creepage
High temperature operation: 105°C
High common-mode transient immunity: >25 kV/µs

Safety and regulatory approvals

UL 1577

V_ISO = 3750 V rms for 1 minute

IEC/CSA 62368-1
IEC/CSA 61010-1
DIN EN IEC 60747-17 (VDE 0884-17) (pending)

V_IORM = 600 V peak

Part details & applications

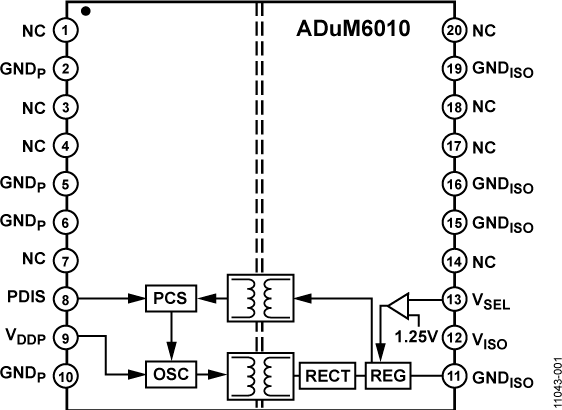

The ADuM6010 is an integrated, isolated dc-to-dc converter. Based on the Analog Devices, Inc., iCoupler^® technology, the dc-to-dc converter provides regulated, isolated power, adjustable between 3.15 V and 5.25 V. Input supply voltages can range from slightly below the required output to significantly higher.

The iCoupler chip-scale transformer technology is used for isolated logic signals and for the magnetic components of the dc-to-dc converter. The result is a small form factor, total isolation solution.

isoPower uses high frequency switching elements to transfer power through its transformer. Special care must be taken during printed circuit board (PCB) layout to meet emissions standards.

Applications

Power supply start-up bias and gate drives
Isolated sensor interfaces
Industrial PLCs
