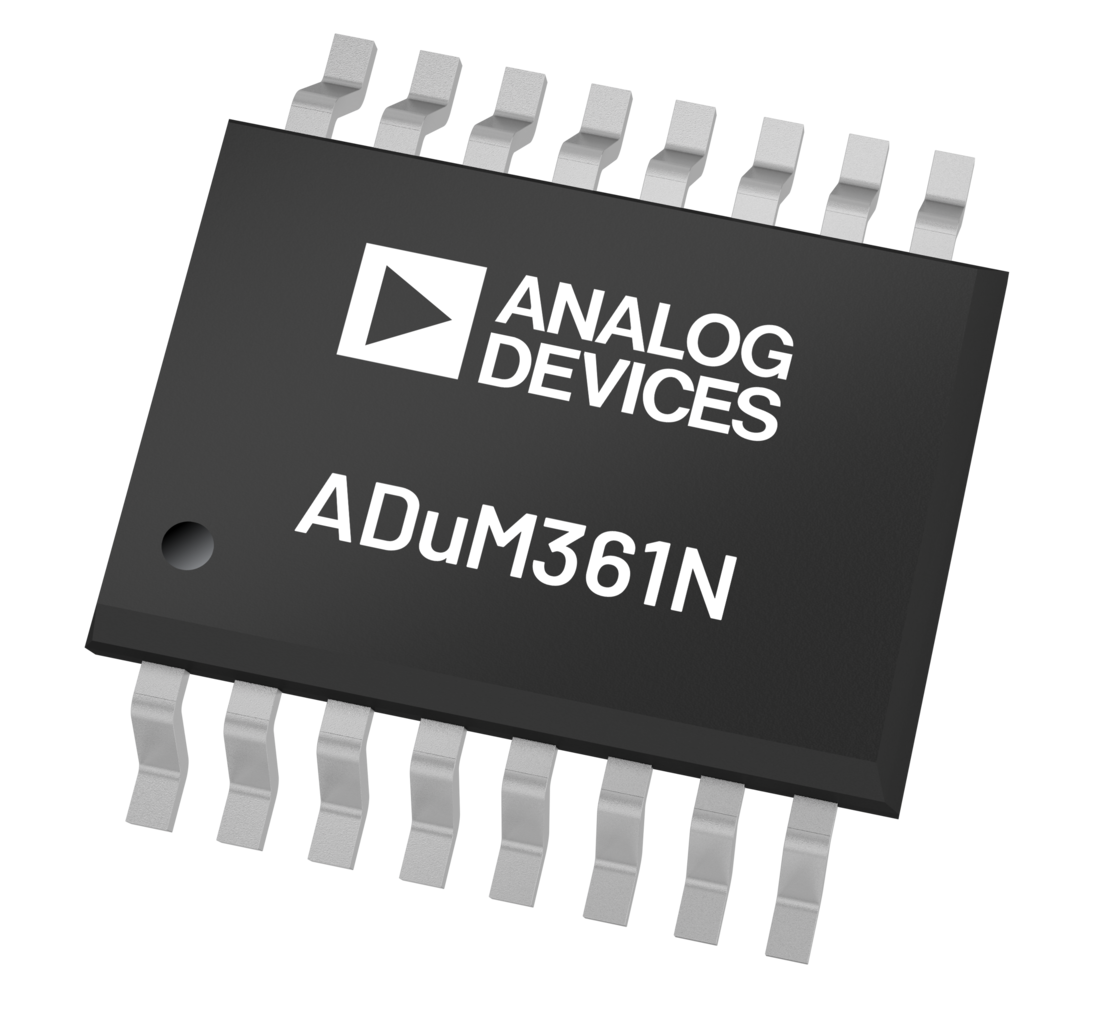

ADUM361N

RECOMMENDED FOR NEW DESIGNS

3.0 kV rms 6-Channel Digital Isolator

Analog Devices ADUM361N Product Info

10 February 2026 6

Features

High common-mode transient immunity: 180 kV/μs typical
High robustness to radiated and conducted noise
Low propagation delay
- 6.2 ns typical (10 ns maximum) for 5 V operation
Low dynamic power consumption, <1.65 mA/ch at 1 Mbps
2.25 V to 5.5 V level translation
150 Mbps maximum guaranteed data rate for 5 V operation
High temperature operation: 125°C

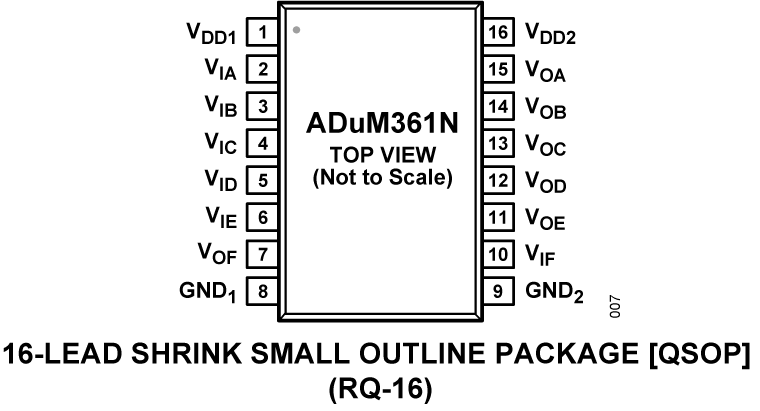

16-lead, RoHS compliant, QSOP package
Safety and regulatory approvals
- UL 1577
  - V_ISO = 3000 V_RMS for 1 minute

DIN EN IEC 60747-17
- V_IORM = 636 V_PEAK
IEC/EN/CSA 62368-1
IEC/CSA 60601-1
IEC/CSA 61010-1
CQC GB 4943.1 (pending)

±8 kV IEC 61000-4-2 ESD protection across isolation barrier
±8 kV HBM ESD protection on input/output pins
Fail-safe high (N1) or low (N0) options
AEC-Q100 qualified for automotive applications

Part details & applications

The ADuM360N/ADuM361N/ADuM362N/ADuM363N are 6-channel digital isolators based on Analog Devices, Inc., iCoupler^® technology. Combining high speed, complementary metal-oxide semiconductor (CMOS) and back-to-back monolithic air core transformer technology, these isolation components provide outstanding performance characteristics and meet CISPR 32/EN 55032 Class B limits at 5 Mbps. The maximum propagation delay is 10 ns with a pulse-width distortion of less than 3 ns at 5 V operation. Channel matching is tight at 3.0 ns maximum.

The ADuM360N/ADuM361N/ADuM362N/ADuM363N data channels are independent and are available in a variety of configurations with a withstand voltage rating of 3 kV rms (see Figure 28 in Data Sheet). The devices operate with the supply voltage on either side ranging from 2.25 V to 5.5 V, which provides compatibility with lower voltage systems as well as enabling voltage translation functionality across the isolation barrier.

Two different fail-safe options are available, by which the outputs transition to a predetermined state when the input power supply is not applied.

APPLICATIONS

Serial-peripheral interface (SPI) data converter isolation
RS-485 and controller area network with flexible data rate (CAN FD) industrial field bus isolation
PWM controller signal isolation
General-purpose multichannel isolation
