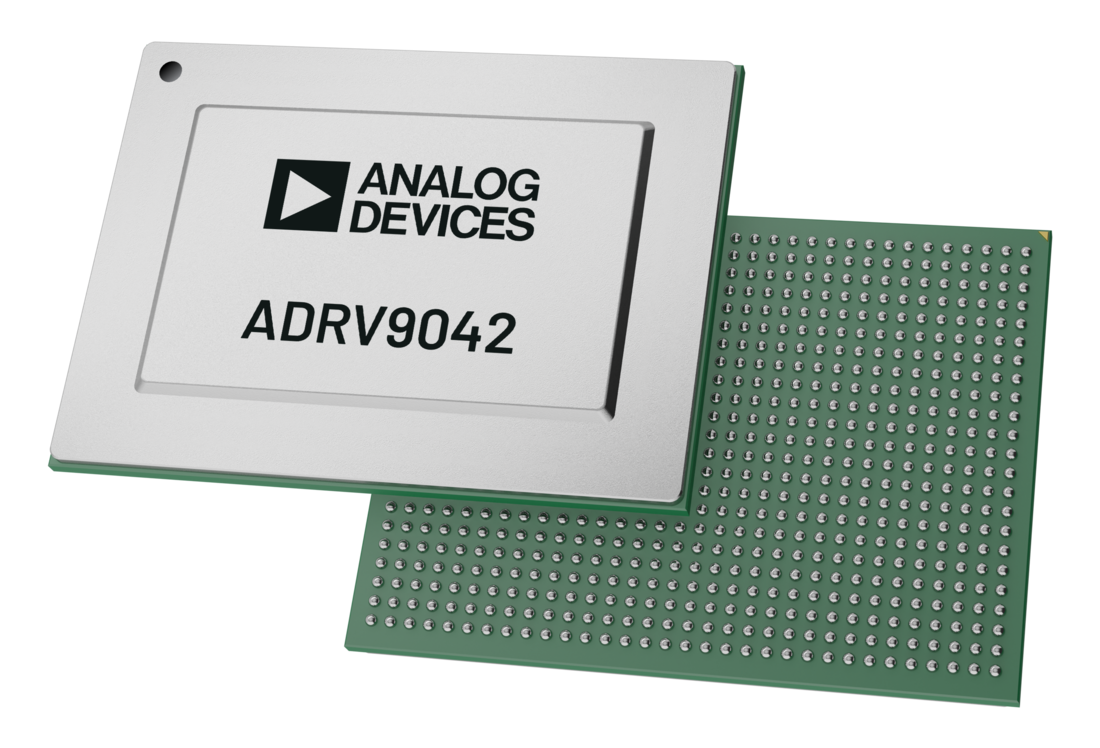

ADRV9042

PRE-RELEASE

8T8R SoC with DFE, 400 MHz iBW RF Transceiver

Analog Devices ADRV9042 Product Info

10 February 2026 5

Features

Highly integrated transceiver
8 transmit (Tx), 8 receive (Rx), and 2 observation receivers (ORx)
LO tuning range: 600 MHz to 7125 MHz
RF range: 500 MHz to 7455 MHz1
Zero-IF architecture reduces system size, weight, and power (SWaP)
- Initial and run time calibrations maintain high performance
Dual fully integrated fractional-N RF synthesizers
Dual external LO inputs supporting operation up to 6 GHz.
Multichip phase synchronization for all local oscillator (LO) and baseband clocks
Single and multiband (N × 2T2R/4T4R) capability
4 individual band profiles within tunable range (band profiles define bandwidth and aggregate sampling rate of a channel)
Fully integrated DPD supporting up to 400 MHz iBW/OBW
Supports up to 660 MHz instantaneous BW, 400 MHz occupied BW on RF front end with DFE enabled
Supports up to 400 MHz instantaneous/occupied BW with DFE disabled

Supports JESD204B and JESD204C digital interface
Simplifying thermal and power consumption challenges
10.44 W power consumption for the TDD mode, full DFE features enabled use case with 100 MHz iBW/OBW2
125°C maximum junction temperature for intermittent operation, 110°C for continuous (operating lifetime impact at >110°C can be offset by operation at <110°C based on acceleration factors)
Fully integrated DFE (DPD, CDUC, CDDC, and CFR) engine reduces FPGA resources, halves SERDES lane rate, and simplifies designs
- DPD adaptation engine for power amplifier linearization
- CDUC/CDDC—maximum of 8 component carriers (CCs) per each transmitter/receiver channel
- Multistage CFR engine
Low power monitor and sleep modes

Part details & applications

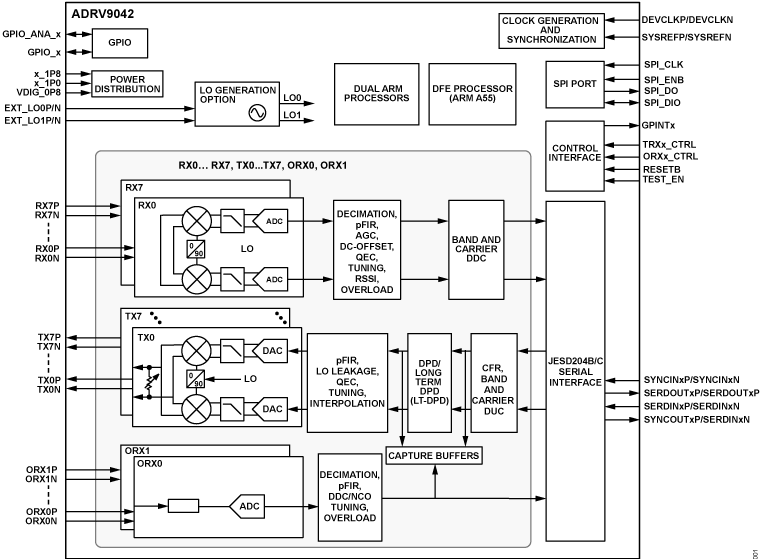

The ADRV9042 is a highly integrated, RF transceiver with an integrated, digital front end (DFE) designed for use in instrumentation and aerospace, defense applications, and advanced communications systems. The transceiver contains eight transmitters, two observation receivers, eight receivers, integrated LO and clock synthesizers, and digital signal processing functions. The ADRV9042 is a high performance and low power radio with DFE support that has been designed for use in general-purpose applications operating from low frequencies. The ADRV9042 has a tuning range from 600 MHz to 7125 MHz and covers all UHF, industrial, scientific, and medical (ISM) and cellular frequency bands including WiFi 6E. Support beyond these frequencies can be enabled via external upconverters and downconverters available at Analog Devices, Inc.

Please see the Data Sheet for the full description.

APPLICATIONS

Tactical communications
Phased array radars
Electronic warfare
Wireless test and measurement
Portable instruments
Time division duplexing (TDD)
Frequency division duplexing (FDD)
