AD9912

RECOMMENDED FOR NEW DESIGNS

1 GSPS Direct Digital Synthesizer with 14-Bit DAC

Analog Devices AD9912 Product Info

10 February 2026 4

Features

1 GSPS internal clock speed (up to 400 MHz output directly)
Integrated 1 GSPS 14-bit DAC
48-bit frequency tuning word with 4 μHz resolution
Differential HSTL comparator
Flexible system clock input accepts either crystal or external reference clock
On-chip low noise PLL REFCLK multiplier
2 SpurKiller channels
Low jitter clock doubler for frequencies up to 750 MHz
Single-ended CMOS comparator; frequencies of <150 MHz

Programmable output divider for CMOS output
Serial I/O control
Excellent dynamic performance
Software controlled power-down

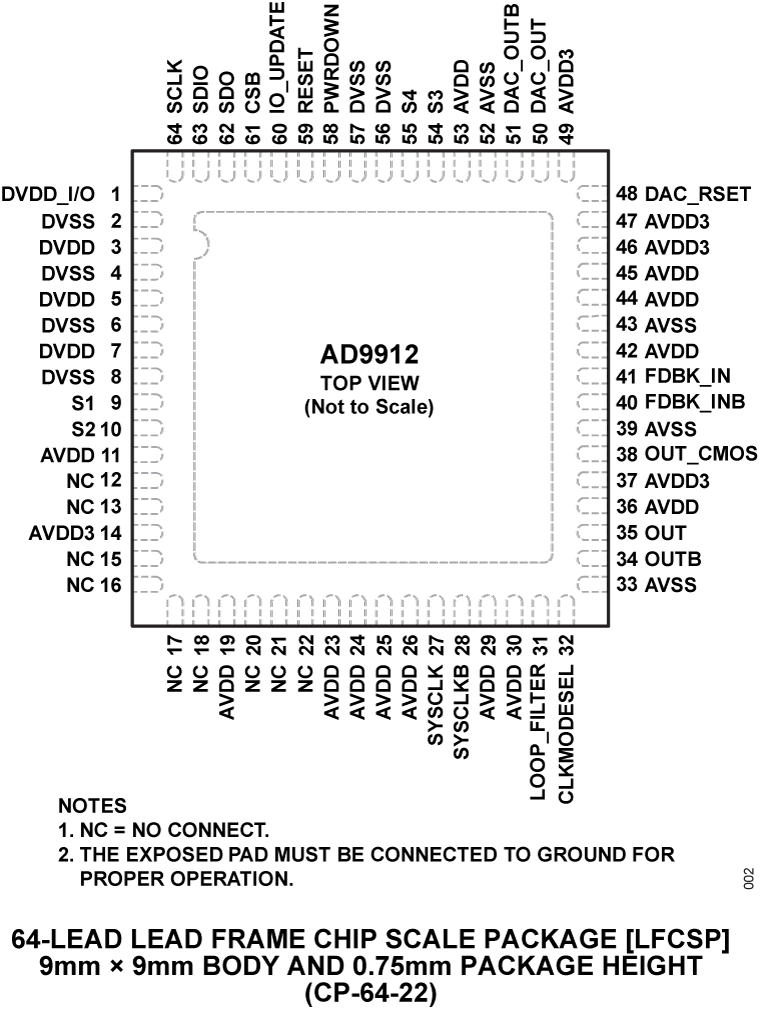

Available in two 64-lead LFCSP packages
Residual phase noise @ 250 MHz
- 10 Hz offset: −113 dBc/Hz
- 1 kHz offset: −133 dBc/Hz
- 100 kHz offset: −153 dBc/Hz
- 40 MHz offset: −161 dBc/Hz

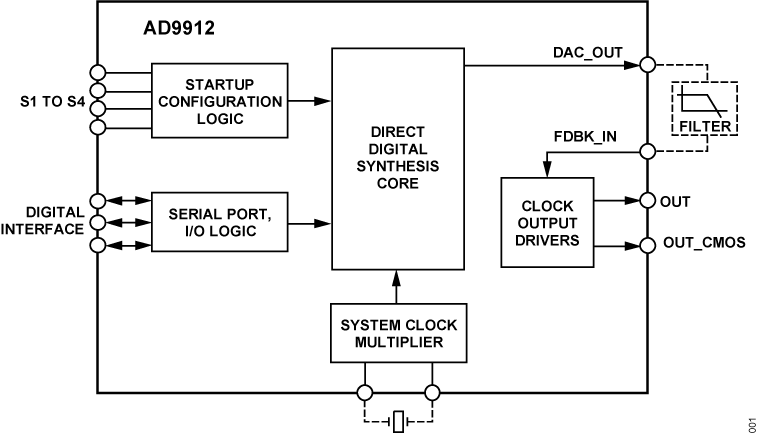

Part details & applications

The AD9912 is a direct digital synthesizer (DDS) that features an integrated 14-bit digital-to-analog converter (DAC). The AD9912 features a 48-bit frequency tuning word (FTW) that can synthesize frequencies in step sizes no larger than 4 μHz. Absolute frequency accuracy can be achieved by adjusting the DAC system clock.

The AD9912 also features an integrated system clock phase-locked loop (PLL) that allows for system clock inputs as low as 25 MHz.

The AD9912 operates over an industrial temperature range, spanning −40°C to +85°C.

APPLICATIONS

Agile LO frequency synthesis
Low jitter, fine tune clock generation
Test and measurement equipment
Wireless base stations and controllers
Secure communications
Fast frequency hopping
