Analog Devices MAX5106 Product Info

• On-Chip EEPROM Stores DAC States
• Power-On Reset Initialization of All Registers to Prestored States
• +2.7V to +5.5V Single-Supply Operation
• Four 8-Bit DACs with Independent High and Low Reference Inputs (MAX5105)
• Ground to V_DD Reference Input Range
• Rail-to-Rail Output Buffers
• Low 1mA Supply Current
• Low Power 10µA (max) Shutdown Mode
• Small 20- or 16-Pin QSOP Package
• SPI™/QSPI™/MICROWIRE™-Compatible Serial Interface
• Asynchronous MUTE Input (MAX5105)
• RDY/BSY-bar Pin to Indicate Memory Status (MAX5105)
• Wide Operating Temperature Range (-40°C to +85°C)

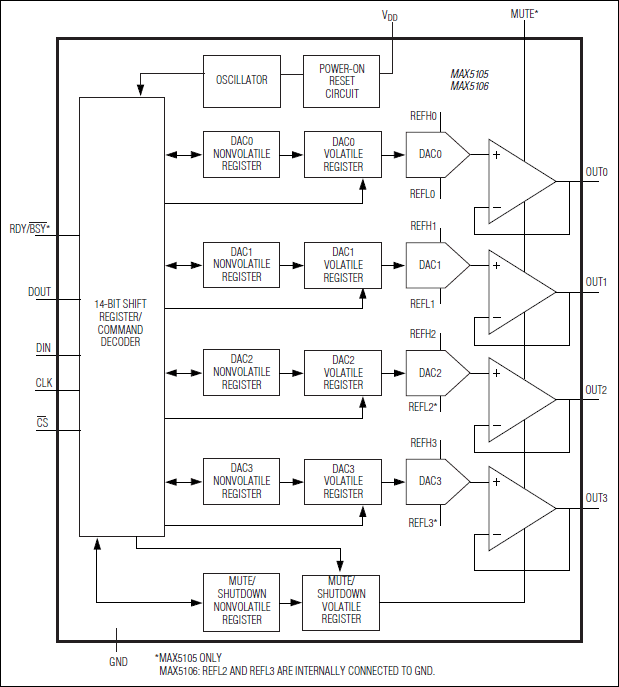

The MAX5105/MAX5106 nonvolatile, quad, 8-bit digital-to-analog converters (DACs) operate from a single +2.7V to +5.5V supply. An internal EEPROM stores the DAC states even after power is removed. Data from these nonvolatile registers automatically initialize the DAC outputs and operating states during power-up. Precision internal buffers swing rail-to-rail, and the reference input range includes both ground and the positive rail.

The MAX5105/MAX5106 feature a software-controlled 10µA shutdown mode and a mute state that drives the DAC outputs to their respective REFL_ voltages. The MAX5105 includes an asynchronous MUTE input, as well as a RDY/BSY-bar output that indicates the status of the nonvolatile memory.

The MAX5105 is available in 20-pin QSOP and 20-pin wide SO packages, and the MAX5106 is available in a 16-pin QSOP package.

Applications

• Automotive Engine Control
• Automotive Passenger Compartment
• Cell Phone Base Stations
• Industrial Sensor Transmitters/Transducers
• Industrial Sensor Transmitters/Transducers
