Analog Devices AD5691R Product Info

• Ultrasmall package: 2 mm × 2 mm, 8-lead LFCSP
• High relative accuracy (INL): ±2 LSB maximum at 16 bits
• Low drift, 2.5 V reference: 2 ppm/°C typical
• Selectable span output: 2.5 V or 5 V
• Total unadjusted error (TUE): ±0.06% of FSR maximum

  • Offset error: ±1.5 mV maximum
  • Gain error: ±0.05 % of FSR maximum
• Low glitch: 0.1 nV-sec
• High drive capability: 20 mA
• Low power: 1.2 mW at 3.3 V
• 1.8 V V_LOGIC compatible
• Wide operating temperature range: −40°C to +105°C

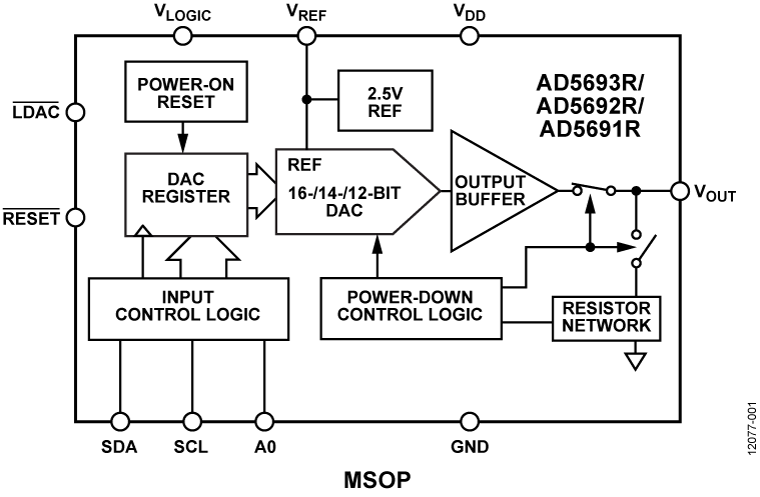

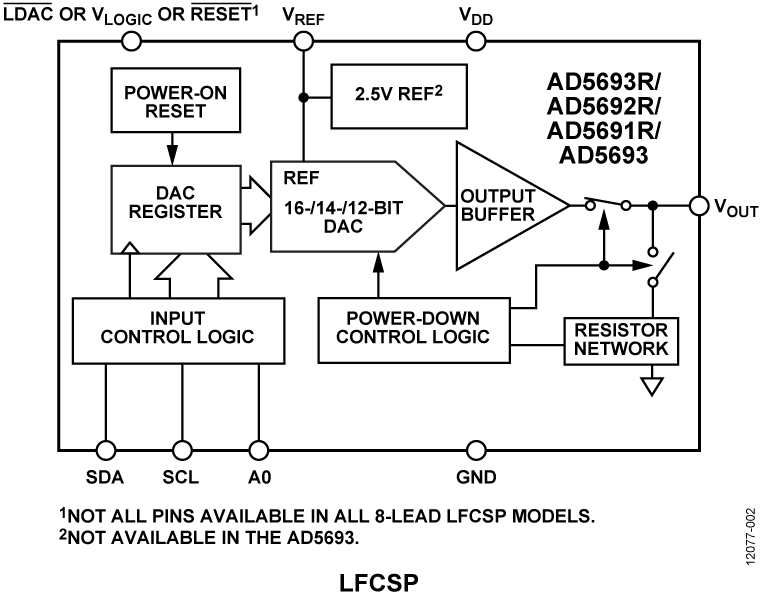

The AD5693R / AD5692R / AD5691R / AD5693, members of the nanoDAC+^® family, are low power, single-channel, 16-/14-/12-bit buffered voltage output DACs. The devices, except the AD5693, include an enabled by default internal 2.5 V reference, offering 2 ppm/°C drift. The output span can be programmed to be 0 V to V_REF or 0 V to 2 × V_REF. All devices operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design. The devices are available in a 2.00 mm × 2.00 mm, 8-lead LFCSP or a 10-lead MSOP.

The internal power-on reset circuit ensures that the DAC register is written to zero scale at power-up while the internal output buffer is configured in normal mode. The AD5693R / AD5692R /  AD5691R / AD5693 contain a power-down mode that reduces the current consumption of the device to 2 μA (maximum) at 5 V and provides software selectable output loads.

The AD5693R / AD5692R / AD5691R / AD5693 use an I²C interface. Some device options also include an asynchronous RESET pin and a V_LOGIC pin, allowing 1.8 V compatibility.

Product Highlights

1. High relative accuracy (INL): ±2 LSB maximum (AD5693R/AD5693, 16-bit).
2. Low drift, 2.5 V on-chip reference: 2 ppm/°C typical and 5 ppm/°C maximum temperature coefficient.

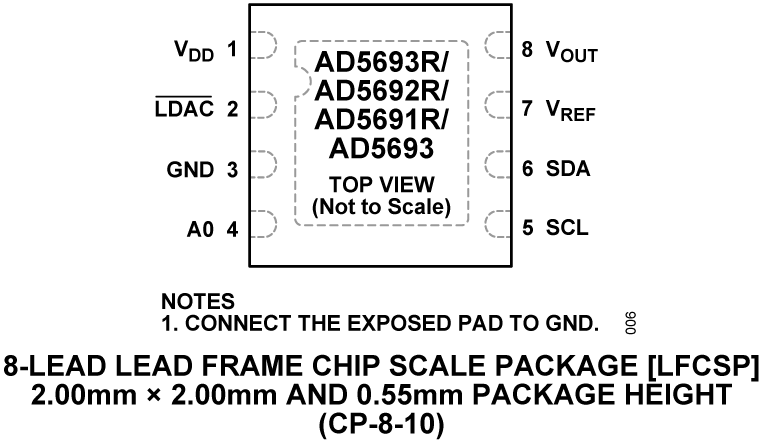

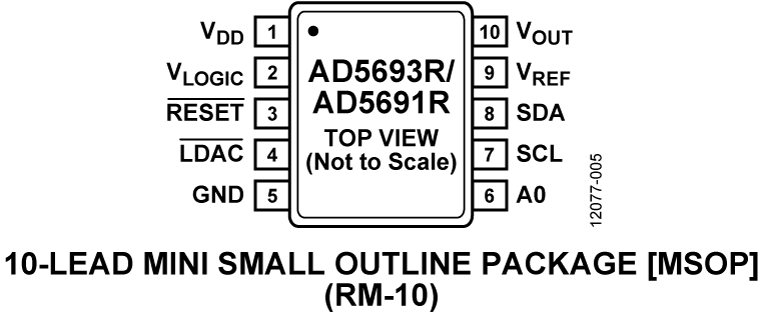

3. 2 mm × 2 mm, 8-lead LFCSP and 10-lead MSOP.

Applications

• Process controls
• Data acquisition systems
• Digital gain and offset adjustment
• Programmable voltage sources
• Optical modules
