ADRF5716

RECOMMENDED FOR NEW DESIGNS

Silicon Digital Attenuator, 2-Bit, 100 MHz to 30 GHz

Analog Devices ADRF5716 Product Info

10 February 2026 6

Features

Ultrawideband frequency range: 0.1 GHz to 30 GHz
Attenuation range: 16 dB steps to 48 dB
Low insertion loss

1.6 dB at 8 GHz
2.2 dB at 18 GHz
2.9 dB at 30 GHz

Attenuation accuracy

± (0.25 + 3.6 % of attenuation state) dB typical up to 8 GHz
± (0.10 + 1.8 % of attenuation state) dB typical up to 18 GHz
± (0.50 + 2.8 % of attenuation state) dB typical up to 30 GHz

Typical step error

± 0.7 dB typical up to 8 GHz
± 1.0 dB typical up to 18 GHz
± 1.5 dB typical up to 30 GHz

High input linearity

P0.1dB insertion loss state: 30 dBm typical
P0.1dB other attenuation states: 30 dBm typical
IIP3 : 50 dBm typical

High RF power handling

30 dBm average
33 dBm peak

RF amplitude settling time (0.1 dB of final RF_OUT): 130 ns
Single-supply operation supported
Tight distribution in relative phase
No low frequency spurious signals
Parallel mode control, CMOS-/LVTTL-compatible

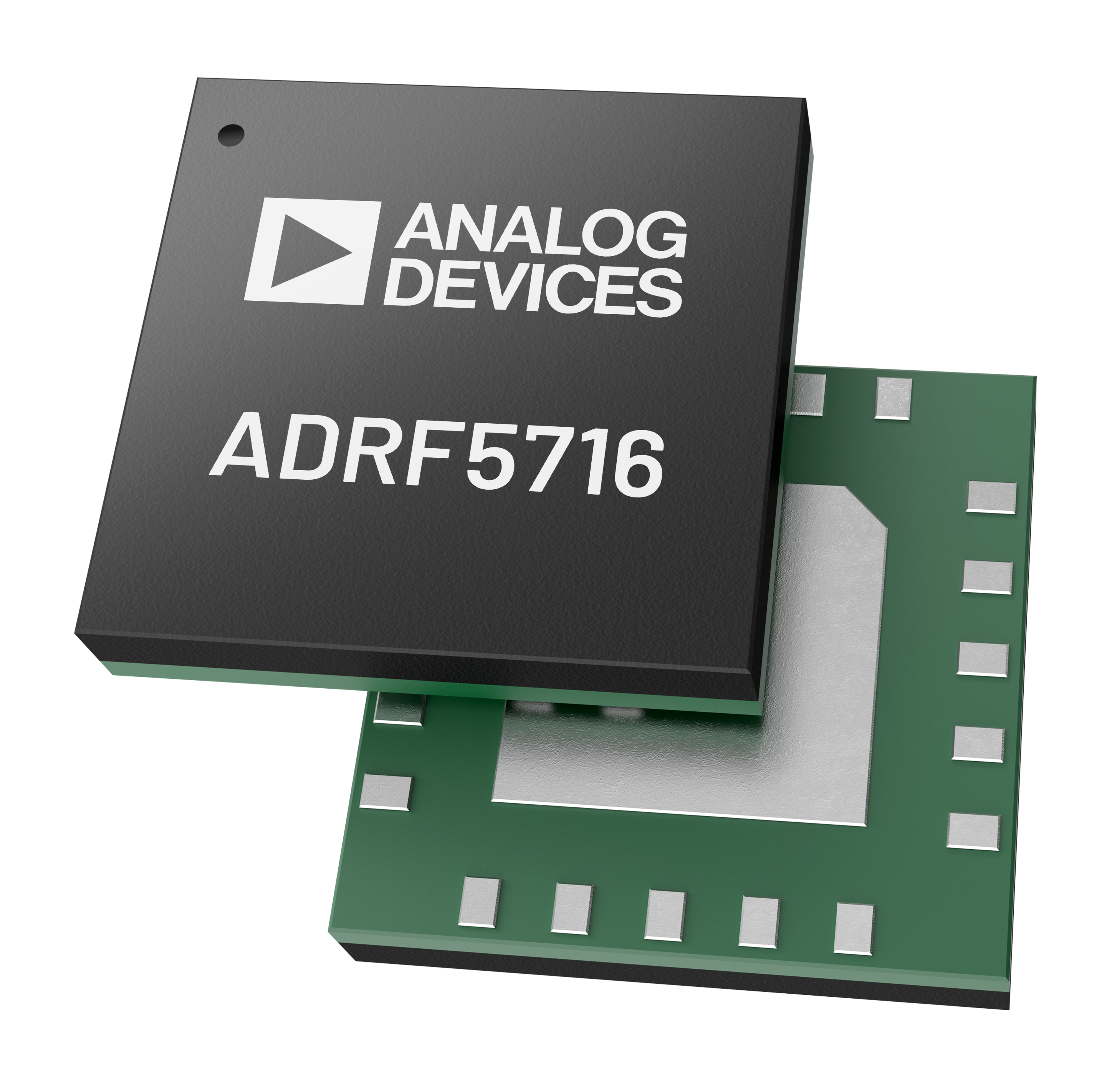

20-terminal, 3 mm × 3 mm, land grid array [LGA]

Part details & applications

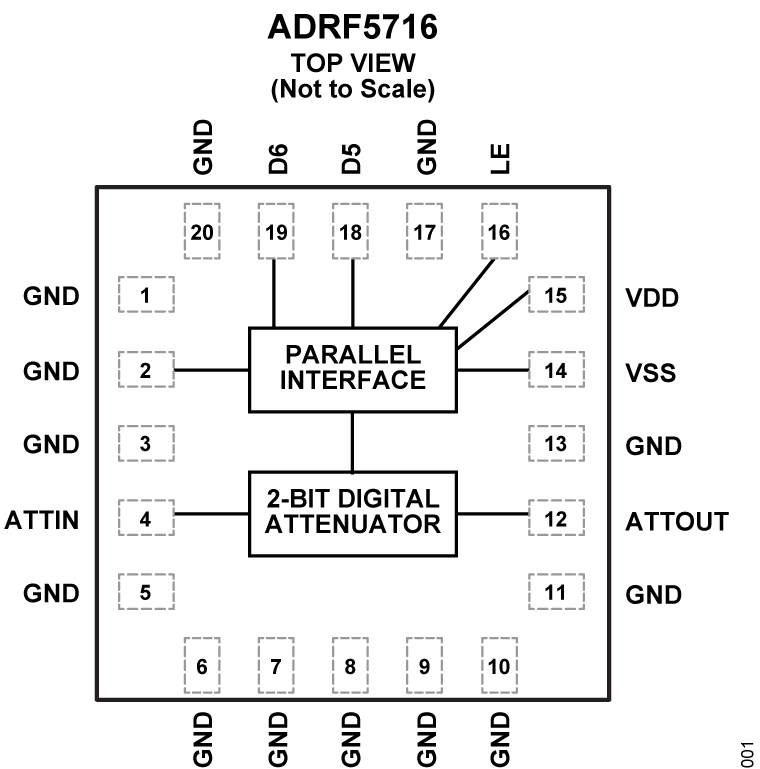

The ADRF5716 is a silicon, 2-bit digital attenuator with 48 dB attenuation control range in 16 dB steps supporting glitch-free operation.

This device operates from 100 MHz to 30 GHz with better than 2.9 dB of insertion loss and better than 1.5 dB attenuation accuracy. The ATTIN and ATTOUT ports of the ADRF5716 have an RF input power handling capability of 30 dBm average and 33 dBm peak for all states.

The ADRF5716 requires a dual-supply voltage of +3.3 V and −3.3 V. The device features parallel mode control, and complementary metal-oxide semiconductor (CMOS)-/low voltage transistor to transistor logic (LVTTL)-compatible controls.

The ADRF5716 can also operate with a single positive supply voltage (V_DD) applied, and the negative supply voltage (V_SS) is tied to ground. See the Theory of Operation section in the data sheet for more details.

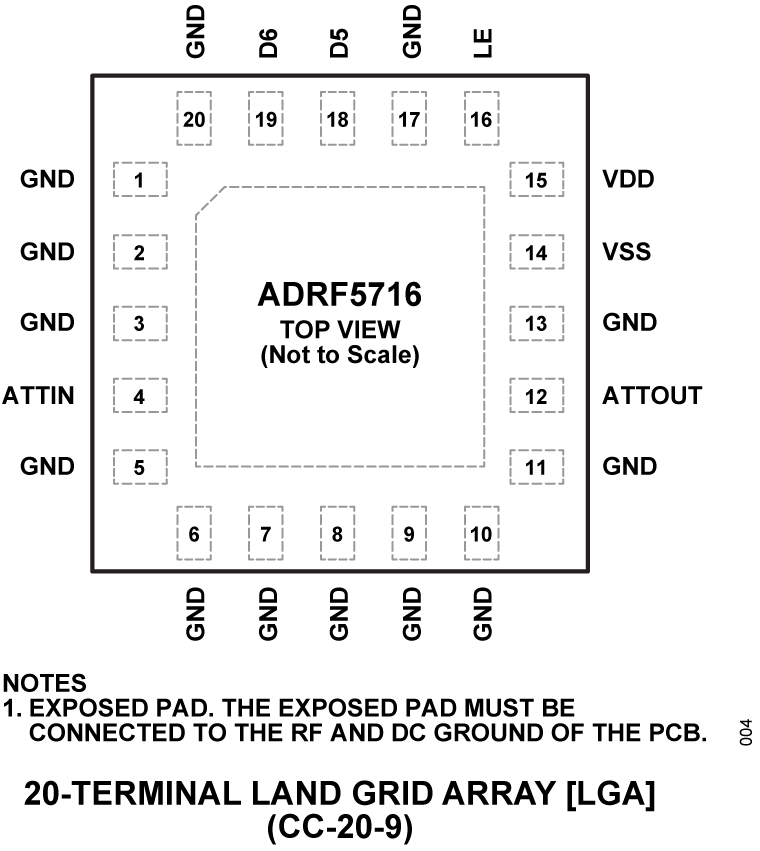

The ADRF5716 RF ports are designed to match a characteristic impedance of 50 Ω. The ADRF5716 comes in a 20-terminal, 3 mm × 3 mm, RoHS compliant, land grid array [LGA] package and operates from −40°C to +105°C.

Applications

Industrial scanners

Test and instrumentation

Cellular infrastructure: 5G millimeter wave

Military radios, radars, electronic counter measures (ECMs)

Microwave radios and very small aperture terminals (VSATs)
