Precision 300MHz to 7GHz RF Detector with Gain and Offset Adjustment

Analog Devices LTC5532 Product Info

10 February 2026 5

Features

  • Temperature Compensated Internal Schottky Diode RF Detector
  • Wide Input Frequency Range: 300MHz to 7GHz*
  • Wide Input Power Range: –32dBm to 10dBm
  • Buffered Detector Output with External Gain Control
  • Precision VOUT Offset Control
  • Low Starting Voltage: 120mV ±35mV for Gain = 2x
  • Wide VCC Range of 2.7V to 6V
  • Low Operating Current: 500µA

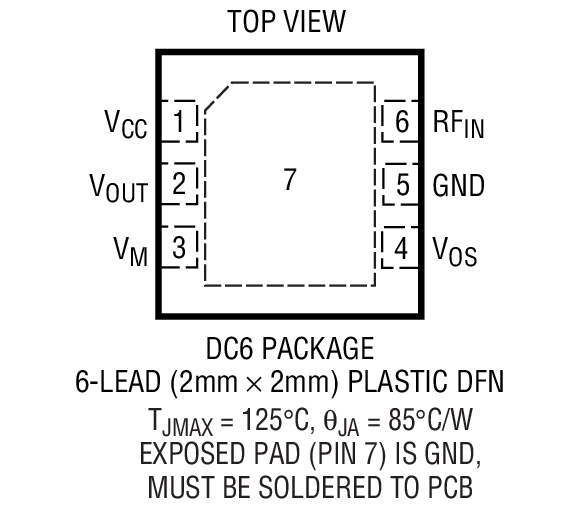

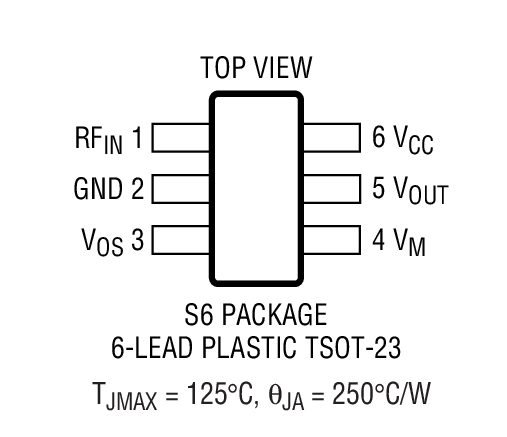

  • Available in a Low Profile (1mm) SOT-23 Package and Tiny 6-Lead (2mm x 2mm) DFN Package

Part details & applications

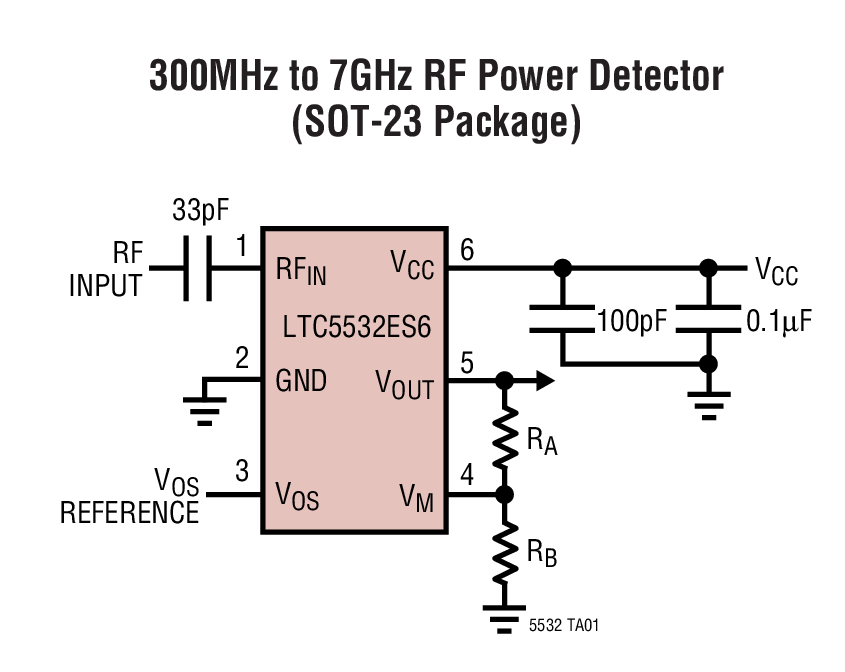

The LTC5532 is an RF power detector for RF applications operating in the 300MHz to 7GHz range. A temperature compensated Schottky diode peak detector and buffer amplifier are combined in a small ThinSOT or (2mm x 2mm) DFN package. The supply voltage range is optimized for operation from a single lithium-ion cell or 3x NiMH.

The RF input voltage is peak detected using an on-chip Schottky diode. The detected voltage is buffered and supplied to the VOUT pin.

The LTC5532 output buffer gain is set via external resistors. The initial starting voltage of 120mV ±35mV can be precisely adjusted using the VOS pin.

The LTC5532 operates with RF input power levels from –32dBm to 10dBm

Applications

  • 802.11a, 802.11b, 802.11g, 802.15
  • Multimode Mobile Phone Products
  • Optical Data Links
  • Wireless Data Modems
  • Wireless and Cable Infrastructure
  • RF Power Alarm
  • Envelope Detector
