ADRF5238

RECOMMENDED FOR NEW DESIGNS

High Isolation, Silicon SPDT, Nonreflective Switch, 0.1GHz to 13GHz

Analog Devices ADRF5238 Product Info

10 February 2026 7

Features

Frequency range: 100MHz to 13GHz
Nonreflective, 50Ω design
Low insertion loss
- 1.0dB to 7GHz typical
- 1.3dB to 13GHz typical
High isolation
- 49dB to 7GHz typical
- 41dB to 13GHz typical
High power handling (average)
- 35dBm through path
- 27dBm terminated path
- 33dBm hot switching (RFC)

High input linearity
- P0.1dB: 36dBm typical
- IP3: 60dBm typical
Fast RF settling time 0.1dB: 220ns
Single positive supply: 3.3V to 5V
All off state control
CMOS-/LVTTL-compatible

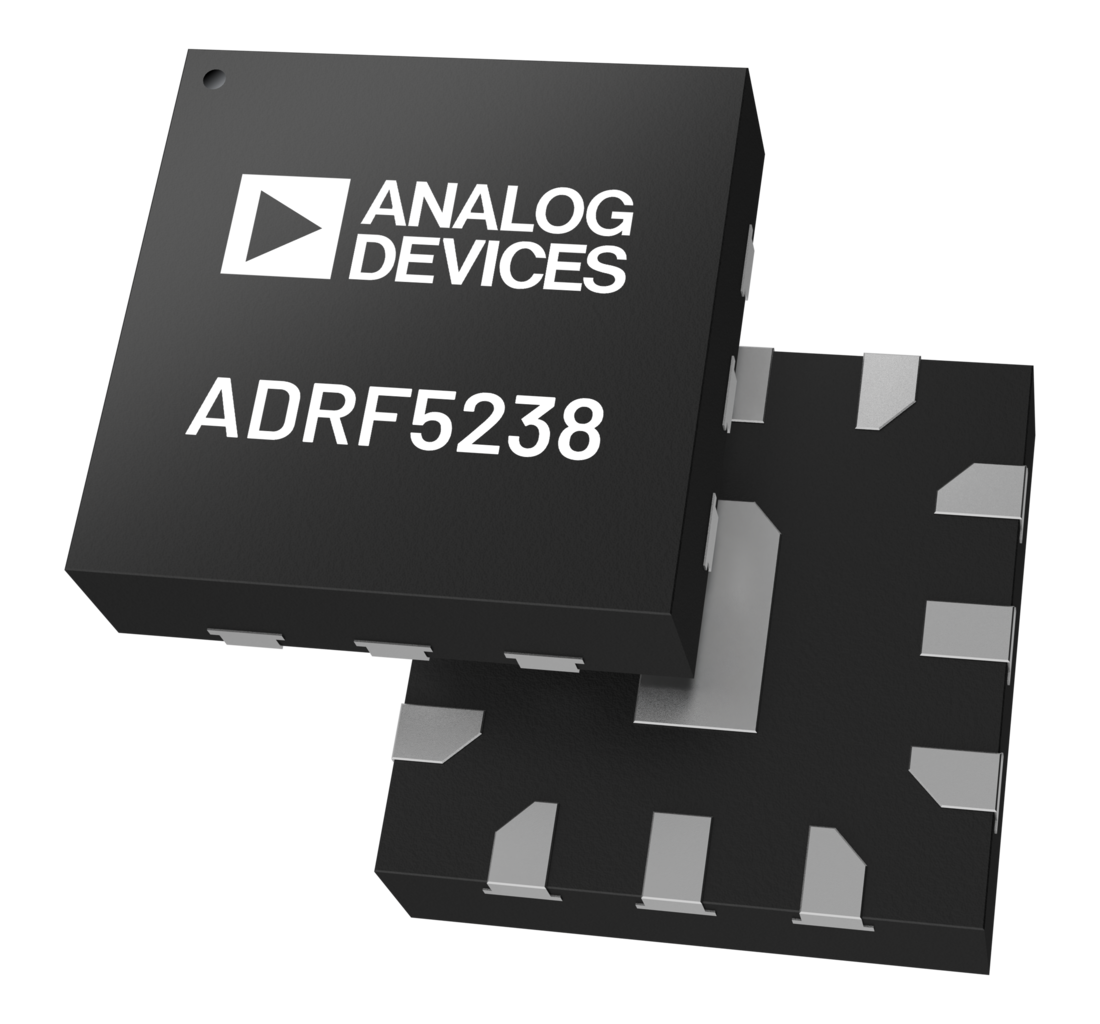

12-lead, 2mm × 2mm, LFCSP_RT

Part details & applications

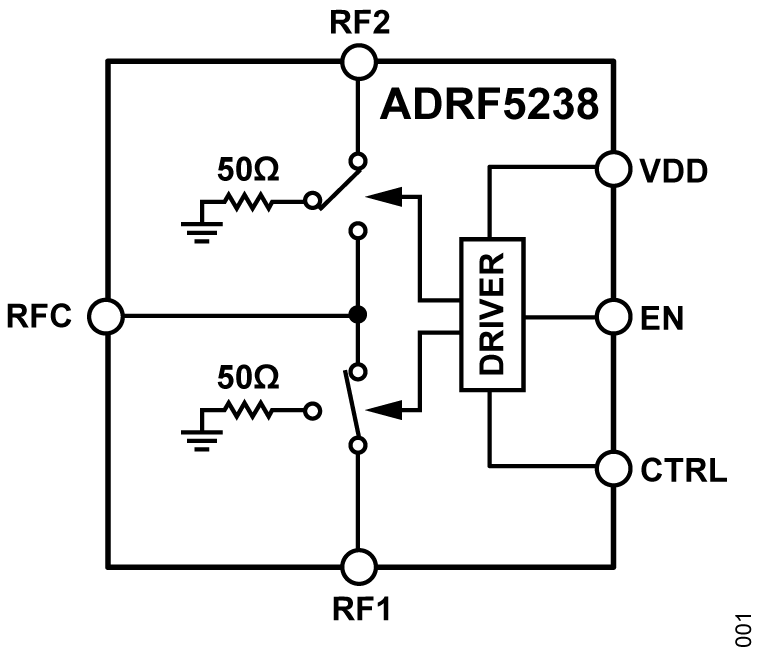

The ADRF5238 is a high isolation, nonreflective, 0.1GHz to 13GHz, silicon, SPDT switch in the silicon process.

The ADRF5238 operates from 0.1GHz to 13GHz with an insertion loss lower than 1.3dB and an isolation higher than 41dB at 13GHz. The ADRF5238 has a nonreflective design and the RF ports are internally terminated to 50Ω. The device has input power handling capability of 35dBm for through path, 27dBm for terminated path and 33dBm hot switching at the RFC pin.

The ADRF5238 requires a single-supply voltage (V_DD) of 3.3V to 5V. The ADRF5238 employs 1.8V complementary metal-oxide semiconductor (CMOS)-compatible and 3.3V low-voltage transistor logic (LVTTL)-compatible controls. The ADRF5238 has an enable control to put both RF channels in an isolation state.

The ADRF5238 comes in a 12-lead, 2mm × 2mm, LFCSP_RT and can operate from −40°C to +105°C.

APPLICATIONS

Cellular infrastructure
Wireless infrastructure
Military radios, radars, and electronic counter measures (ECMs)
Microwave radios and very small aperture terminals (VSATs) v Test instrumentation
