ADMV8502

RECOMMENDED FOR NEW DESIGNS

90 MHz to 225 MHz, Digitally Tunable, Band-Pass Filter

Analog Devices ADMV8502 Product Info

10 February 2026 5

Features

Digitally tunable, octave, band-pass tuning
3 dB bandwidth: 9% ± 2%
Rejection (20 dB): 17% away from f_CENTER
Single chip replacement for discrete filter banks

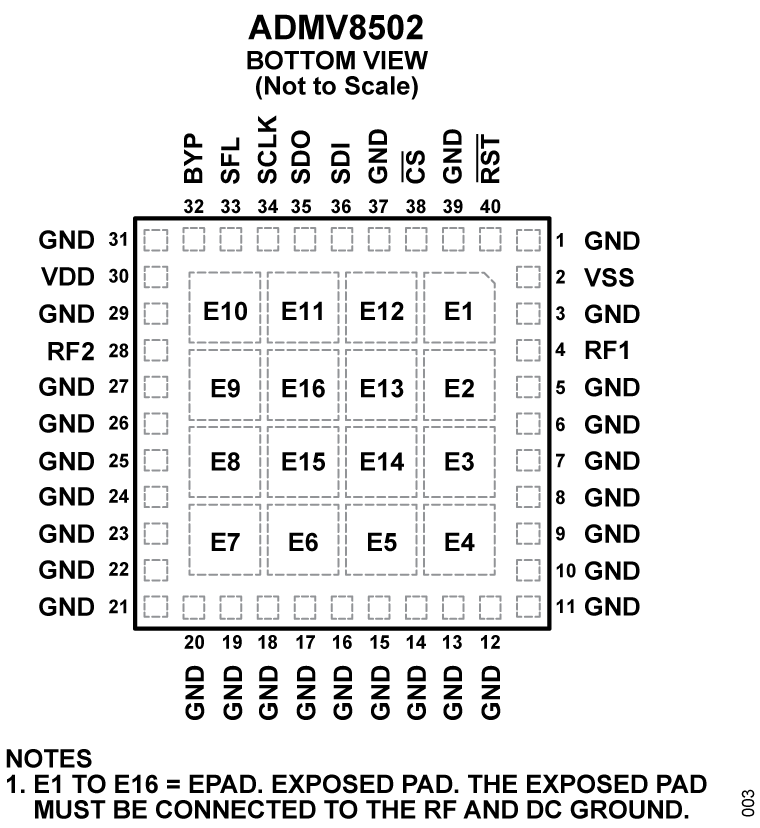

Compact 10 mm × 10 mm LGA package

Part details & applications

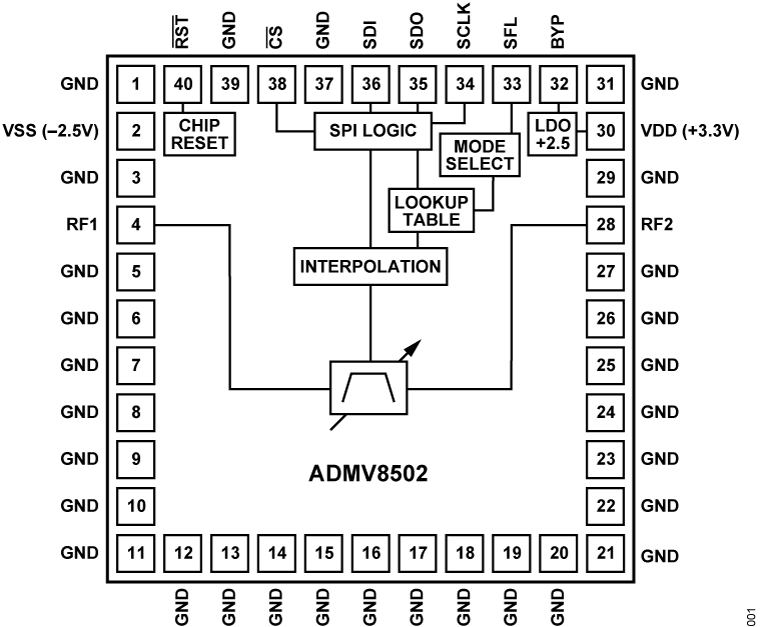

The ADMV8502 is an RF band-pass filter that features a digitally selectable frequency of operation. The filter center frequency (f_CENTER) can be adjusted from 90 MHz to 225 MHz, using an 8-bit value (256 states) that incorporates a patented calibration technique.

The typical 3 dB bandwidth is 9% and adjustability is ±2%. Insertion loss is typically 3.5 dB, and the 20 dB rejection is 17% away from f_CENTER, which is ideally suited for minimizing system interferers.

This tunable filter can be used as a smaller alternative to large switched filter banks and discrete component-based tunable filters, and the ADMV8502 provides a dynamically adjustable solution in advanced communications applications.

APPLICATIONS

Land mobile radios
Test and measurement equipment
Military radars and electronic warfare and electronic countermeasures
Satellite communications
Industrial and medical equipment
