ADIS16550

RECOMMENDED FOR NEW DESIGNS

Autonomous Grade, Six Degrees of Freedom Inertial Sensor

Analog Devices ADIS16550 Product Info

10 February 2026 7

Features

Triaxial, digital gyroscope, ±300°/sec
- ±0.05° (typical) axis to axis misalignment
- ±0.25° (maximum) axis to package misalignment
- 1°/hr in-run bias stability
- 0.13 °/√hr angular random walk
Triaxial, digital accelerometer, ±14 g
- 9 μg in run bias stability
Triaxial, delta angle and delta velocity outputs
Factory calibrated sensitivity, bias, and axial alignment
- Calibration temperature range: −40°C to +85°C

SPI compatible
Programmable operation and control
- Manual bias correction controls
- Digital I/O: data ready, external clock option
- Sample clock options: internal, external, or scaled
- On demand self test of inertial sensors
Single-supply operation: 4.75 V to 5.25 V
1500 g mechanical shock survivability
Operating temperature range: −40°C to +105°C

Part details & applications

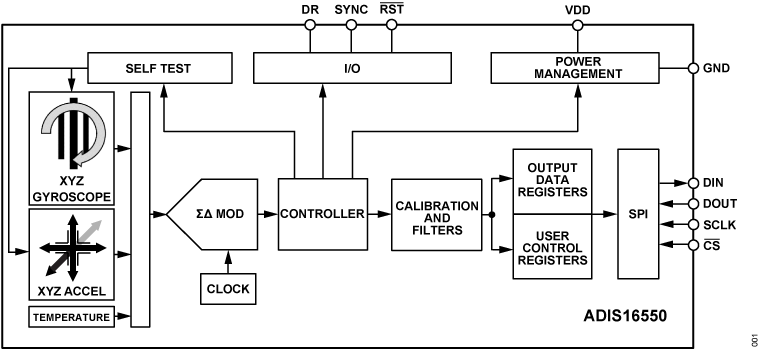

The ADIS16550 is a complete inertial system that includes a triaxis gyroscope and a triaxis accelerometer. Each inertial sensor in the ADIS16550 combines industry leading MEMS only technology with signal conditioning that optimizes dynamic performance. The factory calibration characterizes each sensor for sensitivity, bias, and alignment. As a result, each sensor has its own dynamic compensation formulas that provide accurate sensor measurements.

The ADIS16550 provides a simple, cost-effective method for integrating accurate, multiaxis inertial sensing into industrial systems, especially when compared with the complexity and investment associated with discrete designs. All necessary motion testing and calibration are part of the production process at the factory, greatly reducing system integration time. Tight orthogonal alignment simplifies inertial frame alignment in navigation systems. The serial peripheral interface (SPI) and register structure provide a simple interface for data collection and configuration control.

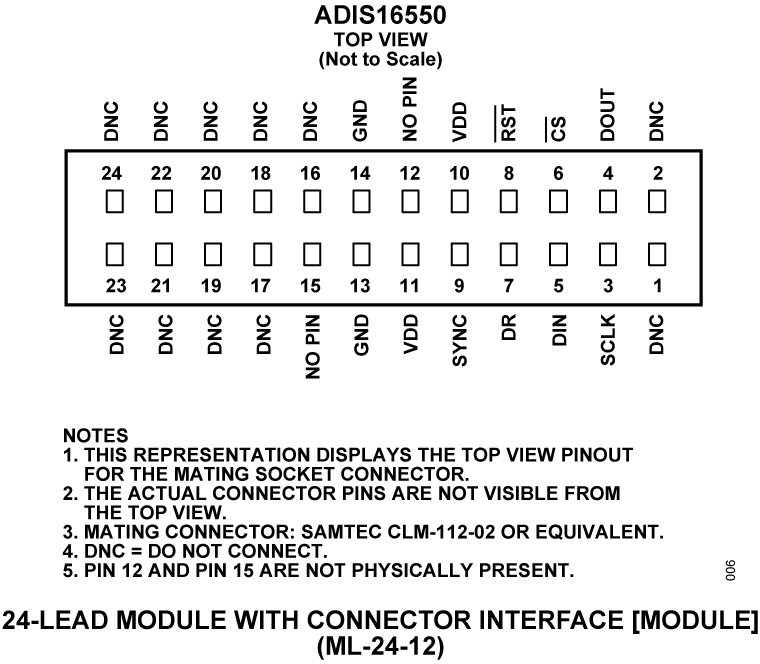

The footprint and connector system of the ADIS16550 enable a simple upgrade from the ADIS16485, ADIS16488A, ADIS16490, ADIS16495, and ADIS16497. The ADIS16550 is available in an aluminum package that is approximately 47 mm × 44 mm × 15 mm and includes a standard connector interface.

APPLICATIONS

Precision instrumentation, stabilization
Guidance, navigation, and control
Precision autonomous machines and robotics
Dead reckoning in global positioning system (GPS) denied environments
