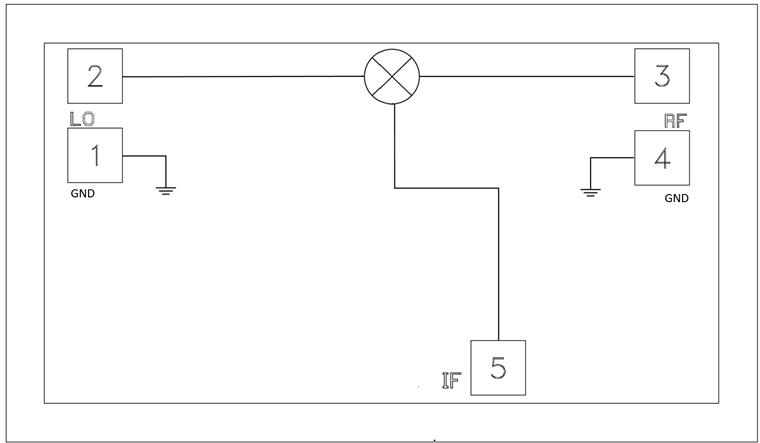

ADH787S

PRODUCTION

Aerospace, GaAs, MMIC, Fundamental Mixer, 3 GHz to 10 GHz.

Analog Devices ADH787S Product Info

10 February 2026 6

Features

Passive Double-Balanced Topology
High LO/RF Isolation: 55 dB Typ.
Low Conversion Loss: 9 dB Typ.

Wide IF Bandwidth: DC – 4 GHz
No External Matching Required
Small Size: 1.37 mm x 0.8 mm x 0.1 mm
Screened in accordance with MIL-PRF-38534, Class K

Part details & applications

The ADH787 is a general purpose double balanced mixer in that can be used as an upconverter or downconverter between 3 GHz and 10 GHz. This mixer is fabricated in a GaAs MESFET process and requires no external components or matching circuitry. The ADH787S provides excellent LO to RF and LO to IF isolation due to optimized balun structures and operates with LO drive level of +17 dBm.

Applications

Microwave Radio
Test Equipment
Sensors
Military & Space
