ADCLK846

RECOMMENDED FOR NEW DESIGNS

1.8 V, 6 LVDS/12 CMOS Outputs Low Power Clock Fanout Buffer

Analog Devices ADCLK846 Product Info

10 February 2026 5

Features

Selectable LVDS/CMOS outputs
Up to 6 LVDS (1.2 GHz) or 12 CMOS (250 MHz) outputs
<16 mW per channel (100 MHz operation)
54 fs integrated jitter (12 kHz to 20 MHz)
100 fs additive broadband jitter

2.0 ns propagation delay (LVDS)
135 ps output rise/fall (LVDS)
65 ps output-to-output skew (LVDS)
Sleep mode
Pin-programmable control
1.8 V power supply

Part details & applications

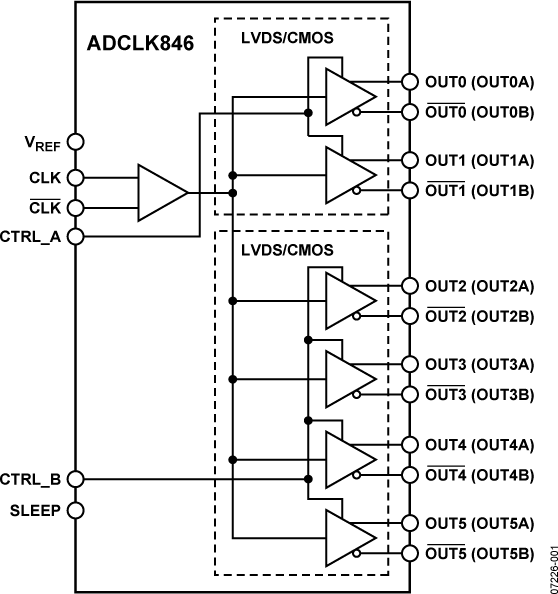

The ADCLK846 is a 1.2 GHz/250 MHz, LVDS/CMOS, fanout buffer optimized for low jitter and low power operation. Possible configurations range from 6 LVDS to 12 CMOS outputs, including combinations of LVDS and CMOS outputs. Two control lines are used to determine whether fixed blocks of outputs are LVDS or CMOS outputs.

The clock input accepts various types of single-ended and differential logic levels including LVPECL, LVDS, HSTL, CML, and CMOS.

Table 8 provides interface options for each type of connection. The SLEEP pin enables a sleep mode to power down the device.

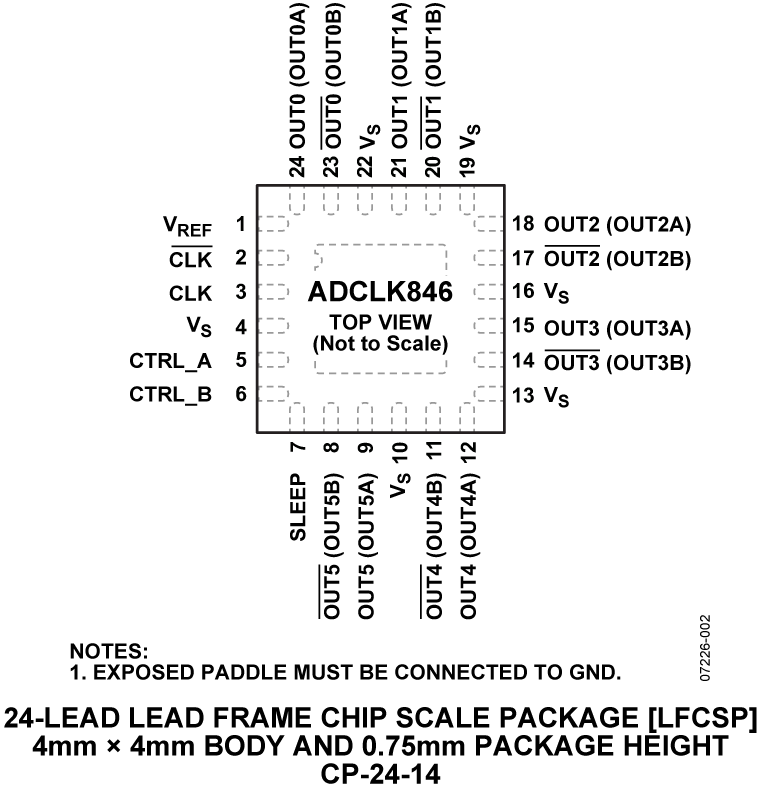

This device is available in a 24-pin LFCSP package. It is specified for operation over the standard industrial temperature range of −40°C to +85°C.

APPLICATIONS

Low jitter clock distribution
Clock and data signal restoration
Level translation
Wireless communications
Wired communications
Medical and industrial imaging
ATE and high performance instrumentation
